Kioti HX9010 vs John Deere 5520 | Side-by-side comparison | ITC Resource Center
Compare Tractors

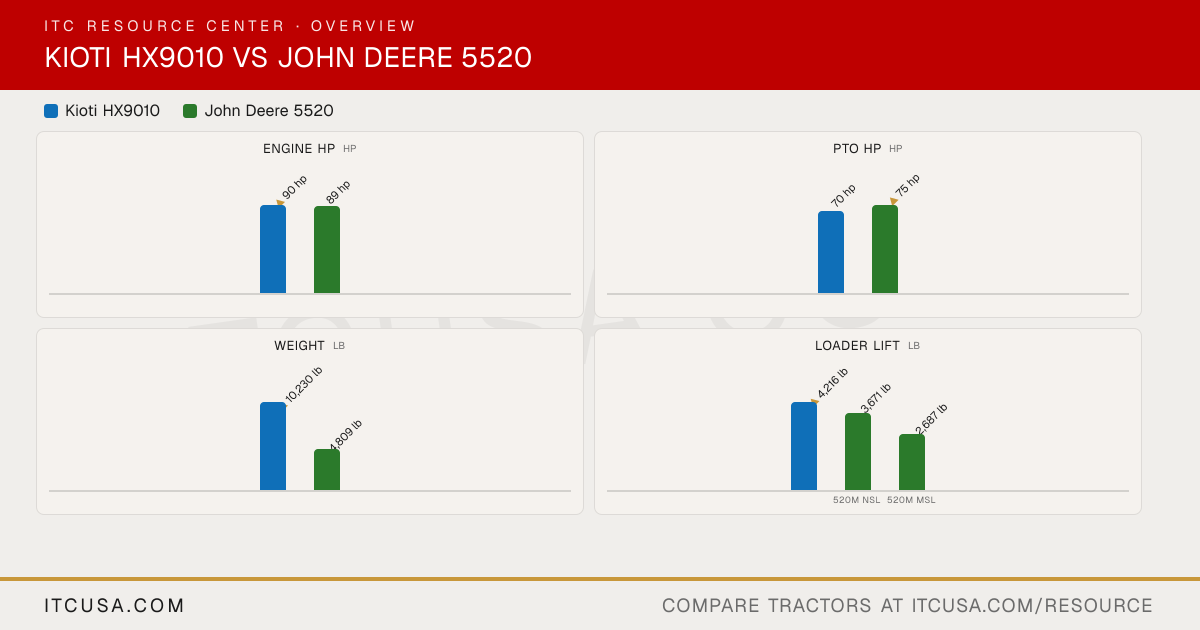

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KiotiHX9010
John Deere5520
Engine Manufacturer
KIOTI
John Deere
Engine Model
4J243TA-TP5B
4045T
Engine Type
4-cylinder, in-line vertical, water-cooled, turbocharged and intercooled CRDI diesel (4J243TA-TP5B)
4-cylinder turbocharged diesel
No. of Cylinders
4
4
Displacement
233.9 in³
278 in³
Rated Engine Speed
2200 rpm
2400 rpm
Engine Power (Gross)
90 hp
89 hp
PTO Power
70 hp
75 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Water-cooled
Liquid-cooled
Air Cleaner
Dry element with evacuator valve
Not Published
Fuel System
CRDI
Not Published
Alternator
Not Published
40 A
Pump Type
Gear
Tandem gear pump
Implement Flow
19.8 gpm
15.9 gpm
Steering Flow
12.2 gpm
6.6 gpm
Total Hydraulic Flow
32 gpm
22.5 gpm (15.9 + 6.6, computed)
Overall Hydraulic Pump Flow
32 gpm
Not Published
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
15.9 gpm
No. of Standard Remote Valves
3
2 to 3 rear
No. of Optional Remote Valves
4th remote valve
Not Published
Fuel Tank Capacity
47.6 gal
22 gal (straddle mount, early model); 25 gal (straddle mount, late model); 27 gal (IOOS or cab, small filler neck); 29.5 gal (IOOS or cab, large filler neck)
Coolant Capacity
4.6 gal
11.4 qt
Crankcase Capacity
3.9 gal
9 qt
Transmission / Hydraulic System Capacity
20.34 gal
10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch)
