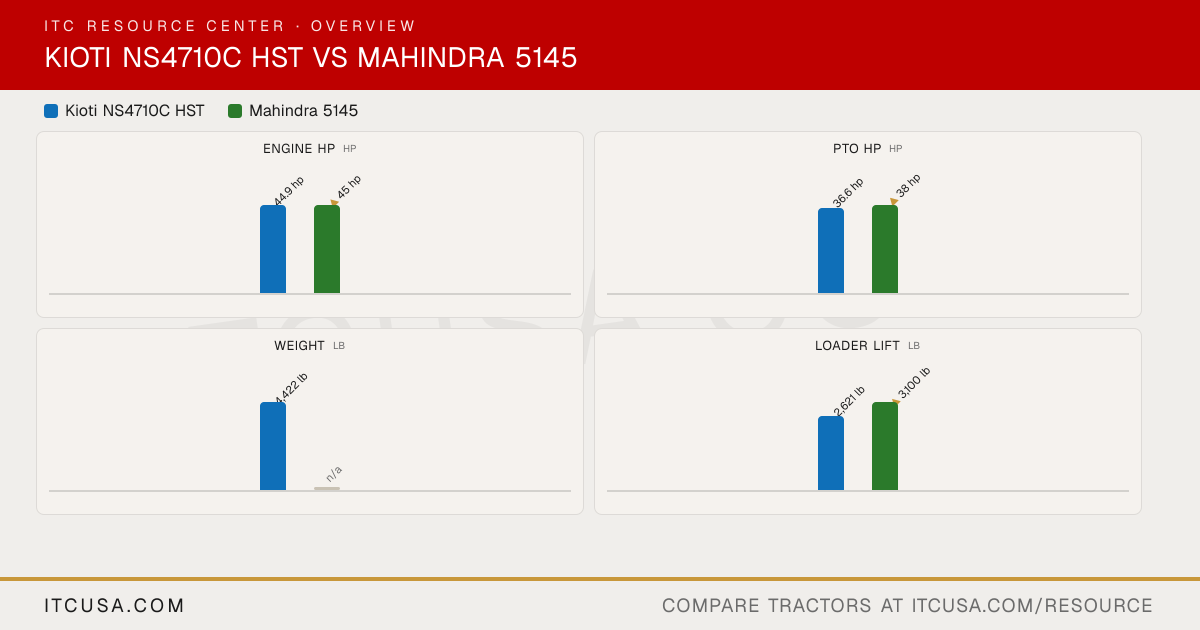

▶ EngineEngine Manufacturer KIOTI (Daedong) Mahindra Engine Model 3HT-S4TH45A DH45 Engine Type KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI Four-stroke, naturally aspirated, direct injection, water cooled diesel No. of Cylinders 3 4 Displacement 111.4 in³ 166.2 in³ Rated Engine Speed 2600 rpm 2300 rpm Engine Power (Gross) 44.9 hp 45 hp PTO Power 36.6 hp 38 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Water-cooled Air Cleaner Dry type element Not Published Fuel System Common Rail Direct Injection (CRDI) Direct injection Alternator Not Published 55 A ▶ HydraulicsPump Type Gear Not Published Implement Flow Not Published 8.71 gpm Steering Flow Not Published 4.62 gpm Total Hydraulic Flow 16.5 gpm 13.3 gpm Overall Hydraulic Pump Flow 16.5 gpm 13.3 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 1 No. of Optional Remote Valves 1 1 ▶ Fluid CapacityFuel Tank Capacity 13.2 gal 17.1 gal Coolant Capacity 2.03 gal Not Published Crankcase Capacity 1.95 gal Not Published Transmission / Hydraulic System Capacity 9.51 gal Not Published Front Axle Fluid Capacity 2.25 gal Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm Mid-PTO Availability Optional (2,000 rpm) Not Published Category, 3-Point Hitch Category I CAT I & II with telescopic stabilizers & flex links Hitch Lift Capacity 2,940 lb Not Published Hitch Lift Capacity (at 24”) 2,493 lb 3748 lb Lift Control Type Position with Draft Control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic Full synchromesh with forward/reverse synchro shuttle & constant mesh range No. of Speeds 3-Range 12F / 12R Max Travel Speed (Forward) 17.5 mph 17.9 mph Max Travel Speed (Reverse) 12.2 mph Not Published Clutch Not Published Dual dry with cerametallic lining Differential Lock & Limited Slip Options Mechanical differential lock: rear standard Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Hydrostatic power steering with tilt steering wheel Brakes Wet disc type Fully-enclosed, 7-in diameter, dry disc Seat Suspension & Adjustability Deluxe suspension seat Adjustable seat with contoured cushions, armrests and a soft-coil suspension Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 136.4 in 136.6 in Overall Width 70.4 in 74.8 in Wheelbase 75.5 in 77.9 in Ground Clearance 11.8 in 15.2 in Min. Turn Radius without Brakes 11.2 ft (with brake applied) 10.8 ft Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 93.7 in Not Published ▶ WeightTractor Weight (Base) 4,422 lb 5390 lb Weight with ROPS and Loader Not Published 6,690 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural or R4 Industrial R1 Agricultural - Front 8-16 9.5 x 20 R1 Agricultural - Rear 13.6-24 14.9 x 28 R3 Turf - Front 29-12.5-15 Not Published R3 Turf - Rear 21.5L-16.1 Not Published R4 Industrial - Front 10-16.5 10.5/80 x 18 R4 Industrial - Rear 14.9-24 16.9 x 24 ▶ Loader & AttachmentsQuick Attach Loader System Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Skid-steer style quick-attach coupler Loader Model KL5810 5155-4L (front loader); 65B (rear backhoe) Loader Lift Height KL5810: 106.3 in (to pivot pin) 5155-4L: 122 in Loader Lift Capacity (Full Height) KL5810: 2,621 lb (at pivot pin, max height) 5155-4L: 3,100 lb Loader Breakout Force KL5810: 3,896 lb (at pivot pin) 5155-4L: 5,200 lb ▶ WarrantyWarranty Length & Coverage Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor 5-year limited powertrain warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
