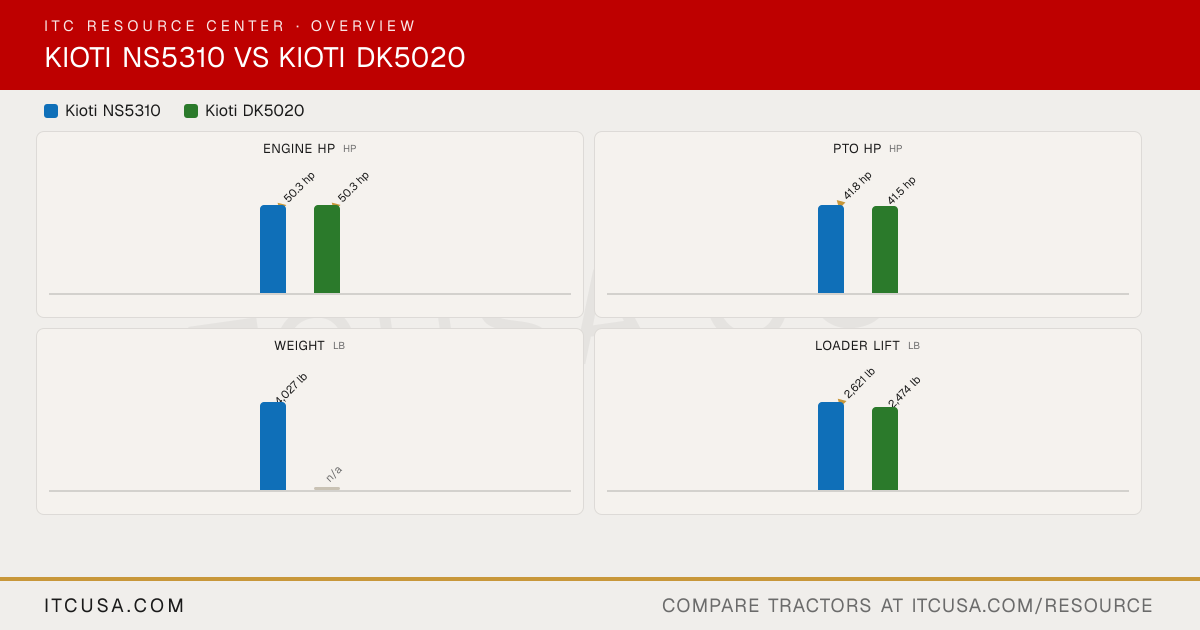

▶ EngineEngine Manufacturer KIOTI (Daedong) KIOTI (Daedong) Engine Model 3HT-S4TH50A 3HT-TM4B Engine Type KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI 3-cylinder, liquid-cooled diesel No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 50.3 hp 50.3 hp PTO Power 41.8 hp 41.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry type element Not Published Fuel System Common Rail Direct Injection (CRDI) Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Gear Gear Implement Flow 9.61 gpm 9.62 gpm Steering Flow 6.87 gpm 4.94 gpm Total Hydraulic Flow 16.5 gpm 14.56 gpm Overall Hydraulic Pump Flow 16.5 gpm 14.56 gpm Hydraulic System Type Open Center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 0 (2 optional) No. of Optional Remote Valves 1 2 ▶ Fluid CapacityFuel Tank Capacity 13.2 gal 11.9 gal Coolant Capacity 2.03 gal 0.89 gal Crankcase Capacity 1.95 gal 1.95 gal Transmission / Hydraulic System Capacity 9.51 gal 11.4 gal Front Axle Fluid Capacity 2.25 gal 1.48 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional (2,000 rpm) No mid PTO (N/A) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,940 lb 2,998 lb Hitch Lift Capacity (at 24”) 2,493 lb 2,716 lb Lift Control Type Position with Draft Control Position ▶ Transmission & DrivetrainTransmission Type Hydrostatic Synchronized shuttle No. of Speeds 3-Range 8F/8R Max Travel Speed (Forward) 17.5 mph 16.71 mph Max Travel Speed (Reverse) 12.2 mph 16.28 mph Clutch Not Published Dry single stage Differential Lock & Limited Slip Options Mechanical differential lock: rear standard Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Hydrostatic power steering Brakes Wet disc type Wet multi-disc Seat Suspension & Adjustability Deluxe suspension seat Deluxe suspension seat Front Axle Type Not Published Mechanical 4WD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,655 lb (max. drawbar vertical load) ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 136.4 in 124.3 in Overall Width 67.1 in 62.8 in Wheelbase 75.5 in 71.3 in Ground Clearance 13.4 in 14.5 in Min. Turn Radius without Brakes 11.0 ft (with brake applied) 102.8 in (with brake applied) Height to Top of ROPS 98.4 in 96.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 4,027 lb 3,373 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial, R14 R1 Agricultural - Front 8-16 8-16 R1 Agricultural - Rear 13.6-24 13.6-24 R3 Turf - Front 29-12.5-15 29-12.5-15 R3 Turf - Rear 21.5L-16.1 21.5L-16.1 R4 Industrial - Front 10-16.5 10-16.5 R4 Industrial - Rear 14.9-24 14.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Quick attach (QA) bucket, 66 in or 72 in Loader Model KL5810 KL5520 Loader Lift Height KL5810: 106.3 in (to pivot pin) KL5520: 107.7 in Loader Lift Capacity (Full Height) KL5810: 2,621 lb (at pivot pin, max height) KL5520: 2,474 lb Loader Breakout Force KL5810: 3,896 lb (at pivot pin) KL5520: 3,895 lb ▶ WarrantyWarranty Length & Coverage Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
