Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

4 of 4 selected

—

KiotiNX4510

—

KiotiNX5010

—

KiotiNX5510

—

KiotiNX6010

Comparison loaded for 4 tractors.

Maximum 4 tractors. Remove one to compare a different model.

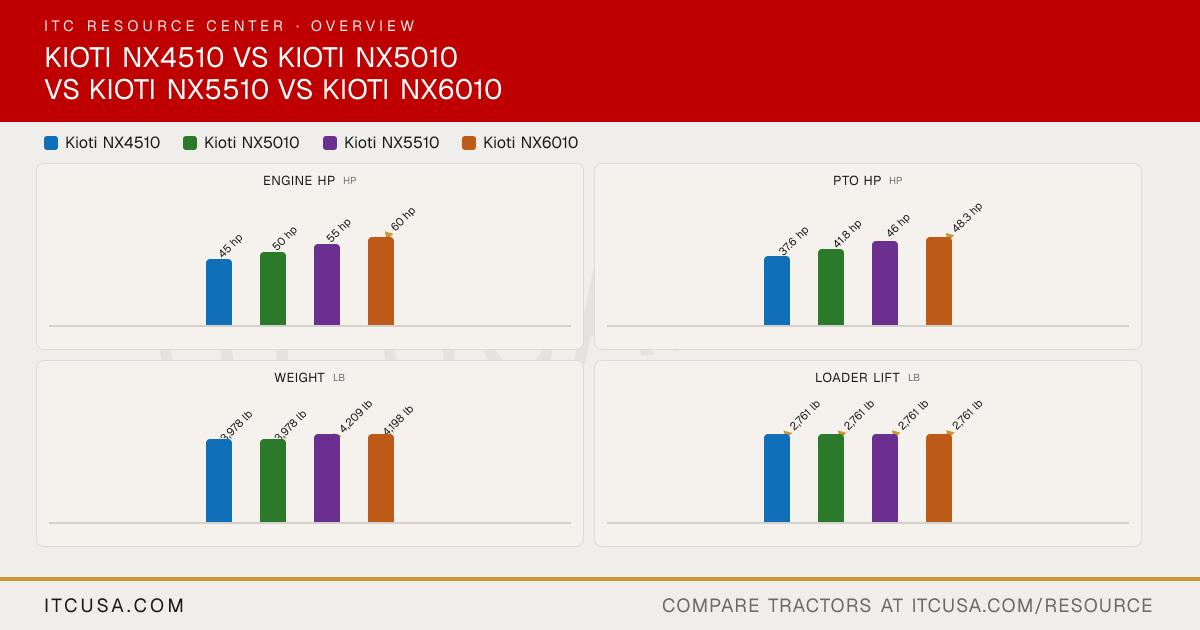

The headline numbers at a glance.

Kioti NX4510Kioti NX5010Kioti NX5510Kioti NX6010

Engine HPhp

45 hp

50 hp

55 hp

▲60 hp

PTO HPhp

37.6 hp

41.8 hp

46 hp

▲48.3 hp

Weightlb

3,978 lb

▲4,209 lb

4,198 lb

Loader Liftlb

▲2,761 lb

3-Pt Lift (24 in)lb

▲3,177 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX4510	KiotiNX5010	KiotiNX5510	KiotiNX6010


PTO Power	37.6 hp	41.8 hp	46 hp	48.3 hp
Alternator	Not Published	Not Published	Not Published	Not Published
Air Cleaner	Not Published	Not Published	Not Published	Not Published
Engine Type	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³	111.4 in³	111.4 in³
No. of Cylinders	3	3	3	3
Rated Engine Speed	2600 rpm	2600 rpm	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Water-cooled	Water-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	45 hp	50 hp	55 hp	60 hp
Engine Emissions Constraints	Tier 4	Tier 4	Tier 4	Tier 4

Weight with ROPS and Loader	3,978 lb	3,978 lb	4,209 lb	4,198 lb
Weight with Cab and Loader	Not Applicable	Not Applicable	Not Applicable	Not Applicable

Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)

Pump Type	Gear	Gear	Gear	Gear
Steering Flow	8.2 gpm	8.2 gpm	8.2 gpm	8.2 gpm
Implement Flow	8.2 gpm	8.2 gpm	8.2 gpm	9.6 gpm
Total Hydraulic Flow	16.50 gpm	16.50 gpm	16.50 gpm	17.90 gpm
Hydraulic System Type	Open Center	Open Center	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published	Not Published	Not Published
Overall Hydraulic Pump Flow	16.50 gpm	16.50 gpm	16.50 gpm	17.90 gpm
No. of Optional Remote Valves	1	1	1	1
No. of Standard Remote Valves	1	1	1	1

PTO Rear	540 rpm	540 rpm	540 rpm	540 rpm
PTO Type	Independent	Independent	Independent	Independent
Lift Control Type	Position with Draft Control	Position with Draft Control	Position with Draft Control	Position with Draft Control
Hitch Lift Capacity	3,177 lbs (at 24 in)	3,177 lbs (at 24 in)	3,177 lbs (at 24 in)	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional (2,000 rpm)	Optional (2,000 rpm)	Optional (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I	Category I	Category I & II
Hitch Lift Capacity (at 24”)	3,177 lbs	3,177 lbs	3,177 lbs	3,177 lbs

R3 Turf - Rear	21.5lx16.1	21.5lx16.1	21.5lx16.1	21.5lx16.1
R3 Turf - Front	29x12.5-15	29x12.5-15	29x12.5-15	29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9-24	14.9-24	17.5-24	17.5-24
R4 Industrial - Front	10-16.5	10-16.5	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24	13.6-28	13.6-28
R1 Agricultural - Front	8.0-16	8.0-16	9.5-18	9.5-16

Coolant Capacity	2.0 gal	2.0 gal	2.0 gal	2.0 gal
Crankcase Capacity	1.58 gal	1.58 gal	1.58 gal	1.58 gal
Fuel Tank Capacity	14.8 gal	14.8 gal	14.8 gal	14.8 gal
Front Axle Fluid Capacity	1.8 gal	1.8 gal	1.8 gal	1.8 gal
Transmission / Hydraulic System Capacity	14.53 gal	14.53 gal	14.53 gal	11.89 gal

Loader Lift Height	108.3 in	108.3 in	108.3 in	108.3 in
Loader Breakout Force	3,727 lb	3,727 lb	3,727 lb	3,727 lb
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	2,761 lb	2,761 lb	2,761 lb	2,761 lb

Clutch	Dry Type Single Stage	Dry Type Single Stage	Dry Type Single Stage	None
No. of Speeds	24X24	24X24	24X24	3 Range
Transmission Type	Synchro Shuttle	Synchro Shuttle	Synchro Shuttle	Hydrostatic
Max Travel Speed (Forward)	15.71 mph	15.71 mph	17.35 mph	18.26 mph
Max Travel Speed (Reverse)	13.96 mph	13.96 mph	15.42 mph	18.26 mph
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Differential Lock: Rear (Standard)	Differential Lock: Rear (Standard)	Differential Lock: Rear (Standard)

Brakes	Wet Multi Disc	Wet Multi Disc	Wet Multi Disc	Wet Multi Disc
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published	Not Published	Not Published
Front Axle Type	Not Published	Not Published	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published	Not Published	Not Published
Front Axle Rating	Not Published	Not Published	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable Seat	Adjustable Seat	Adjustable Seat	Adjustable Seat

Wheelbase	75.6 in	75.6 in	75.6 in	75.6 in
Overall Width	65.6 in	65.6 in	65.6 in	65.6 in
Ground Clearance	13.7 in	13.7 in	15.7 in	15.7 in
Height to Top of ROPS	103.1 in	103.1 in	103.1 in	103.1 in
Height to Top of Cab Model	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published	Not Published	Not Published
Min. Turn Radius without Brakes	9.81 ft (2.99 m)	9.81 ft (2.99 m)	9.97 ft (3.04 m)	9.97 ft (3.04 m)
Overall Length with 3-Point Hitch	139.6 in	139.6 in	139.6 in	139.6 in

Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet
