Kioti NX6010 vs John Deere 4520 | Side-by-side comparison | ITC Resource Center
Compare Tractors

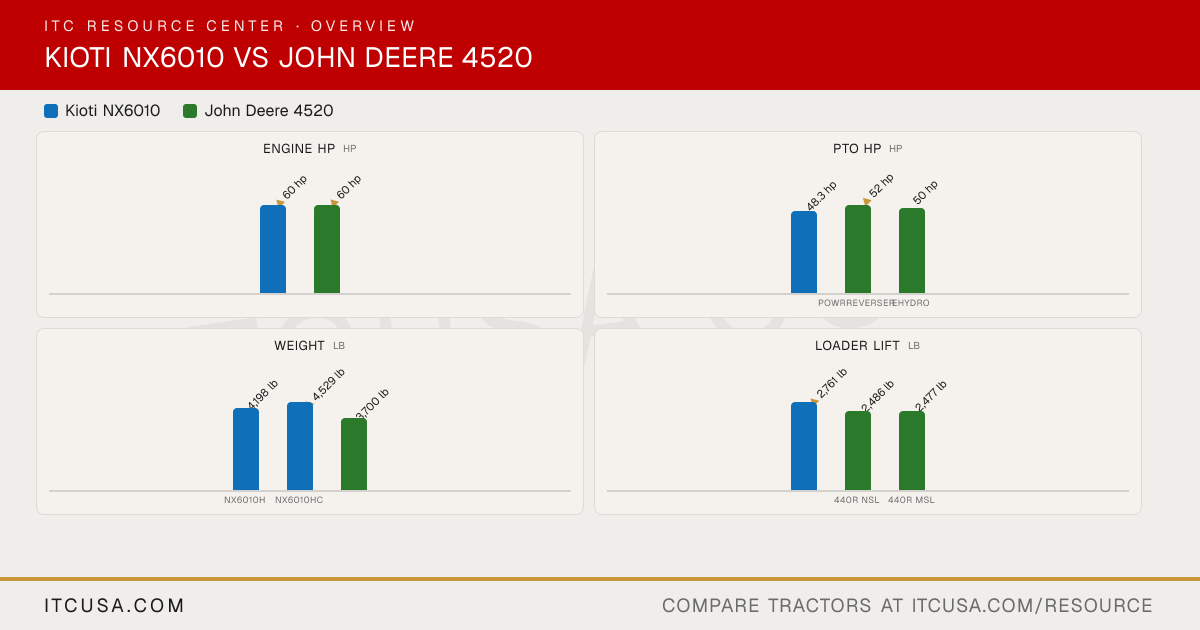

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating
Not Published
3,528 lb
Drawbar Capacity
1,655 lb (max. drawbar vertical load)
1,103 lb
Overall Width
65.7 in
65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
Wheelbase
75.6 in
71.5 in
Ground Clearance
15.7 in
Not Published
Min. Turn Radius without Brakes
10.0 ft
Not Published
Height to Top of ROPS
103.1 in
97.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
94.1 in
92.4 in
Overall Length
139.6 in (with 3-point hitch)
128.2 in (with 3-point hitch)
Tractor Weight (Base)
NX6010H: 4,198 lb (with AG tires); NX6010HC: 4,529 lb (with AG tires)
3,700 lb (open station); 4,345 lb (cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Agricultural, Turf, Industrial
R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Agricultural - Front
9.5-16
8.00-16
R1 Agricultural - Rear
16.9-24
13.6-28
R3 Turf - Front
29-12.5-15
27x10.5-15
R3 Turf - Rear
21.5L-16.1
44x18.00-20
R4 Industrial - Front
10-16.5
10.00-16.5
R4 Industrial - Rear
17.5-24
17.5L-24
Quick Attach Loader System
Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Not Published
Loader Model
KL6010
440R (NSL and MSL)
Loader Lift Height
KL6010: 108.3 in (to pivot pin)
440R NSL: 109 in; 440R MSL: 109 in
Loader Lift Capacity (Full Height)
KL6010: 2,761 lb (at pivot pin, max height)
440R NSL: 2,486 lb; 440R MSL: 2,477 lb (to maximum height at pivot pin)
