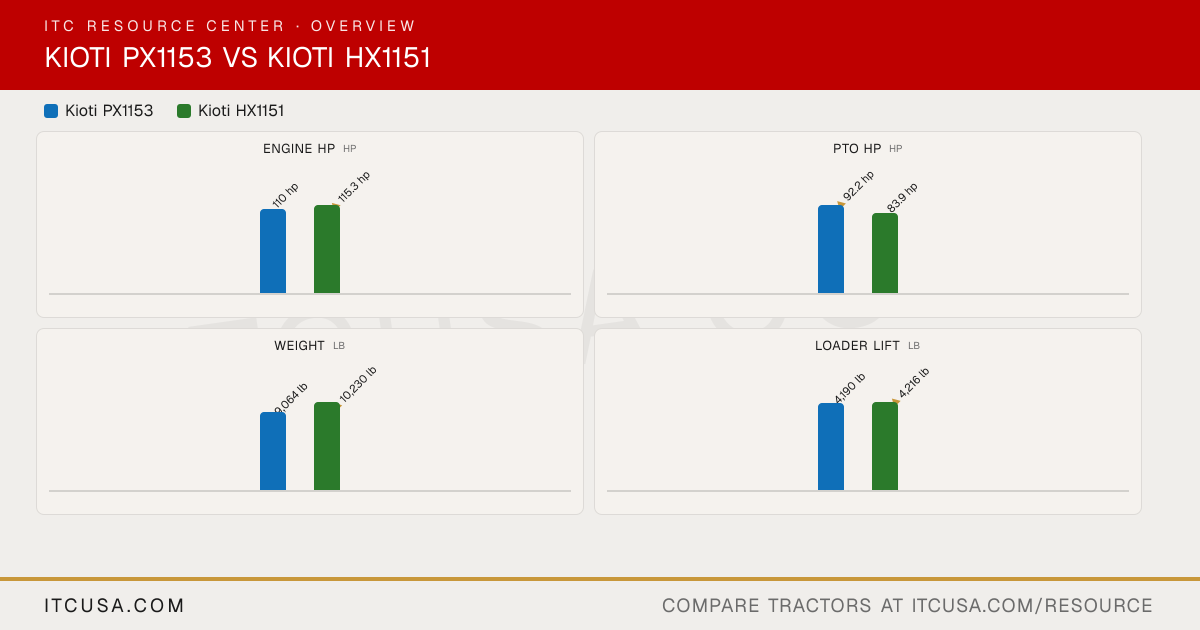

▶ EngineEngine Manufacturer Doosan KIOTI (Daedong) Engine Model DL03-LEA07 4J243TA-TP5B Engine Type 4-cylinder, in-line vertical, water-cooled diesel In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4J243TA-TP5B) No. of Cylinders 4 4 Displacement 208 in³ 233.9 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 110 hp 115.3 hp PTO Power 92.2 hp 83.9 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Water-cooled Air Cleaner Dual air cleaner Dry element with evacuator valve Fuel System Not Published Common Rail Direct Injection (CRDI) Alternator Not Published Not Published ▶ HydraulicsPump Type Gear Gear Implement Flow Not Published 19.8 gpm Steering Flow Not Published 12.2 gpm Total Hydraulic Flow 31.5 gpm 32 gpm Overall Hydraulic Pump Flow 31.5 gpm 32 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 3 No. of Optional Remote Valves 1 (third valve) 1 ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 47.6 gal Coolant Capacity Not Published 4.7 gal Crankcase Capacity Not Published 3.9 gal Transmission / Hydraulic System Capacity Not Published 20.34 gal Front Axle Fluid Capacity Not Published 2.6 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 / 1000 rpm 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published 8,079 lb Hitch Lift Capacity (at 24”) 8,002 lb 8,002 lb Lift Control Type Position, draft, mixed control Electronic control ▶ Transmission & DrivetrainTransmission Type Synchronized shuttle, power shuttle type Power Shuttle w/ Hi-Lo Shift No. of Speeds 32F/32R 24 forward / 24 reverse Max Travel Speed (Forward) 24.87 mph 23.83 mph Max Travel Speed (Reverse) 24.69 mph 23.67 mph Clutch Wet multi disc Wet Multi Disc Differential Lock & Limited Slip Options Rear differential lock (standard) Mechanical rear differential lock (standard); front limited-slip differential ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Power Steering Brakes Wet disc Wet Multi Disc Seat Suspension & Adjustability Fully adjustable suspension swivel seat (deluxe cab) Heated air suspension seat, 20 degree swivel both directions, adjustable fore/aft Front Axle Type 4WD, electric/hydraulic engagement 4WD with outboard planetary final drives and limited-slip differential Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Max. Drawbar vertical load: 3,307 lb; Max. Trailer loading weight: 9,921 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 168.9 in 170.8 in Overall Width 88.6 in 88.6 in Wheelbase 93.3 in 94.9 in Ground Clearance 19.5 in 18.9 in Min. Turn Radius without Brakes Not Published 12.7 ft (with brake applied) Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 109 in 111.9 in ▶ WeightTractor Weight (Base) 9,064 lb (with cab and ag tires; cab is standard) 10,230 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural: 13.6-24 front, 18.4-34 rear R1 Agricultural (bias 13.6-24 / 18.4-34, radial 13.6R-24 / 18.4R-34); R14 radial (340/85R24 / 460/85R34) R1 Agricultural - Front 13.6-24 13.6-24 R1 Agricultural - Rear 18.4-34 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick attach (QA) bucket, 90 in; dual lever quick attach, built-in parking stand KL1155: quick-attach system with built-in parking stand; single-lever joystick control with float; bucket level indicator Loader Model KL1153 KL1155 Loader Lift Height KL1153: 143.3 in KL1155: 150.6 in (to pivot pin) Loader Lift Capacity (Full Height) KL1153: 4,190 lb KL1155: 4,216 lb (at pivot pins) Loader Breakout Force KL1153: 8,310 lb KL1155: 8,554 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage Not Published Tractors (Non-Commercial): 24 months parts & labor, unlimited hours, 0% deductible; powertrain (engine and driveline): 48 months unlimited hours on HX Series
