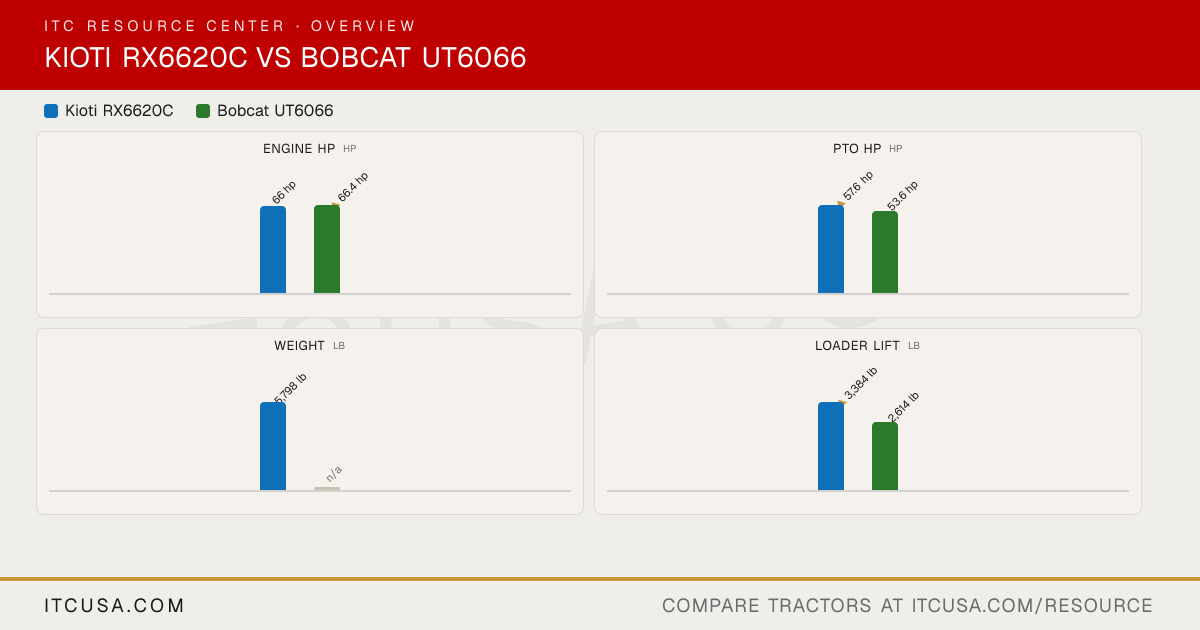

▶ EngineEngine Manufacturer KIOTI Daedong Engine Model 4F243T 4HT-TP4A Engine Type In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4F243T) Turbocharged diesel No. of Cylinders 4 4 Displacement 148.6 in³ 148.6 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 66 hp 66.4 hp PTO Power 57.6 hp 57.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Not Published Air Cleaner Dry element Not Published Fuel System Common Rail Direct Injection (CRDI) Common rail Alternator Not Published Not Published ▶ HydraulicsPump Type Gear Not Published Implement Flow 11.0 gpm 11.0 gpm Steering Flow 6.9 gpm 6.9 gpm Total Hydraulic Flow 17.9 gpm 17.9 gpm Overall Hydraulic Pump Flow 17.9 gpm 17.9 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 1 No. of Optional Remote Valves 2 2 ▶ Fluid CapacityFuel Tank Capacity 25.1 gal 22.5 gal Coolant Capacity 2.40 gal Not Published Crankcase Capacity 2.2 gal Not Published Transmission / Hydraulic System Capacity 15.9 gal Not Published Front Axle Fluid Capacity 2.2 gal Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 / 540E rpm 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 4,575 lb Not Published Hitch Lift Capacity (at 24”) 3,594 lb 3594 lb Lift Control Type Position, Draft, Mixed Control Position with draft control ▶ Transmission & DrivetrainTransmission Type Manual: Synchro Shuttle 3-range powershuttle with electronic clutch No. of Speeds 12 forward / 12 reverse 12 forward, 12 reverse Max Travel Speed (Forward) 21.79 mph 19.8 mph Max Travel Speed (Reverse) 21.42 mph 19.5 mph Clutch Dry Single Plate Electronic clutch Differential Lock & Limited Slip Options Rear differential lock (standard) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Power steering with tilt wheel Brakes Wet Multi Disc Wet multi-disc Seat Suspension & Adjustability Adjustable Seat Suspension seat, fully adjustable (standard) Front Axle Type Not Published Four-wheel drive (standard) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145.0 in 148.8 in Overall Width 70.9 in 77.2 in Wheelbase 82.7 in 82.7 in Ground Clearance 16.5 in 12.3 in Min. Turn Radius without Brakes 10.2 ft (with brake applied) 147.0 in Height to Top of ROPS Not Published 102.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 103.6 in Not Published ▶ WeightTractor Weight (Base) 5,798 lb 5440 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Industrial (standard), Agricultural, Multi-Use R1 Agricultural - Front 9.5-20 9.5-24 R1 Agricultural - Rear 14.9-28 16.9-30 R3 Turf - Front 31x13.5-15/8 Not Published R3 Turf - Rear 44x18-20/4 Not Published R4 Industrial - Front 12.5/80-18 12.5/80-18 R4 Industrial - Rear 18.4-24/8 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System Built-in parking stand; designed to be quickly and easily attached and detached. Bob-Tach Loader Model KL7320 FL10 Loader Lift Height KL7320: 133.9 in (to pivot pin) 129.3 in Loader Lift Capacity (Full Height) KL7320: 3,384 lb (to full height at pivot pins) 2641 lb Loader Breakout Force KL7320: 5,359 lb (at pivot pins) Not Published ▶ WarrantyWarranty Length & Coverage Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage. 24 months or 1,500 hours (whichever occurs first); powertrain 36 months or 2,000 hours
