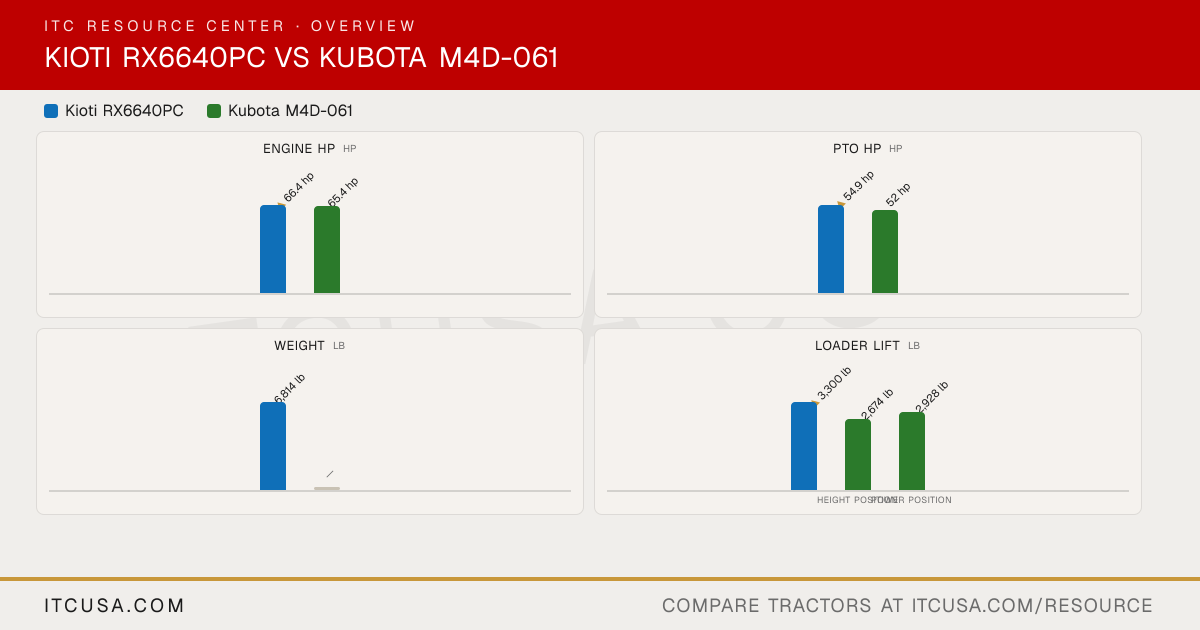

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Tandem Gear
Gear
Steering Flow
8.2 gpm
6.3 gpm
Implement Flow
12.4 gpm
16.7 gpm
Total Hydraulic Flow
20.6 gpm
23.0 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
20.6 gpm
23.0 gpm
No. of Optional Remote Valves
2
Max. 3
No. of Standard Remote Valves
1
2 (SCD / FD)
PTO Rear
540 / 540E rpm
540/540E rpm
PTO Type
Independent
Live-independent PTO, electro-hydraulic clutch with brake
Lift Control Type
Electronic Control
Position, draft (top link sensing) & mixed control
Hitch Lift Capacity
5,584.3 lb
Not Published
Mid-PTO Availability
Not Applicable
Not Published
Category, 3-Point Hitch
Category II
I / II
Hitch Lift Capacity (at 24”)
4,327.7 lb
3307 lbs
R3 Turf - Rear
Not Applicable
Not Published
R3 Turf - Front
Not Applicable
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Standard tire size
R4 Industrial - Rear
18.4-24/8
Not Published
R4 Industrial - Front
12.5/80-18
Not Published
R1 Agricultural - Rear
16.9-30
420/75R34
R1 Agricultural - Front
11.2-24
320/70R24
Coolant Capacity
2.51 gal
Not Published
Crankcase Capacity
2.83 gal
Not Published
Fuel Tank Capacity
26.40 gal
23.8 gal
Front Axle Fluid Capacity
2.60 gal
Not Published
Transmission / Hydraulic System Capacity
11.75 gal
Not Published
Loader Lift Height
127.1 in (to pivot pin)
Height position: 133.0 in; Power position: 117.6 in
Loader Breakout Force
5,875.3 lb (at pivot pins)
Not Published
Quick Attach Loader System
Built-in parking stand; designed to be quickly and easily attached and detached.
LA1154A: 2-Lever Quick Coupler
Loader Lift Capacity (Full Height)
3,300.0 lb (to full height at pivot pins)
Height position: 2674 lb; Power position: 2928 lb
Clutch
Wet Disc
Multiple wet disc
No. of Speeds
12 forward / 12 reverse
F12/R12 (option: F18/R18 with creep)
Transmission Type
Manual: Power Shuttle
12-speed electro-hydraulic shuttle (option: 18-speed with creep)
Max Travel Speed (Forward)
22.01 mph
Not Published
Max Travel Speed (Reverse)
21.92 mph
Not Published
Differential Lock & Limited Slip Options
Rear differential lock (standard)
Front limited slip differential; Rear differential lock (mechanical)
