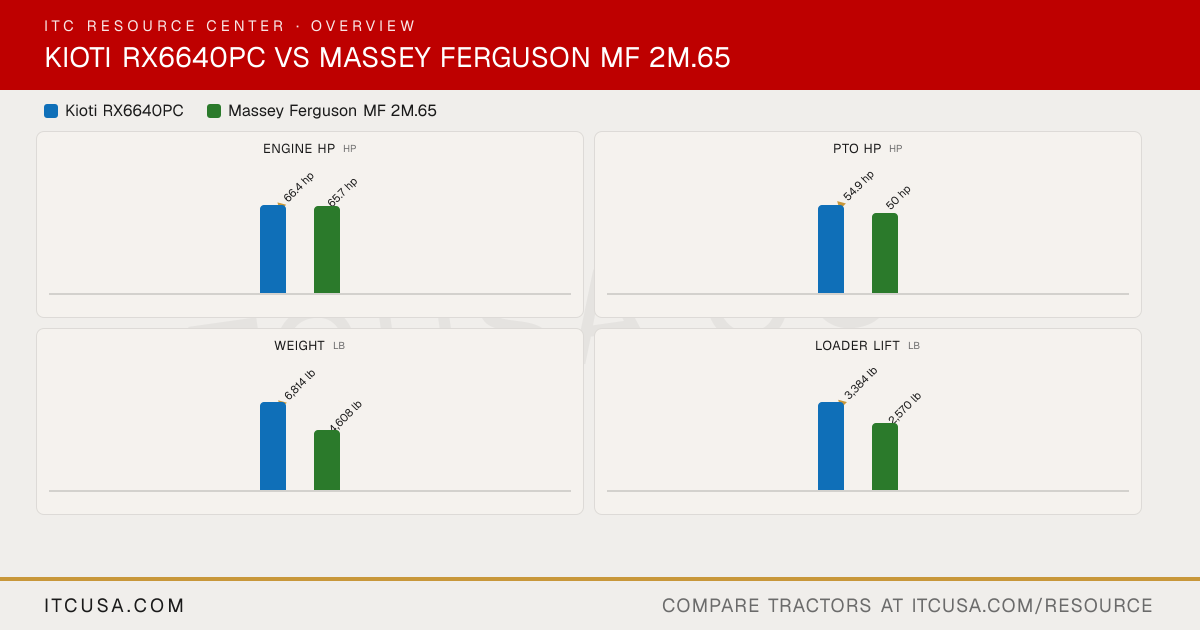

▶ EngineEngine Manufacturer KIOTI Iseki Engine Model 4H243T Not Published Engine Type 4-cylinder, in-line vertical, water-cooled, 4-cycle turbo diesel, CRDI (4H243T) 4-cylinder, turbocharged diesel No. of Cylinders 4 4 Displacement 148.6 in³ Not Published Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 66.4 hp 65.7 hp PTO Power 54.9 hp 50 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Not Published Air Cleaner Not Published Not Published Fuel System CRDI Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Tandem Gear Two gear-type pumps Implement Flow 12.4 gpm 12.6 gpm Steering Flow 8.2 gpm 7.1 gpm Total Hydraulic Flow 20.6 gpm 19.7 gpm (12.6 + 7.1, computed) Overall Hydraulic Pump Flow 20.6 gpm 19.7 gpm (12.6 + 7.1, computed) Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 26.4 gal 14.0 gal Coolant Capacity 2.51 gal Not Published Crankcase Capacity 2.83 gal Not Published Transmission / Hydraulic System Capacity 11.75 gal Not Published Front Axle Fluid Capacity 2.6 gal Not Published ▶ PTO & HitchPTO Type Independent Independent with SoftStart electronic modulation PTO Rear 540 / 540E rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category I & II Hitch Lift Capacity 5,584 lb Not Published Hitch Lift Capacity (at 24”) 4,328 lb 3,483 lb Lift Control Type Electronic Control Not Published ▶ Transmission & DrivetrainTransmission Type Manual: Power Shuttle 3-range Servo-HST with 2 stages (Hi and Lo), electronically controlled No. of Speeds 12 forward / 12 reverse Not Published Max Travel Speed (Forward) 23.9 mph (22.01 mph on AG tires) Not Published Max Travel Speed (Reverse) 23.3 mph (21.92 mph on AG tires) Not Published Clutch Wet Disc Not Published Differential Lock & Limited Slip Options Rear differential lock (standard) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Not Published Brakes Wet Multi Disc Not Published Seat Suspension & Adjustability Adjustable Air-Ride Seat Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 1,984 lb (max. drawbar vertical load) Not Published ▶ Dimensions & ManeuverabilityOverall Width 82.1 in 70.1 in Wheelbase 85.4 in Not Published Ground Clearance 15.7 in 14.0 in Min. Turn Radius without Brakes 12.8 ft Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 105.3 in 92.9 in Overall Length 150.3 in (with 3-point hitch) 132.3 in ▶ WeightTractor Weight (Base) 6,814 lb (with AG tires) 4,608 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Industrial Not Published R1 Agricultural - Front 11.2-24 Not Published R1 Agricultural - Rear 16.9-30 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80-18 Not Published R4 Industrial - Rear 18.4-24/8 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Built-in parking stand; quick attach and detach Skid steer Loader Model KL7340 FL2814 Loader Lift Height KL7340: 127.1 in (to pivot pin) FL2814: 111 in (at pivot pin) Loader Lift Capacity (Full Height) KL7340: 3,384 lb (to full height) FL2814: 2,570 lb (at pivot pin) Loader Breakout Force KL7340: 5,875 lb (at pivot pin) FL2814: 3,910 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Non-commercial: basic 24 months, powertrain 48 months, parts and labor Not Published
