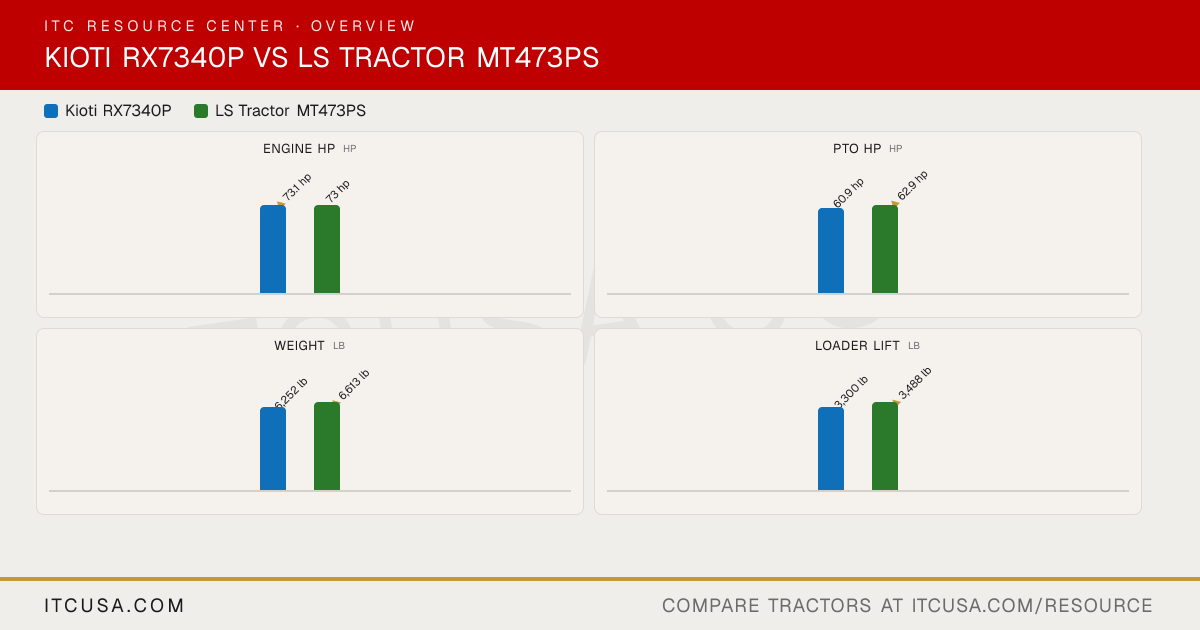

▶ EnginePTO Power 60.9 hp (45.4 kW) 62.9 hp (46.9 kW) Alternator Not Published 12 V, 70 A Air Cleaner Not Published Dry Engine Type In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4H243T) In-line vertical, water cooled 4-cycle diesel, CRDI Fuel System Common Rail Direct Injection (CRDI) Delphi, CRDI Displacement 148.6 in³ (2,435 cc) 152.86 in³ (2505 cc) No. of Cylinders 4 4 Rated Engine Speed 2,600 rpm 2,500 rpm Cooling System Type Water-cooled Water-cooled Engine Manufacturer KIOTI LS Mtron Engine Emissions Constraints Tier 4 Tier 4 Engine Power (Gross vs. Net HP) Gross: 73.1 hp (54.5 kW) Gross: 73.0 hp (54.4 kW) ▶ WeightTractor Weight with Loader 6,252 lb (2,836 kg) 6,613 lb (3,000 kg) Weight with Cab and Loader Not Applicable Not Applicable Weight with ROPS and Loader 6,252 lb (2,836 kg) 6,613 lb (3,000 kg) ▶ HydraulicsPump Type Tandem Gear Gear type, engine drive Steering Flow 31.2 L/min (8.2 gpm) 25.7 L/min (6.8 gpm) Implement Flow 46.8 L/min (12.4 gpm) 56.4 L/min (14.9 gpm) Total Hydraulic Flow 78.0 L/min (20.6 gpm) 82.1 L/min (21.7 gpm) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 78.0 L/min (20.6 gpm) 82.1 L/min (21.7 gpm) No. of Optional Remote Valves 1 Not Published No. of Standard Remote Valves 1 2 Pairs (Front), 2 Pairs (Rear) ▶ Tire OptionsR3 Turf - Rear Not Applicable Not Published R3 Turf - Front Not Applicable Not Published Tire Size & Options R1 Agricultural, R4 Industrial Multiple options available (Standard Ag, Industrial, Large Ag, R14) R4 Industrial - Rear 18.4-24/8 19.5LX24 R4 Industrial - Front 12.5/80-18 10.5/80X18 R1 Agricultural - Rear 16.9-30 16.9-30 R1 Agricultural - Front 11.2-24 11.2-24 ▶ Pto & HitchPTO Rear 540 / 540E rpm 540 / 540E PTO Type Independent Independent Lift Control Type Electronic Control Position & Draft Hitch Lift Capacity 5,584.3 lb (2,533 kg) 4,079 lbs Mid-PTO Availability Not Applicable Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity (at 24”) 4,327.7 lb (1,963 kg) 3,483 lbs Rear 3-Point Hitch Lift Capacity 5,584.3 lb (2,533 kg) 4,079 lbs ▶ Fluid CapacityCoolant Capacity 2.51 gal (9.5 L) 3.0 gal (11.5 L) Crankcase Capacity 2.83 gal (10.7 L) 1.8 gal (7.0 L) Fuel Tank Capacity 26.40 gal (100 L) 24.3 gal (92 L) Front Axle Fluid Capacity 2.60 gal (10 L) 2.3 gal (8.6 L) Transmission / Hydraulic System Capacity 11.75 gal (44.5 L) 16.8 gal (63.5 L) ▶ Loader & AttachmentsLoader Lift Height 127.1 in (3,229.0 mm) (to pivot pin) 132.9 in (3376 mm) Loader Breakout Force 5,875.3 lb (2,665.0 kg) (at pivot pins) Not Published Price for Backhoe Option Not Applicable Not Applicable Price for Mid-Mount Mower Not Applicable Not Applicable Quick Attach Loader System Built-in parking stand; designed to be quickly and easily attached and detached. LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA) Loader Lift Capacity (Full Height) 3,300.0 lb (1,497.0 kg) (to full height at pivot pins) 3,488 lb ▶ Transmission & DrivetrainClutch Wet Disc Wet clutch disks No. of Speeds 12 forward / 12 reverse F16 X R16 Transmission Type Manual: Power Shuttle Electro Power Shuttle Max Travel Speed (Forward) 22.01 mph (35.43 km/h) Not Published Max Travel Speed (Reverse) 21.92 mph (35.28 km/h) Not Published Differential Lock & Limited Slip Options Rear differential lock (standard) Mechanical differential lock (pedal) ▶ Chassis Steering & ControlsBrakes Wet Multi Disc Wet, Multi-disc Steering Hydrostatic Power Steering Hydrostatic Power Steering Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Mechanical Suspension Seat Seat With Suspension & Armrest ▶ Dimensions & ManeuverabilityWheelbase 85.40 in (2,170 mm) 83.1 in (2111 mm) Overall Width 82.10 in (2,085 mm) 72.6 in (1844 mm) Ground Clearance 15.70 in (400 mm) Not Published Height to Top of ROPS 114.80 in (2,917 mm) 113.9 in (2893 mm) Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 12.80 ft (3.90 m) 12.8 ft (3.9 m) Overall Length with 3-Point Hitch 150.30 in (3,817 mm) 154 in (3912 mm) ▶ Pricing Financing & WarrantyFinancing Options RX Series: up to $4,000 cash offer; 0% up to 36 months; 6.99% interest rate (offers subject to change). 0% financing up to 96 months on select models; cash rebate incentive (offers vary) Base Price with Loader Tractor Starting MSRP $50,658 + Front End Loader KL7340 $10,812 = $61,470 MSRP Not Published Warranty Length & Coverage Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage. 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty Base Price with Loader + Cab Not Applicable Not Published ▶ SourcesSpec sheet sources [1] kioti.com [2] kioti-api.files.svdcdn.com [3] kioti-api.files.svdcdn.com [4] kioti.com [1] lstractorusa.com [2] lstractorusa.com [3] lstractorusa.com [4] lstractorusa.com [5] lstractorusa.com [6] lstractorusa.com [7] lstractorusa.com
