Kubota B2401 vs Kubota LX2610 | Side-by-side comparison | ITC Resource Center
Compare Tractors

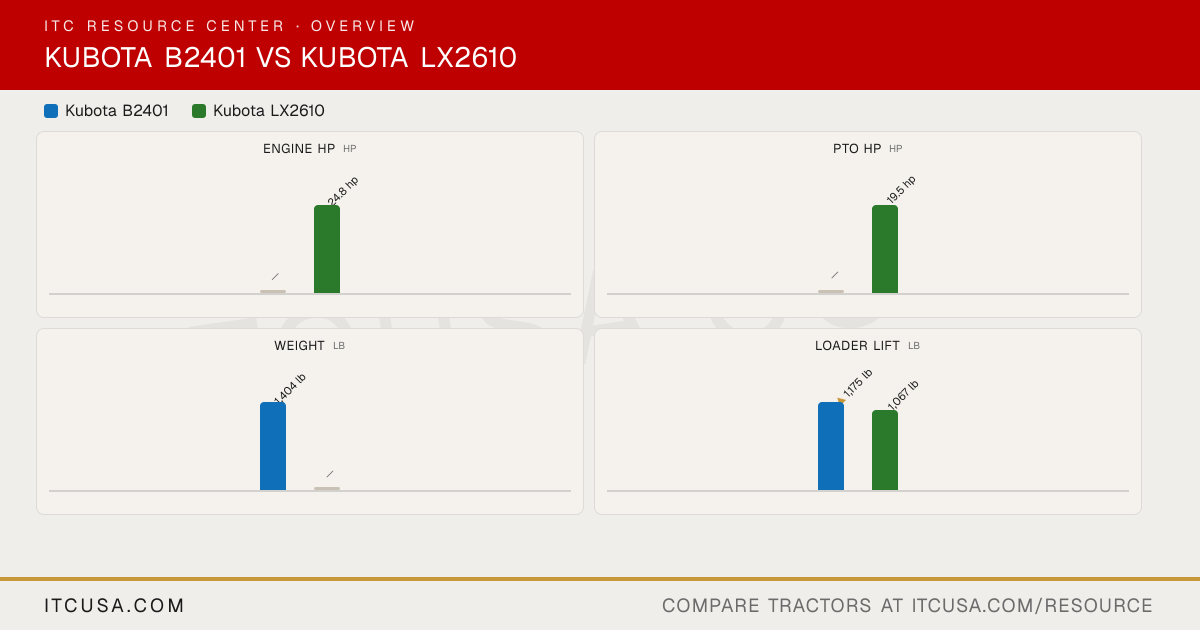

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaB2401
KubotaLX2610
PTO Power
19.2 (14.3) HP (kW)
19.5 hp
Alternator
40 A
Not Published
Air Cleaner
Dual paper element
4.5 inch Dual paper element
Engine Type
E-TVCS, liquid cooled, 3-cylinder diesel
E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System
Radial air flow
Not Published
Displacement
68.5 (1123) cu. in. (cc)
77 in³
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
2500 rpm
Cooling System Type
Liquid Cooled
Pressurized radiator
Engine Manufacturer
Kubota
Kubota
Engine Power (Gross)
21.9 (16.3) HP (kW)
24.8 hp
Engine Emissions Constraints
Tier 4
Not Published
Tractor Weight (Base)
1,404 lbs.
—
Weight with ROPS and Loader
1,521 lbs.
Not Published
Weight with Cab and Loader
—
Not Applicable
Warranty Length & Coverage
Full warranty: 2 years / 2,000 hours; Powertrain warranty: 6 years / 2,000 hours
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)
1,175 lbs.
1067 lb
Clutch
Dry single plate
N/A
No. of Speeds
9 Forward, 3 Reverse
3 ranges
Transmission Type
Gear (9 Forward, 3 Reverse)
Hydrostatic transmission
Max Travel Speed (Forward)
0-11.7 (0-18.8) mph (km/h)
11.2 mph
Max Travel Speed (Reverse)
0-6.0 (0-9.6) mph (km/h)
8.4 mph
Differential Lock & Limited Slip Options
Standard
Differential lock standard
Brakes
Multi-plate wet disc
Multi-plate wet disc
Steering
Integral type power steering
Hydraulic power steering
Front Axle Type
Cast-iron front axle
Not Published
Drawbar Capacity
661.4 lb (660 lbs)
Not Published
Seat Suspension & Adjustability
High-back seat (absorbs shock); NOTE: Deluxe seat with armrests and seat suspension listed for HST models only - not explicitly confirmed for B2401 gear-drive (DT) in spec sheet
