Kubota B2401 vs TYM T224 | Side-by-side comparison | ITC Resource Center
Compare Tractors

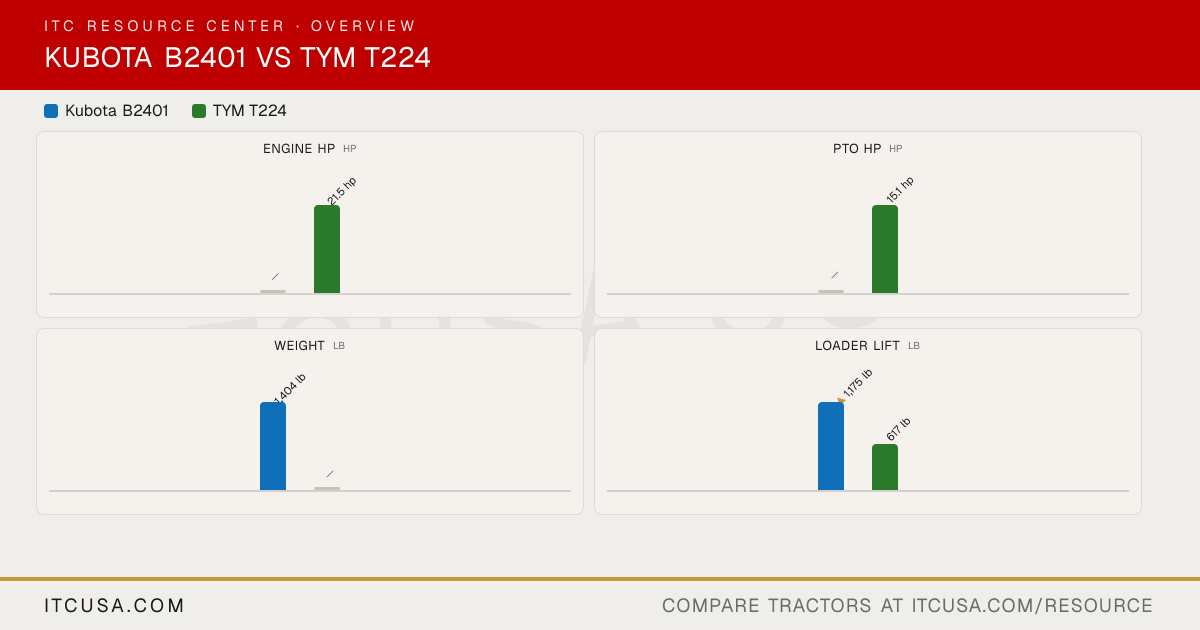

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaB2401
TYMT224
PTO Power
19.2 (14.3) HP (kW)
15.1 hp
Alternator
40 A
40 A, 12 V
Air Cleaner
Dual paper element
Single dry
Engine Type
E-TVCS, liquid cooled, 3-cylinder diesel
3-cylinder, naturally aspirated diesel
Fuel System
Radial air flow
IDI
Displacement
68.5 (1123) cu. in. (cc)
60.6 in³
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
3200 rpm
Cooling System Type
Liquid Cooled
Water-cooled
Engine Manufacturer
Kubota
Yanmar
Engine Power (Gross)
21.9 (16.3) HP (kW)
21.5 hp
Engine Emissions Constraints
Tier 4
Tier 4
Tractor Weight (Base)
1,404 lbs.
—
Weight with ROPS and Loader
1,521 lbs.
Not Published
Weight with Cab and Loader
—
Not Published
Warranty Length & Coverage
Full warranty: 2 years / 2,000 hours; Powertrain warranty: 6 years / 2,000 hours
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
High-back seat (absorbs shock); NOTE: Deluxe seat with armrests and seat suspension listed for HST models only - not explicitly confirmed for B2401 gear-drive (DT) in spec sheet
