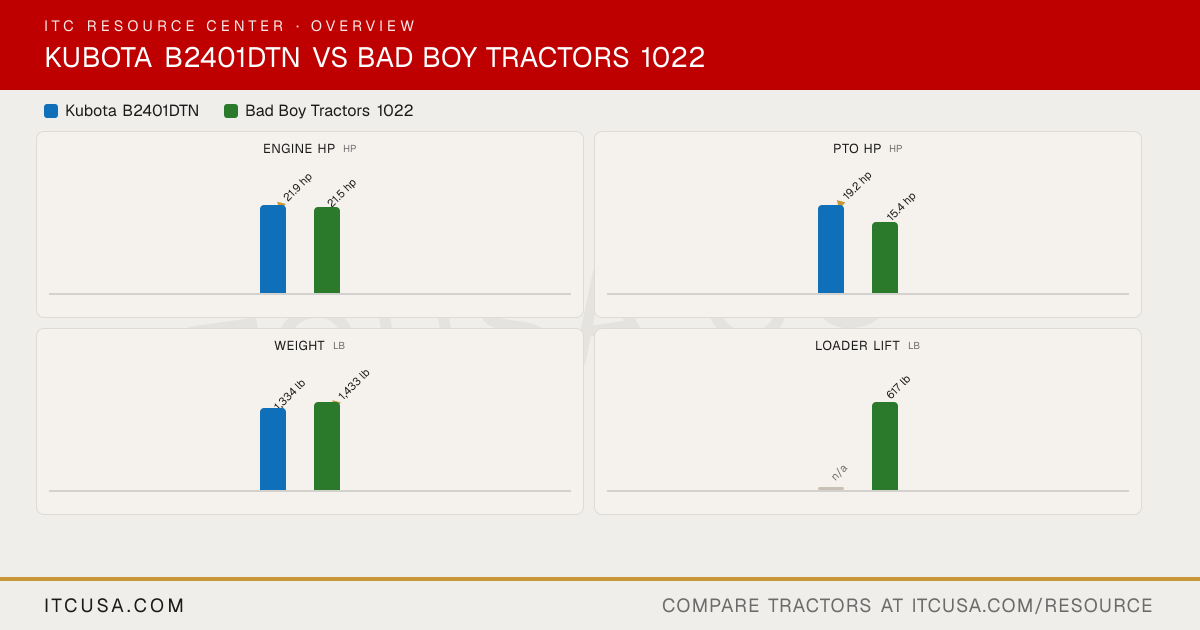

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D1105 3TNM74F Engine Type E-TVCS, liquid cooled, 3-cylinder diesel 3 cylinder, water-cooled diesel, natural aspiration No. of Cylinders 3 3 Displacement 68.5 in³ 60.6 in³ Rated Engine Speed 2600 rpm 3200 rpm Engine Power (Gross) 21.9 hp 21.5 hp PTO Power 19.2 hp 15.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid Cooled Water-cooled Air Cleaner Dual paper element Single dry element Fuel System Not Published Indirect injection Alternator 40 A 40 A, 12 V ▶ HydraulicsPump Type Dual pump Single gear pump with flow divider Implement Flow 4.4 gpm 4.17 gpm Steering Flow 2.6 gpm 2.11 gpm Total Hydraulic Flow 7.0 gpm 6.3 gpm Overall Hydraulic Pump Flow 7.0 gpm 6.97 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 1 ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 6.6 gal Coolant Capacity 4.0 qt 3.7 qt Crankcase Capacity 3.3 qt 2.1 qt Transmission / Hydraulic System Capacity 3.3 gal 3.6 gal Front Axle Fluid Capacity 0.8 gal 2.6 qt ▶ PTO & HitchPTO Type Transmission driven with one way clutch Independent PTO Rear 540, 980 rpm 540 rpm Mid-PTO Availability Not Published Optional, 2,500 rpm Category, 3-Point Hitch Category I Category I (limited) Hitch Lift Capacity 1,653 lb 1,100 lb Hitch Lift Capacity (at 24”) 1,290 lb 679 lb Lift Control Type Position control valve Position control ▶ Transmission & DrivetrainTransmission Type Gear (9 Forward, 3 Reverse) Hydrostatic (HST) No. of Speeds 9 Forward, 3 Reverse 2 range Max Travel Speed (Forward) 10.9 mph 7.8 mph Max Travel Speed (Reverse) 5.6 mph Not Published Clutch Dry single plate Dry single plate Differential Lock & Limited Slip Options Standard Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Sub-compact tractor Steering Integral type power steering Hydrostatic power steering Brakes Multi-plate wet disc Wet disc Seat Suspension & Adjustability Fore and aft slide adjustment (position adjust lever) Not Published Front Axle Type Not Published Selectable 4WD Front Axle Rating Not Published Not Published Drawbar Capacity 660 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 35.6 in 44.5 in Wheelbase 61.4 in 53.1 in Ground Clearance 11 in 8.3 in Min. Turn Radius without Brakes 6.9 ft (with brake applied) 86.6 in Height to Top of ROPS 75.2 in 86.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 92.9 in (without 3-point hitch) 94.2 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,433 lb 1,433 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Farm (R1): 5-12 front, 8-16 rear R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 5-12 16x7.50-9 R1 Agricultural - Rear 8-16 24x12.00-12 R3 Turf - Front Not Published 16x7.50-8 R3 Turf - Rear Not Published 26x12.00-12 R4 Industrial - Front Not Published 18x8.5-10 R4 Industrial - Rear Not Published 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quick attach front loader Loader Model Not Published BBL100 Loader Lift Height Not Published 78.5 in (at pivot pin) Loader Lift Capacity (Full Height) Not Published 617 lb (at pivot pin) Loader Breakout Force Not Published 1,253 lbf ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
