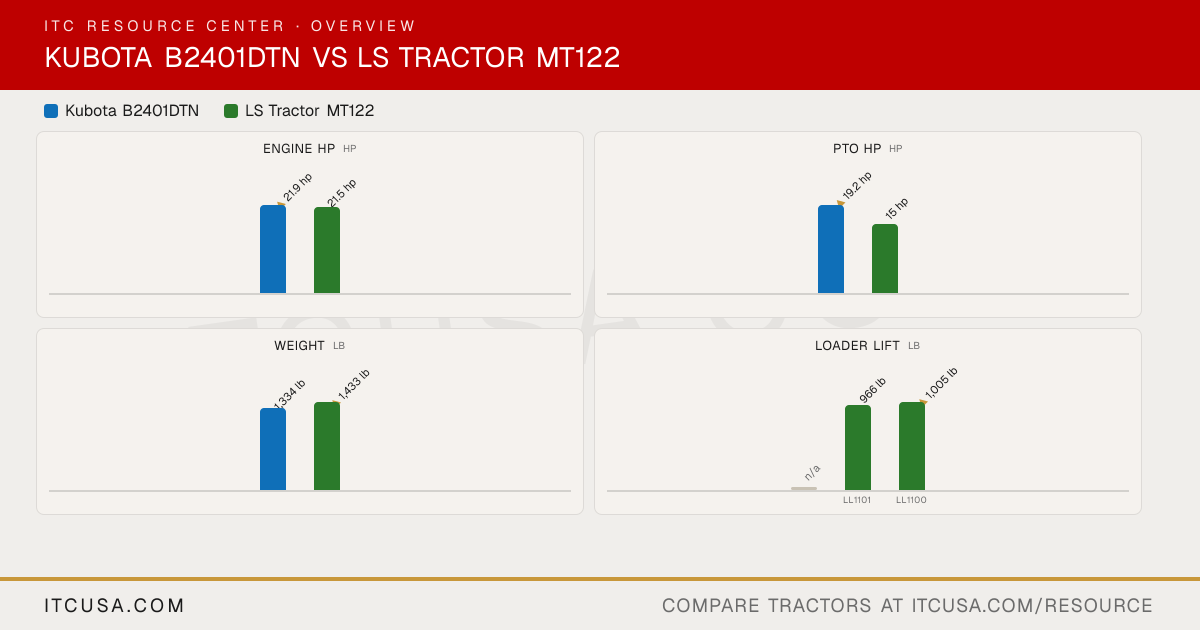

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D1105 3TNV76F Engine Type E-TVCS, liquid cooled, 3-cylinder diesel 3-cylinder, indirect injection (swirl chamber), water-cooled No. of Cylinders 3 3 Displacement 68.5 in³ 68.0 in³ Rated Engine Speed 2600 rpm 3000 rpm Engine Power (Gross) 21.9 hp 21.5 hp PTO Power 19.2 hp 15 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid Cooled Water-cooled Air Cleaner Dual paper element Dry Fuel System Not Published In-line injection pump Alternator 40 A 40 A, 12 V ▶ HydraulicsPump Type Dual pump Gear pump, transmission driven Implement Flow 4.4 gpm 4.6 gpm Steering Flow 2.6 gpm 2.1 gpm Total Hydraulic Flow 7.0 gpm 6.7 gpm Overall Hydraulic Pump Flow 7.0 gpm 6.7 gpm Hydraulic System Type Open center Open center system, position control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 0 No. of Optional Remote Valves 1 1 pair (2 quick couplers) ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 6.6 gal Coolant Capacity 4.0 qt 0.9 gal Crankcase Capacity 3.3 qt 0.8 gal Transmission / Hydraulic System Capacity 3.3 gal 3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe) Front Axle Fluid Capacity 0.8 gal 0.5 gal ▶ PTO & HitchPTO Type Transmission driven with one way clutch Independent (electro-hydraulic) PTO Rear 540, 980 rpm Standard (540 rpm) Mid-PTO Availability Not Published Standard (2,500 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1653 lb 970 lb Hitch Lift Capacity (at 24”) 1290 lb 728 lb Lift Control Type Position control valve Position control ▶ Transmission & DrivetrainTransmission Type Gear (9 Forward, 3 Reverse) Hydrostatic Drive No. of Speeds 9 Forward, 3 Reverse 2 ranges Max Travel Speed (Forward) 10.9 mph 8.70 mph Max Travel Speed (Reverse) 5.6 mph 5.22 mph Clutch Dry single plate Not Published Differential Lock & Limited Slip Options Standard Mechanical pedal type ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Integral type power steering Hydrostatic power steering Brakes Multi-plate wet disc Wet, multi-disc Seat Suspension & Adjustability Fore and aft slide adjustment (position adjust lever) High-Back Seat with Foldable Armrest and Retractable Seatbelt; fore/aft adjustable Front Axle Type Not Published Front wheel mechanical assist (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity 660 lb Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 92.9 in (without 3-point hitch) 97 in Overall Width 35.4 in 47 in Wheelbase 61.4 in 56 in Ground Clearance 11.8 in Not Published Min. Turn Radius without Brakes 6.9 ft (with brake applied) 7.87 ft Height to Top of ROPS 75.2 in 87 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1334 lb 1,433 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Farm (R1): 5-12 front, 8-16 rear Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf R1 Agricultural - Front 5-12 Not Published R1 Agricultural - Rear 8-16 Not Published R3 Turf - Front Not Published 18x8.50-10 R3 Turf - Rear Not Published 26x12.0-12 R4 Industrial - Front Not Published 18x8.50-10 R4 Industrial - Rear Not Published 26x12.0-12 ▶ Loader & AttachmentsQuick Attach Loader System Not Published LL1101: Pin-Type Bucket (standard); Quick Attach Assembly (Optional) - Compact Type (dual-lever LH/RH); LL1700: Quick Attach Implement System Loader Model Not Published LL1101; LL1100 Loader Lift Height Not Published LL1101: 72.0 in; LL1100: 72.0 in (at pivot pin) Loader Lift Capacity (Full Height) Not Published LL1101: 966 lb; LL1100: 1,005 lb (at pivot pin, maximum height) Loader Breakout Force Not Published LL1101: 1,960 lb; LL1100: 2,083 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. 6-year limited warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
