Kubota B2401DTN vs Yanmar SA223 | Side-by-side comparison | ITC Resource Center
Compare Tractors

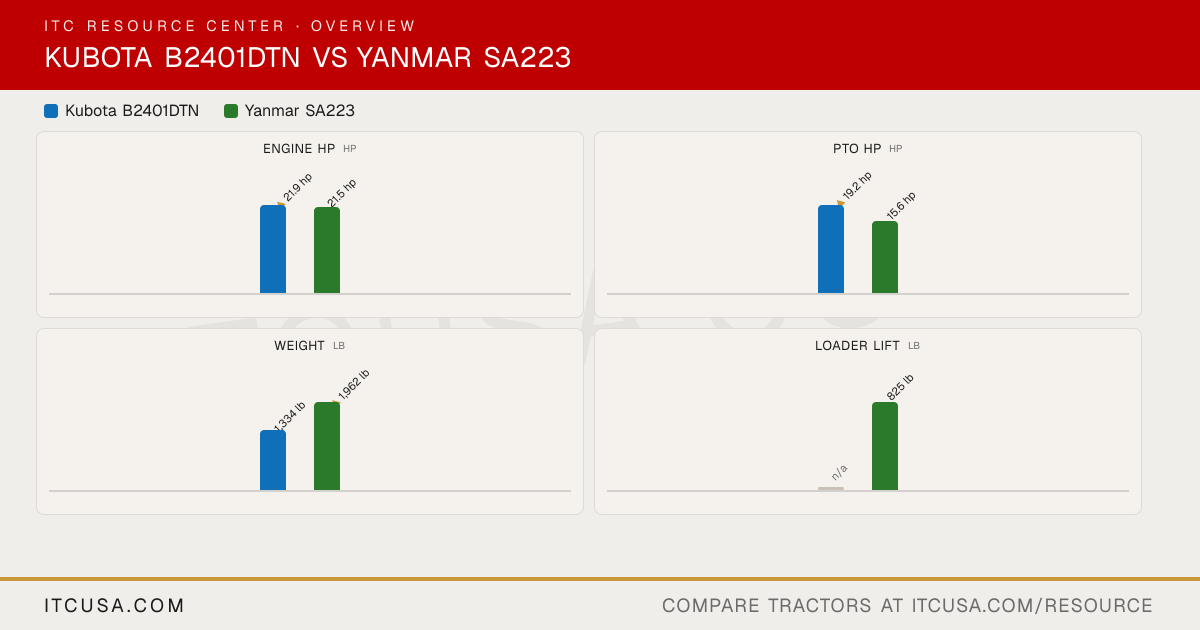

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaB2401DTN
YanmarSA223
Engine Manufacturer
Kubota
YANMAR
Engine Model
D1105
n/a
Engine Type
E-TVCS, liquid cooled, 3-cylinder diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
68.5 in³
60.6 in³
Rated Engine Speed
2600 rpm
3200 rpm
Engine Power (Gross)
21.9 hp
21.5 hp
PTO Power
19.2 hp
15.6 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid Cooled
Liquid cooled
Air Cleaner
Dual paper element
Not Published
Fuel System
Not Published
Not Published
Alternator
40 A
40 A, 12 V
Pump Type
Dual pump
Not Published
Implement Flow
4.4 gpm
4.3 gpm
Steering Flow
2.6 gpm
3.7 gpm
Total Hydraulic Flow
7.0 gpm
8.0 gpm
Overall Hydraulic Pump Flow
7.0 gpm
8.0 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
Not Published
No. of Optional Remote Valves
1
Not Published
Fuel Tank Capacity
6.1 gal
6.1 gal
Coolant Capacity
4.0 qt
3.0 qt
Crankcase Capacity
3.3 qt
3.1 qt
Transmission / Hydraulic System Capacity
3.3 gal
4.1 gal
Front Axle Fluid Capacity
0.8 gal
3.17 qt
PTO Type
Transmission driven with one way clutch
Independent (hydraulic clutch)
PTO Rear
540, 980 rpm
554 rpm @ 3,200 engine rpm
Mid-PTO Availability
Not Published
Standard
Category, 3-Point Hitch
Category I
Limited Category I
Hitch Lift Capacity
1653 lb
Not Published
Hitch Lift Capacity (at 24”)
1290 lb
660 lb
Lift Control Type
Position control valve
Position control
Transmission Type
Gear (9 Forward, 3 Reverse)
Hydrostatic transmission, dual range speeds
No. of Speeds
9 Forward, 3 Reverse
Unlimited (hydrostatic); 2 ranges (High/Low)
Max Travel Speed (Forward)
10.9 mph
9.5 mph (with R4 tires)
Max Travel Speed (Reverse)
5.6 mph
6.6 mph (with R4 tires)
Clutch
Dry single plate
Not Applicable
Differential Lock & Limited Slip Options
Standard
Standard differential lock
Frame Type
Not Published
Full-frame chassis
Steering
Integral type power steering
Hydrostatic power steering
Brakes
Multi-plate wet disc
Wet disc
Seat Suspension & Adjustability
Fore and aft slide adjustment (position adjust lever)
Not Published
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
660 lb
Not Published
Overall Length with 3-Point Hitch
92.9 in (without 3-point hitch)
102.1 in
Overall Width
35.4 in
47.3 in
Wheelbase
61.4 in
57.9 in
Ground Clearance
11.8 in
6.4 in
Min. Turn Radius without Brakes
6.9 ft (with brake applied)
7.87 ft (2.4 m)
Height to Top of ROPS
75.2 in
82.3 in
Height to Top of ROPS (folded)
Not Published
66.3 in (folded ROPS, top of steering wheel)
Height to Top of Cab Model
Not Published
Not Applicable
Tractor Weight (Base)
1334 lb
n/a
Weight with ROPS and Loader
Not Published
1,962 lb
Weight with Cab and Loader
Not Published
Not Applicable
Tire Size & Options
Farm (R1): 5-12 front, 8-16 rear
R3 Turf; R4 Industrial
R1 Agricultural - Front
5-12
Not Applicable
R1 Agricultural - Rear
8-16
Not Applicable
R3 Turf - Front
Not Published
18x8.50-10 4PR
R3 Turf - Rear
Not Published
26x12.0-12 4PR
R4 Industrial - Front
Not Published
18x8.50-10 6PR
R4 Industrial - Rear
Not Published
26x12.0-12 4PR
Quick Attach Loader System
Not Published
YL110: YANMAR quick attachment system (quick attach/detach)
Loader Model
Not Published
n/a
Loader Lift Height
Not Published
71 in
Loader Lift Capacity (Full Height)
Not Published
825 lb
Loader Breakout Force
Not Published
1,342 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
