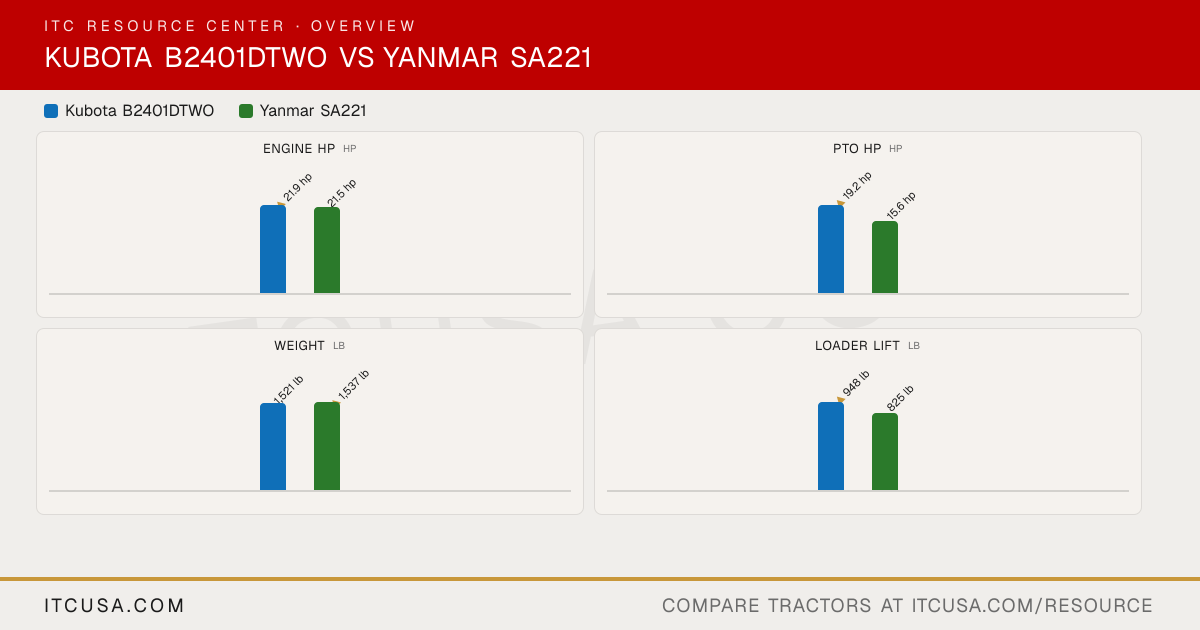

▶ EngineEngine Manufacturer Kubota YANMAR Engine Model D1105 3TNM74F Engine Type E-TVCS, liquid cooled, 3-cylinder diesel 4-cycle inline, water-cooled diesel, naturally aspirated No. of Cylinders 3 3 Displacement 68.5 in³ 60.6 in³ Rated Engine Speed 2600 rpm 3200 rpm Engine Power (Gross) 21.9 hp 21.5 hp PTO Power 19.2 hp 15.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid Cooled Liquid cooled Air Cleaner Dual paper element Not Published Fuel System Not Published Not Published Alternator 40 A 40 A ▶ HydraulicsPump Type Dual pump Dual hydraulic pump Implement Flow 4.4 gpm 4.3 gpm Steering Flow 2.6 gpm 3.7 gpm Total Hydraulic Flow 7.0 gpm 8.0 gpm (4.3 + 3.7, computed) Overall Hydraulic Pump Flow 7.0 gpm 8.0 gpm (4.3 + 3.7, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 Not Published ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 6.1 gal Coolant Capacity 4.0 qt 3.0 qt Crankcase Capacity 3.3 qt 3.1 qt Transmission / Hydraulic System Capacity 3.3 gal 4.1 gal Front Axle Fluid Capacity 0.9 gal 3.2 qt ▶ PTO & HitchPTO Type Transmission driven with one way clutch Independent PTO Rear 540, 1000 rpm 554 rpm @ 3200 engine rpm Mid-PTO Availability 2500 rpm Independent mid-PTO, 2057 rpm at 3200 engine rpm Category, 3-Point Hitch Category I Limited Category I Hitch Lift Capacity 1,653 lb Not Published Hitch Lift Capacity (at 24”) 1,290 lb 660 lb Lift Control Type Position control valve Select control ▶ Transmission & DrivetrainTransmission Type Gear (9 Forward, 3 Reverse) Hydrostatic transmission No. of Speeds 9 Forward, 3 Reverse Infinite forward and reverse (hydrostatic); 1 range Max Travel Speed (Forward) 11.7 mph 8.6 mph (with R4 tires) Max Travel Speed (Reverse) 6.0 mph 6.3 mph (with R4 tires) Clutch Dry single plate Not Published Differential Lock & Limited Slip Options Standard Differential lock pedal (optional) ▶ Chassis, Steering & ControlsFrame Type Not Published Full-frame chassis Steering Integral type power steering Hydrostatic power steering Brakes Multi-plate wet disc Wet disc Seat Suspension & Adjustability Fore and aft slide adjustment (position adjust lever) Fore-and-aft adjustable operator seat Front Axle Type Not Published Selectable 2WD/4WD Front Axle Rating Not Published Not Published Drawbar Capacity 660 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 48.8 in 47.3 in (with R4 tires) Wheelbase 61.4 in 57.9 in Ground Clearance 12.2 in 6.4 in (with R4 tires) Min. Turn Radius without Brakes 6.9 ft (with brake applied) 7.87 ft Height to Top of ROPS 83.9 in 82.3 in (with R4 tires) Height to Top of ROPS (folded) Not Published 66.3 in (folded ROPS, top of steering wheel, R4 tires) Height to Top of Cab Model Not Published Not Published Overall Length 93.9 in (without 3-point hitch) 102.1 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,521 lb 1,537 lb (with ROPS, R4 tires) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear; R14: 23x8.50-12 front, 12-16.5 rear R3 Turf; R4 Industrial R1 Agricultural - Front 6-12 Not Published R1 Agricultural - Rear 9.5-16 Not Published R3 Turf - Front 23x8.50-12 18x8.50-10 4PR R3 Turf - Rear 33x12.5-15 26x12.0-12 4PR R4 Industrial - Front 23x8.50-12 18x8.50-10 6PR R4 Industrial - Rear 12-16.5 26x12.0-12 4PR ▶ Loader & AttachmentsQuick Attach Loader System LA435 Swift-Tach loader; 1-lever quick coupler (standard); 2-lever quick coupler (optional) YL110: YANMAR quick attachment system Loader Model LA435 YL110 Loader Lift Height 78.5 in (at pivot pin) YL110: 71 in to pivot pin (51 in under level bucket) Loader Lift Capacity (Full Height) 948 lb (at pivot pin) YL110: 825 lb at pivot pin Loader Breakout Force 2,146 lbf (at pivot pin) YL110: 1,342 lb at pivot pin ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Private individual use: basic 24 months or 2,000 hours, powertrain 10 years or 3,000 hours; attachments 1 year ▶ ITC Company AccessoriesAccessories that fit None tagged yet
