Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaB2601HSD

n/a

BadBoy4035Cab

Comparison loaded for 2 tractors.

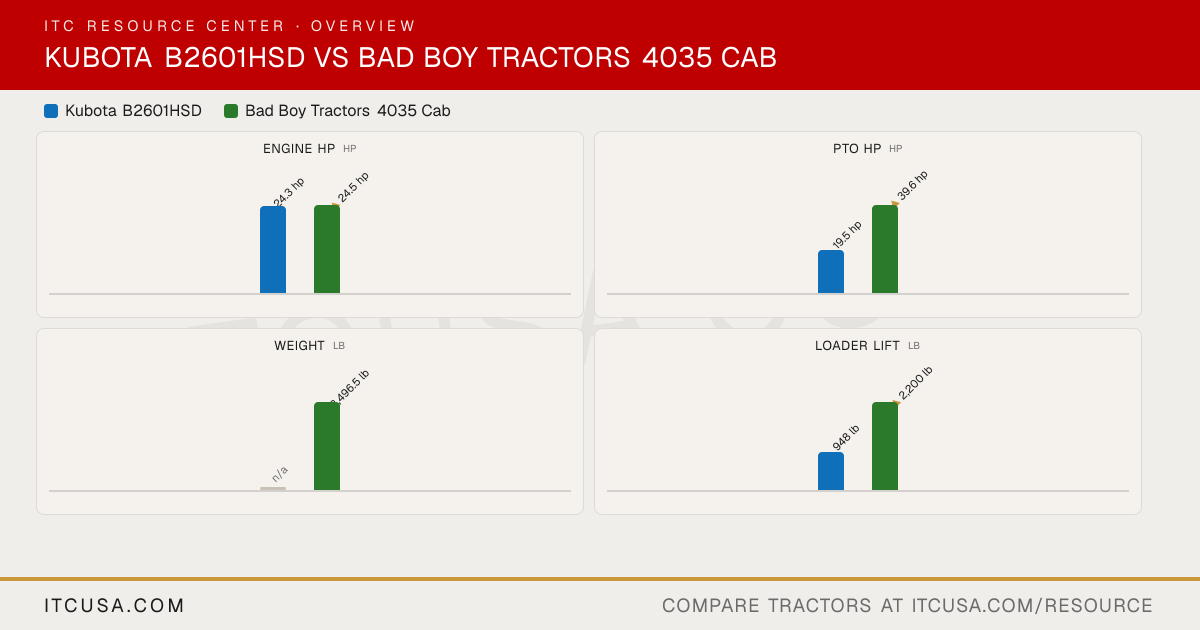

The headline numbers at a glance.

Kubota B2601HSDBad Boy Tractors 4035 Cab

Engine HPhp

24.3 hp

▲24.5 hp

PTO HPhp

19.5 hp

▲39.6 hp

Weightlb

n/a

3,496.5 lb

Loader Liftlb

948 lb

▲2,200 lb

3-Pt Lift (24 in)lb

1,290 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2601HSD	Bad Boy Tractors4035 Cab


PTO Power	19.5 hp	39.6 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Dual paper element	Not Published
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	Vertical, water cooled 4-cycle, diesel engine
Fuel System	diesel	Diesel fuel
Displacement	61.1 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2100 rpm
Cooling System Type	Pressurized radiator	Pressurized Radiator
Engine Manufacturer	Kubota	Not specified in source
Engine Power (Gross)	24.3 hp	24.5 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not explicitly published as a combined ROPS+loader figure in sources found. Tractor-only weight is 1,632 lb (740 kg).	Not Applicable
Weight with Cab and Loader	Not Applicable	3,551 lb (tractor only)
Tractor Weight (Base)	n/a	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	6-year powertrain warranty

Pump Type	Dual pump	Not Published
Steering Flow	Not Published	4.4 gpm
Implement Flow	8.3 gal/min total - open center dual pump system shared between steering and implement circuits; individual split not published	8.2 gpm
Total Hydraulic Flow	8.3 gpm 31.4 lpm	12.6 gpm (4.4+8.2)
Hydraulic System Type	open center	Not Published
Rear Remote Hydraulic Flow	8.3 gal/min (total system - individual remote valve flow not separately published)	Not Published
Overall Hydraulic Pump Flow	8.3 gpm	12.6 gpm
No. of Optional Remote Valves	1 (single rear remote is optional)	Optional (Up to 2)
No. of Standard Remote Valves	Not Published	Not Published
System Operating Pressure	n/a	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)

PTO Rear	540	540 rpm
PTO Type	Independent	Independent
Lift Control Type	position control	Position control
Hitch Lift Capacity	1808 lbs.	3,306.9 lb
Mid-PTO Availability	independent, 2500	Not Published
Category, 3-Point Hitch	I	Cat 1
Hitch Lift Capacity (at 24”)	1290 lb	2,425 lb

R3 Turf - Rear	22x8.50-12	Not Published
R3 Turf - Front	22x8.50-12	Not Published
Tire Size & Options	Ag (R1): 7-12 front / 11.2-16 rear; Turf (R3): 22x8.50-12 front / 22x8.50-12 rear; Industrial (R4): 23x8.50-12 front / 12-16.5 rear; also Goodyear R14 hybrid multi-purpose tire available	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20
R4 Industrial - Rear	12-16.5	43X16.00-20
R4 Industrial - Front	23x8.50-12	28X8.50-15
R1 Agricultural - Rear	11.2-16	11.2-24 8PR
R1 Agricultural - Front	7-12	7-16 6PR

Coolant Capacity	4.0 qts.	5.0 ℓ (1.32 u.s. gal)
Crankcase Capacity	3.3 qts.	4.3 ℓ (1.14 u.s. gal)
Fuel Tank Capacity	6.1 gal	27 ℓ (7.13 u.s. gal)
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	4.0 gal	HST: 9.77 gal

Loader Lift Height	78.5 in.	104 in
Loader Breakout Force	2146 lbs.	3,660 lb
Quick Attach Loader System	LA435 Swift-Tach Loader (1-lever Quick Coupler)	SSQA
Loader Lift Capacity (Full Height)	948 lbs.	2,200 lb (at pivot pin)

Clutch	N/A	None (HST)
No. of Speeds	3 ranges (HST)	3 Range
Transmission Type	HST (3 ranges)	HST (Hydrostatic Transmission) with range shift
Max Travel Speed (Forward)	0-12.7 mph (0-12.7 mph)	18.21 mph (range C)
Max Travel Speed (Reverse)	0-9.5 mph (0-9.5 mph)	18.21 mph
Differential Lock & Limited Slip Options	Standard	Differential lock

Brakes	Wet disc brakes	Wet multi-disc
Steering	Power steering	Fully hydraulic power steering
Frame Type	Not explicitly published in sources found. Tractor uses standard compact utility tractor chassis construction.	Not Published
Front Axle Type	Four-wheel drive	Not Published
Drawbar Capacity	Drawbar included as standard; rated capacity not published in sources found	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	High-back seat with armrests; adjustable tilt-steering wheel; seat is not described as having mechanical suspension	Not Published

Wheelbase	61.4 inches 61 in	65.79 in
Overall Width	49 in.	ROPS: 57.13 in, Cabin: 55.63 in
Ground Clearance	12.8 in.	ROPS: 13.19 in, Cabin: 13.50 in
Height to Top of ROPS	85.0 in.	ROPS: 104.06 in, Cabin: 88.9 in
Height to Top of Cab Model	Not Applicable	86 in
Height to Top of ROPS (folded)	85 in - this is the standing/unfolded height; folded height not separately published in sources found	Not Applicable
Min. Turn Radius without Brakes	6.9 feet (2.1 m)	Not Published
Overall Length with 3-Point Hitch	94.9 in.	134.88 in
Overall Length	n/a	134.88 in
