Kubota B2601HSD vs Kioti CK2610 | Side-by-side comparison | ITC Resource Center
Compare Tractors

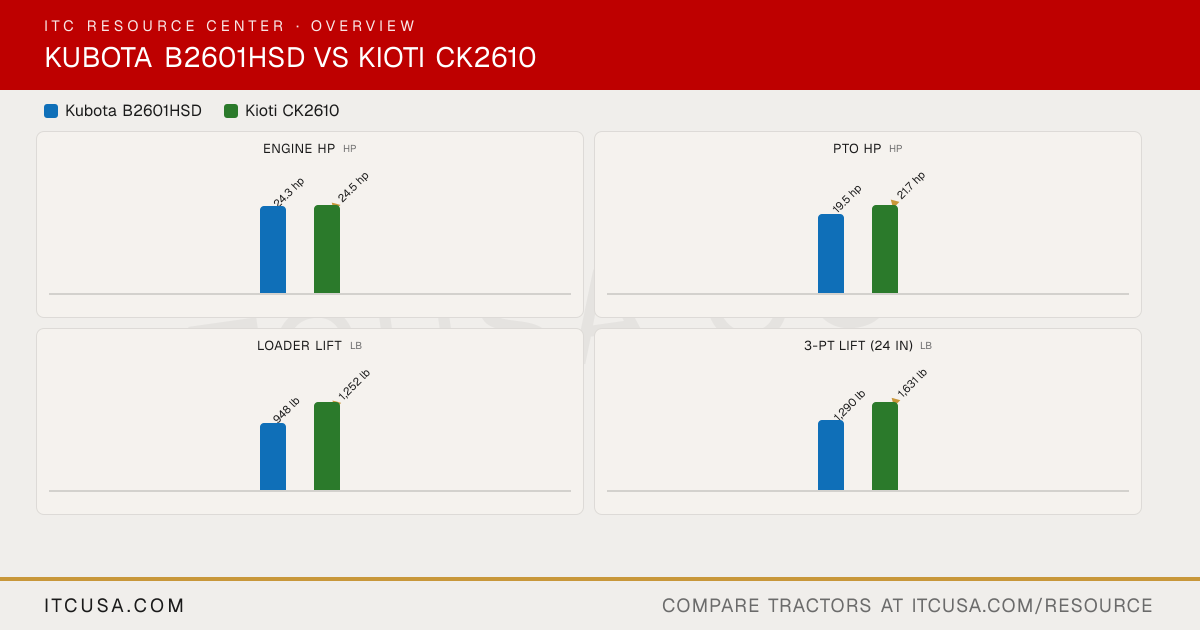

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaB2601HSD
KiotiCK2610
PTO Power
19.5 hp
21.7 hp
Alternator
Not Published
Not Published
Air Cleaner
Dual paper element
Not Published
Engine Type
E-TVCS, liquid cooled, 3-cylinder diesel
Liquid-cooled, diesel
Fuel System
diesel
Not Published
Displacement
61.1 in³
100.5 in³
No. of Cylinders
3
3
Rated Engine Speed
2800 rpm
2600 rpm
Cooling System Type
Pressurized radiator
Liquid-cooled
Engine Manufacturer
Kubota
KIOTI (Daedong)
Engine Power (Gross)
24.3 hp
24.5 hp
Engine Emissions Constraints
Tier 4
Tier 4
Weight with ROPS and Loader
Not explicitly published as a combined ROPS+loader figure in sources found. Tractor-only weight is 1,632 lb (740 kg).
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
Pump Type
Dual pump
Not Published
Steering Flow
Not Published
Not Published
Implement Flow
8.3 gal/min total - open center dual pump system shared between steering and implement circuits; individual split not published
Not Published
Total Hydraulic Flow
8.3 gpm 31.4 lpm
11.7 gpm
Hydraulic System Type
open center
Open center
Rear Remote Hydraulic Flow
8.3 gal/min (total system - individual remote valve flow not separately published)
Not Published
Overall Hydraulic Pump Flow
8.3 gpm
11.7 gpm
No. of Optional Remote Valves
1 (single rear remote is optional)
Not Published
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540
540 rpm
PTO Type
Independent
Live
Lift Control Type
position control
Position control
Hitch Lift Capacity
1808 lbs.
1,631 lb (at 24 in)
Mid-PTO Availability
independent, 2500
Optional
Category, 3-Point Hitch
I
Category 1
Hitch Lift Capacity (at 24”)
1290 lb
1,631 lb
R3 Turf - Rear
22x8.50-12
41X14-20
R3 Turf - Front
22x8.50-12
28X8.5-15
Tire Size & Options
Ag (R1): 7-12 front / 11.2-16 rear; Turf (R3): 22x8.50-12 front / 22x8.50-12 rear; Industrial (R4): 23x8.50-12 front / 12-16.5 rear; also Goodyear R14 hybrid multi-purpose tire available
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
12-16.5
15-19.5
R4 Industrial - Front
23x8.50-12
27X8.5-15
R1 Agricultural - Rear
11.2-16
11.2-24
R1 Agricultural - Front
7-12
7-16
Coolant Capacity
4.0 qts.
Not Published
Crankcase Capacity
3.3 qts.
Not Published
Fuel Tank Capacity
6.1 gal
9.0 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
4.0 gal
Not Published
Loader Lift Height
78.5 in.
98.4 in
Loader Breakout Force
2146 lbs.
2,110 lb
Quick Attach Loader System
LA435 Swift-Tach Loader (1-lever Quick Coupler)
Quick-attach (QA) bucket
Loader Lift Capacity (Full Height)
948 lbs.
1,252 lb
Clutch
N/A
Dry dual stage
No. of Speeds
3 ranges (HST)
9F/3R
Transmission Type
HST (3 ranges)
9-speed gear
Max Travel Speed (Forward)
0-12.7 mph (0-12.7 mph)
10.08 mph
Max Travel Speed (Reverse)
0-9.5 mph (0-9.5 mph)
9.6 mph
Differential Lock & Limited Slip Options
Standard
Mechanical rear
Brakes
Wet disc brakes
Wet multi-disc
Steering
Power steering
Hydrostatic Power Steering
Frame Type
Not explicitly published in sources found. Tractor uses standard compact utility tractor chassis construction.
Not Published
Front Axle Type
Four-wheel drive
4WD
Drawbar Capacity
Drawbar included as standard; rated capacity not published in sources found
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
High-back seat with armrests; adjustable tilt-steering wheel; seat is not described as having mechanical suspension
Fully Adjustable Suspension Seat
Wheelbase
61.4 inches 61 in
65.7 in
Overall Width
49 in.
55.1 in (R1); 63.1 in (R4)
Ground Clearance
12.8 in.
13.4 in
Height to Top of ROPS
85.0 in.
99.2 in
Height to Top of Cab Model
Not Applicable
Not Published
Height to Top of ROPS (folded)
85 in - this is the standing/unfolded height; folded height not separately published in sources found
