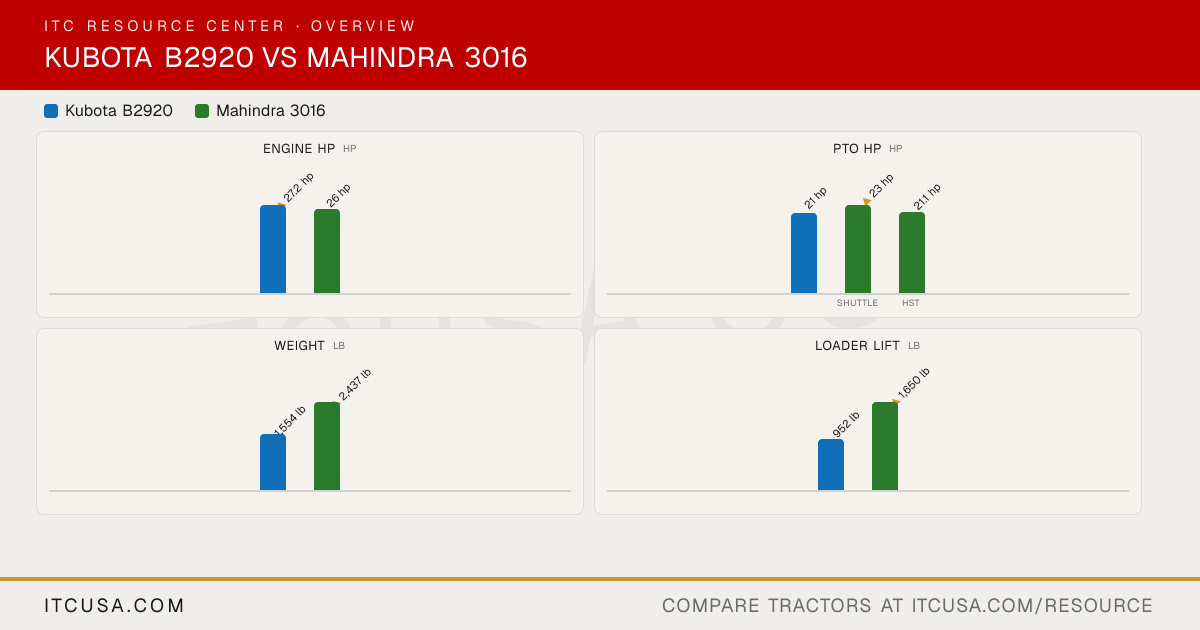

▶ EngineEngine Manufacturer Kubota Mitsubishi Engine Model D1305-E3-D22 Not Published Engine Type 3-cylinder, liquid-cooled diesel (E-TVCS) 3-cylinder, four-cycle, valve in cylinder head, cross-flow porting diesel No. of Cylinders 3 3 Displacement 77.0 in³ 80.43 in³ Rated Engine Speed 2800 rpm 2600 rpm Engine Power (Gross) 27.2 hp 26 hp PTO Power 21 hp Shuttle: 23 hp; HST: 21.1 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled, pressurized radiator Liquid-cooled, pressurized, thermostat controlled bypass, impeller pump Air Cleaner Not Published Dry type with double filter Fuel System Indirect injection Indirect injection; Bosch M-type ND-PFR (Denso) injection pump, throttle-type injectors Alternator 14.5 A, 12 V 50 A ▶ HydraulicsPump Type Dual pump Gear type, front mounted, engine driven Implement Flow 4.7 gpm 7.8 gpm Steering Flow 3.6 gpm 3.4 gpm Total Hydraulic Flow 8.3 gpm 11.2 gpm (7.8 + 3.4, computed) Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 or 2 Not Published No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 6.9 gal Not Published Coolant Capacity 4.1 qt Not Published Crankcase Capacity 3.7 qt Not Published Transmission / Hydraulic System Capacity 4.0 gal Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Live Independent (3016 Gear Drive); Live (3016 Hydrostatic Drive) PTO Rear 540/960 rpm 540 rpm @ 2376 rpm Mid-PTO Availability 2500 rpm (USA No. 5, Kubota 10-tooth) Optional; 2000 rpm @ 2525 rpm Category, 3-Point Hitch Category I CAT I Hitch Lift Capacity 1,356 lb Not Published Hitch Lift Capacity (at 24”) 1,058 lb 1,720 lb Lift Control Type Quarter inching valve Position control ▶ Transmission & DrivetrainTransmission Type Main-hydrostatic transmission, 3-range Synchro shuttle, constant-mesh main, two ranges (3016 Gear Drive); hydrostatic, three ranges (3016 Hydrostatic Drive) No. of Speeds 3-range (3 forward, 3 reverse) 8F/8R (3016 Gear Drive); infinite, 3 ranges (3016 Hydrostatic Drive) Max Travel Speed (Forward) 12.6 mph 11.9 mph (3016 Gear Drive); 13.8 mph (3016 Hydrostatic Drive) Max Travel Speed (Reverse) 10.0 mph 9.9 mph (3016 Gear Drive); 6.9 mph (3016 Hydrostatic Drive) Clutch Not Published Dry single disc, diaphragm type, 8.46 in Differential Lock & Limited Slip Options Differential lock standard Mechanical differential lock, pedal actuated ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS (sunshade optional) Not Published Steering Integral type power steering Hydrostatic power steering Brakes Wet disk type Wet disc, mechanical Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published MFD, spiral bevel gear type differential with bevel gear reductions Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 969 lbf ▶ Dimensions & ManeuverabilityOverall Width 49.0 in 63 in Wheelbase 61.5 in 67.3 in Ground Clearance 12.8 in 11.4 in Min. Turn Radius without Brakes 6.9 ft (with brake applied) 94.5 in (with brake applied) Height to Top of ROPS 85.0 in 81.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 95.1 in (without 3-point hitch) 121.3 in (to end of lower link) ▶ WeightTractor Weight (Base) 1,554 lb 2,437 lb (3016 Gear Drive); 2,459 lb (3016 Hydrostatic Drive) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard farm 7-12 front, 11.2-16 rear Not Published R1 Agricultural - Front 7-12 7x16 R1 Agricultural - Rear 11.2-16 11.2x24 R3 Turf - Front Not Published 25x8.5-14 R3 Turf - Rear Not Published 13.6x16 R4 Industrial - Front 23x8.50-12 27x8.50-15 R4 Industrial - Rear 12-16.5 15x19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model LA364 ML115 Loader Lift Height LA364: 78.5 in (at pivot pin) ML115: 99 in Loader Lift Capacity (Full Height) LA364: 952 lb (at pivot pin) ML115: 1,650 lb (at pivot pin) Loader Breakout Force LA364: 2,144 lbf (at pivot pin) ML115: 2,350 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
