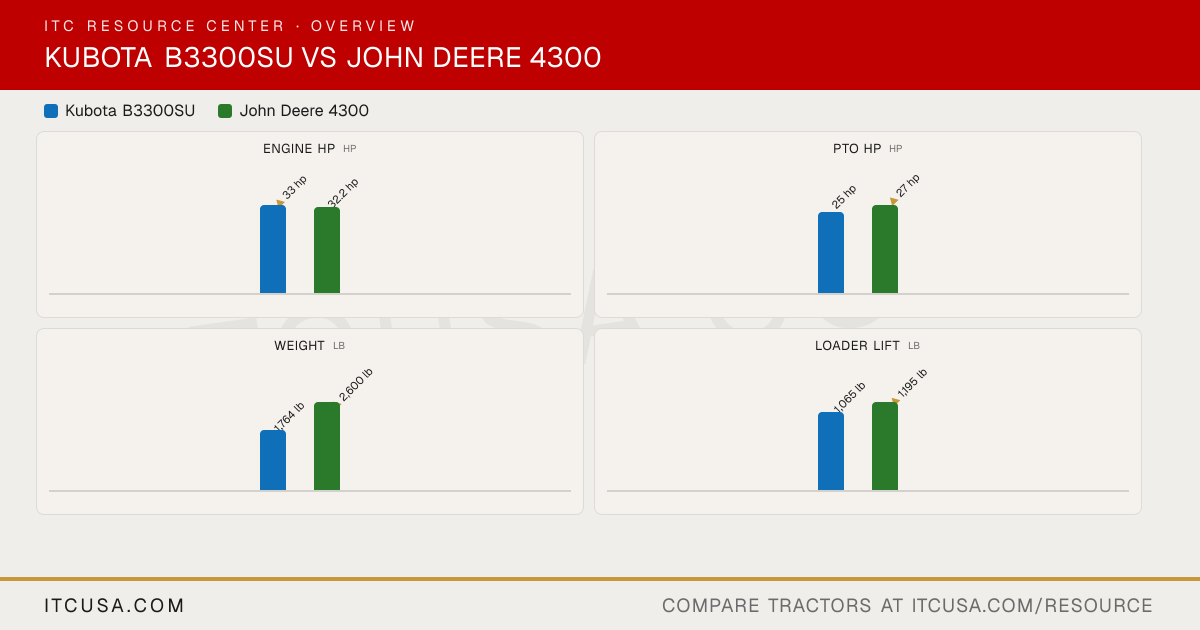

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model V1505-E3-D24H 3TNE84 Engine Type Indirect injection, vertical, water-cooled, 4-cycle diesel 3-cylinder liquid-cooled diesel, direct injection No. of Cylinders 4 3 Displacement 91.5 in³ 91.3 in³ Rated Engine Speed 2700 rpm 2700 rpm Engine Power (Gross) 33 hp 32.2 hp PTO Power 25 hp 27 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dual paper element Dry type with safety element Fuel System Indirect injection Direct injection, self bleeding, in-line fuel pump with electric shutoff Alternator 14.5 A, 12 V 40 A ▶ HydraulicsPump Type Not Published Dual gear pump Implement Flow 6.7 gpm 8.3 gpm Steering Flow 3.2 gpm 5.0 gpm Total Hydraulic Flow 9.9 gpm 13.3 gpm Overall Hydraulic Pump Flow 9.9 gpm 13.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves 1 (optional rear valve) Not Published ▶ Fluid CapacityFuel Tank Capacity 8.1 gal 10.0 gal Coolant Capacity 4.7 qt 6.1 qt Crankcase Capacity 5.7 qt 4.5 qt Transmission / Hydraulic System Capacity 3.83 gal 6.3 gal (gear); 6.8 gal (hydrostatic) Front Axle Fluid Capacity Not Published 4.7 qt ▶ PTO & HitchPTO Type Live Independent, wet disk clutch and brake PTO Rear 540 rpm 540 rpm Mid-PTO Availability None (no mid-PTO) Available, 2100 rpm Category, 3-Point Hitch Category I Category 1 Hitch Lift Capacity 1786 lb Not Published Hitch Lift Capacity (at 24”) 1400 lb 2200 lb Lift Control Type Quarter inching valve Not Published ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission, 3-range SyncShift 9F/3R gear (2WD and 4WD); SyncReverser 12F/12R (4WD only); hydrostatic 3-range (2WD and 4WD) No. of Speeds 3-range 9 forward, 3 reverse (SyncShift); 12 forward, 12 reverse (SyncReverser); infinite forward and reverse, 3 ranges (hydrostatic) Max Travel Speed (Forward) 11.9 mph 15.6 mph (SyncShift); 15.6 mph (SyncReverser); 15.5 mph (hydrostatic) Max Travel Speed (Reverse) 9.5 mph 7.7 mph (SyncShift); 15.5 mph (hydrostatic) Clutch Dry single plate One multi-disk wet clutch, 4.88 in (SyncShift); two multi-disk wet clutches, 4.88 in (SyncReverser) Differential Lock & Limited Slip Options Rear differential lock standard Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS (sunshade optional) Two-post fixed ROPS standard, folding ROPS optional; two- or four-wheel drive Steering Integral type power steering Power steering, cylinder-assisted Brakes Wet disc type Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published 2WD standard; mechanical front wheel drive (MFWD) optional, all ranges Front Axle Rating Not Published 1588 to 3197 lb Drawbar Capacity 1100 lb 562 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 99.2 in (w/o 3P) (without 3-point hitch) 117 in Overall Width 53.7 in 50.0 in (minimum); 66.7 in (maximum) Wheelbase 66.8 in 68.0 in Ground Clearance 14.6 in 13.4 in (rear axle) Min. Turn Radius without Brakes 7.9 ft (w/brake) (with brake applied) Not Published Height to Top of ROPS 88.4 in 84.0 in (standard ROPS); 90.0 in (folding ROPS) Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1764 lb (farm tires); 1786 lb (industrial tires) 2600 lb (2WD); 2900 lb (MFWD) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Front: 5.00-15 F2 (2WD), 7.00-14 or 7.00-16 R1, 25x8.50-14 R4, 27x8.50-15 R3, 25-10.50LLx15 golf; rear: 11.2-24 or 12.4-24 R1, 11.2-24 or 41x14.00-20 R3, 15.00-19.5 R4, 41LLx18.00-16 golf R1 Agricultural - Front 7-12 5.00-15 (2WD, F2); 7.00-14 or 7.00-16 (MFWD) R1 Agricultural - Rear 12.4-16 11.2-24 or 12.4-24 R3 Turf - Front Not Published 27x8.50-15 (2WD); 7.00-14 (MFWD) R3 Turf - Rear 13.6-16 41x14.00-20 or 11.2-24 R4 Industrial - Front Not Published 25x8.50-14 R4 Industrial - Rear Not Published 15.00-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model LA504 420; 430 Loader Lift Height LA504: 82.6 in 420: 87.6 in; 430: 101.4 in Loader Lift Capacity (Full Height) LA504: 1065 lb 420: 1195 lb; 430: 1258 lb (to max height at pivot point) Loader Breakout Force Not Published 420: 2693 lbf; 430: 3299 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
