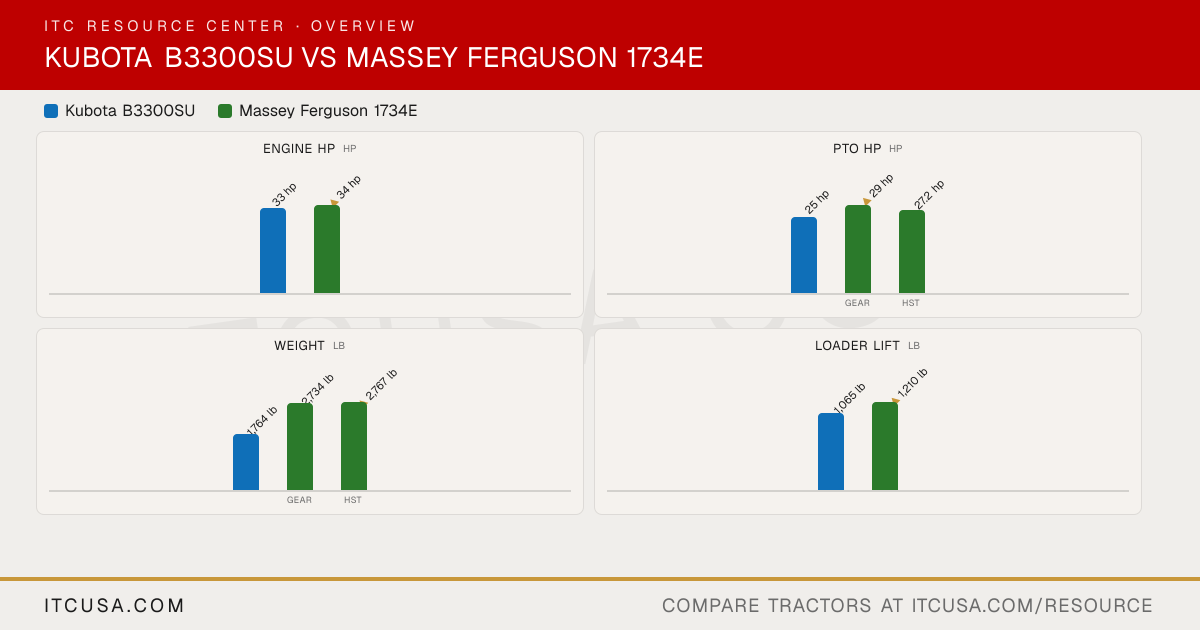

▶ EngineEngine Manufacturer Kubota Shibaura Engine Model V1505-E3-D24H N843T-F Engine Type Indirect injection, vertical, water-cooled, 4-cycle diesel 3-cylinder diesel, liquid-cooled, turbocharged No. of Cylinders 4 3 Displacement 91.5 in³ 91.5 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 33 hp 34 hp PTO Power 25 hp Gear: 29 hp; HST: 27.2 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dual paper element Not Published Fuel System Indirect injection Turbocharged, indirect low-pressure injection Alternator 14.5 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Gear-type pump Implement Flow 6.7 gpm Not Published Steering Flow 3.2 gpm 3.8 gpm Total Hydraulic Flow 9.9 gpm 10.5 gpm Overall Hydraulic Pump Flow 9.9 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 6.7 gpm No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 (optional rear valve) Up to 2 ▶ Fluid CapacityFuel Tank Capacity 8.1 gal 10.0 gal Coolant Capacity 4.7 qt 1.32 gal Crankcase Capacity 5.7 qt 1.22 gal Transmission / Hydraulic System Capacity 3.83 gal 10.04 gal Front Axle Fluid Capacity Not Published 1.48 gal ▶ PTO & HitchPTO Type Live Not Published PTO Rear 540 rpm 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability None (no mid-PTO) Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1786 lb 2,205 lb Hitch Lift Capacity (at 24”) 1400 lb 1,600 lb Lift Control Type Quarter inching valve Not Published ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission, 3-range 9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic No. of Speeds 3-range Gear: 9F / 3R; HST: 3-range infinite Max Travel Speed (Forward) 11.9 mph Not Published Max Travel Speed (Reverse) 9.5 mph Not Published Clutch Dry single plate Gear: dry single disc Differential Lock & Limited Slip Options Rear differential lock standard Mechanical engagement via heel pedal ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS (sunshade optional) Not Published Steering Integral type power steering Power steering Brakes Wet disc type Internal wet brakes, single brake pedal on HST, two brake pedals on gear models Seat Suspension & Adjustability Not Published Suspended vinyl seat with retractable seatbelt, fixed steering wheel Front Axle Type Not Published Cast steel 4WD front axle with center drive line and bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity 1100 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 99.2 in (w/o 3P) (without 3-point hitch) 116.0 in (w/o 3-point linkage) (without 3-point hitch) Overall Width 53.7 in 52.4 in Wheelbase 66.8 in 65.9 in Ground Clearance 14.6 in Not Published Min. Turn Radius without Brakes 7.9 ft (w/brake) (with brake applied) Not Published Height to Top of ROPS 88.4 in 97.6 in Height to Top of ROPS (folded) Not Published 63.8 in Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1764 lb (farm tires); 1786 lb (industrial tires) Gear: 2,734 lb; HST: 2,767 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R3 Turf, R4 Industrial R1 Agricultural - Front 7-12 Not Published R1 Agricultural - Rear 12.4-16 Not Published R3 Turf - Front Not Published 27x8.50-15 R3 Turf - Rear 13.6-16 38x14.00-20 R4 Industrial - Front Not Published 27x8.50-15 R4 Industrial - Rear Not Published 15x19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published L105E: skid steer or pin-type implement attachments Loader Model LA504 L105E Loader Lift Height LA504: 82.6 in L105E: 95.7 in Loader Lift Capacity (Full Height) LA504: 1065 lb L105E: 1,210 lb Loader Breakout Force Not Published L105E: 1,460 lb ▶ WarrantyWarranty Length & Coverage Not Published 5-year powertrain warranty
