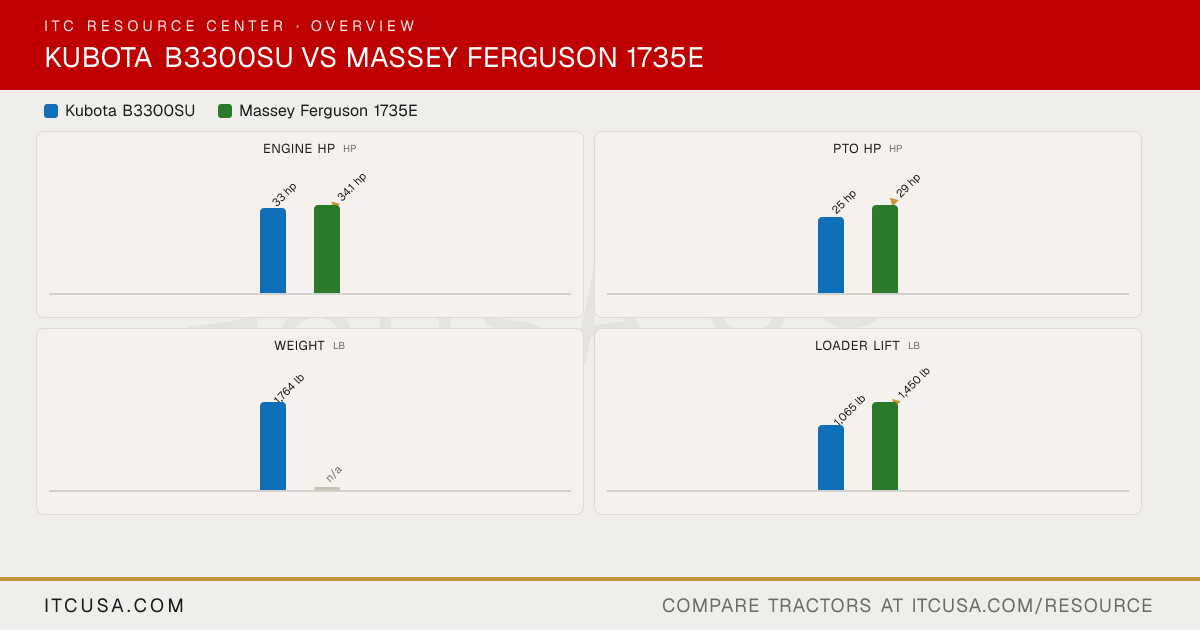

▶ EngineEngine Manufacturer Kubota Shibaura Engine Model V1505-E3-D24H Not Published Engine Type Indirect injection, vertical, water-cooled, 4-cycle diesel 3-cylinder turbocharged diesel, liquid-cooled No. of Cylinders 4 3 Displacement 91.5 in³ 91.3 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 33 hp 34.1 hp PTO Power 25 hp 29 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dual paper element Dry Fuel System Indirect injection Indirect injection Alternator 14.5 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Dual engine-driven gear pumps Implement Flow 6.7 gpm Not Published Steering Flow 3.2 gpm Not Published Total Hydraulic Flow 9.9 gpm 9.7 gpm Overall Hydraulic Pump Flow 9.9 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 (optional rear valve) 2 ▶ Fluid CapacityFuel Tank Capacity 8.1 gal Not Published Coolant Capacity 4.7 qt Not Published Crankcase Capacity 5.7 qt Not Published Transmission / Hydraulic System Capacity 3.83 gal Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Live 8x8 Synchro Shuttle: independent; HST: transmission driven PTO Rear 540 rpm 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability None (no mid-PTO) Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1786 lb Not Published Hitch Lift Capacity (at 24”) 1400 lb 1,598 lb Lift Control Type Quarter inching valve Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission, 3-range 8 x 8 synchro shuttle or 3-range hydrostatic No. of Speeds 3-range 8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite Max Travel Speed (Forward) 11.9 mph Not Published Max Travel Speed (Reverse) 9.5 mph Not Published Clutch Dry single plate Not Published Differential Lock & Limited Slip Options Rear differential lock standard Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS (sunshade optional) Not Published Steering Integral type power steering Power steering Brakes Wet disc type Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 1100 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 99.2 in (w/o 3P) (without 3-point hitch) Not Published Overall Width 53.7 in Not Published Wheelbase 66.8 in Not Published Ground Clearance 14.6 in Not Published Min. Turn Radius without Brakes 7.9 ft (w/brake) (with brake applied) Not Published Height to Top of ROPS 88.4 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1764 lb (farm tires); 1786 lb (industrial tires) Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural, R4 Industrial R1 Agricultural - Front 7-12 7-16 R1 Agricultural - Rear 12.4-16 11.2-24 R3 Turf - Front Not Published Not Published R3 Turf - Rear 13.6-16 Not Published R4 Industrial - Front Not Published 27x8.50-15 R4 Industrial - Rear Not Published 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published FLx2407: pin-on (skid steer quick attach optional) Loader Model LA504 FLx2407 Loader Lift Height LA504: 82.6 in FLx2407: 94.3 in Loader Lift Capacity (Full Height) LA504: 1065 lb FLx2407: 1,450 lb Loader Breakout Force Not Published FLx2407: 2,288 lb ▶ WarrantyWarranty Length & Coverage Not Published 5-year powertrain warranty
