Kubota B3350SU vs Kubota LX3310 | Side-by-side comparison | ITC Resource Center
Compare Tractors

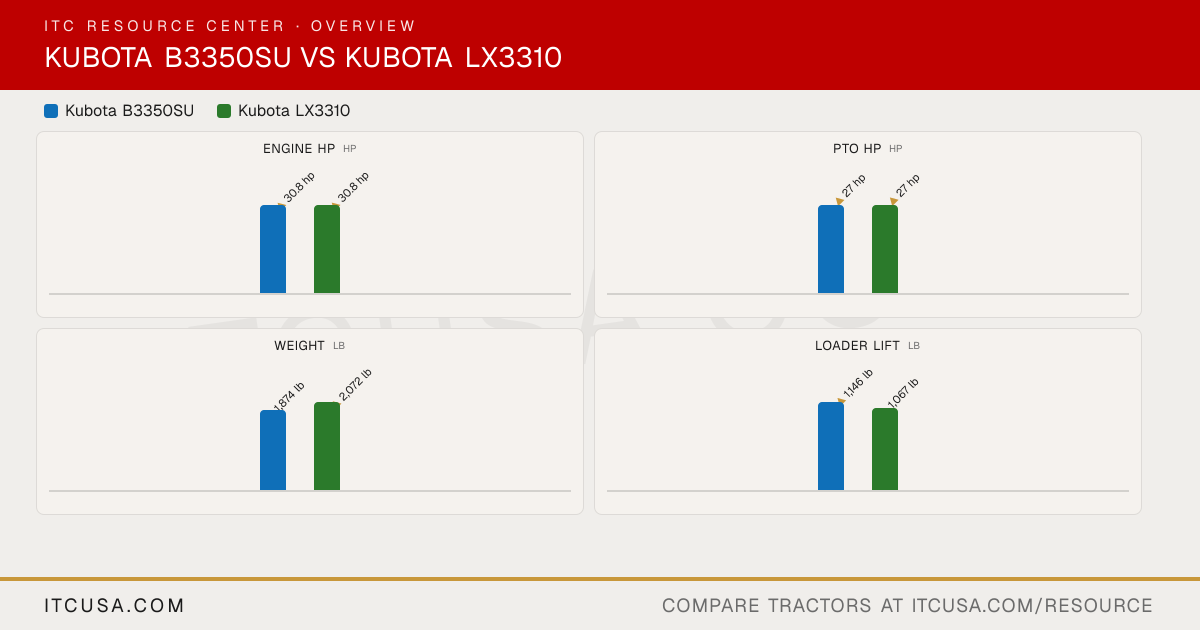

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaB3350SU
KubotaLX3310
Engine Manufacturer
Kubota
Kubota
Engine Model
V1505-T-E4-D26-R
V1505-CR-TE5-D36R1
Engine Type
E-TVCS, liquid cooled, 4-cylinder diesel
E-CDIS, liquid cooled, 4-cylinder, diesel
No. of Cylinders
4
4
Displacement
91.5 in³
91.5 in³
Rated Engine Speed
2500 rpm
2500 rpm
Engine Power (Gross)
30.8 hp
30.8 hp
PTO Power
27 hp
27 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Pressurized radiator
Pressurized radiator
Air Cleaner
4.5 in dual paper element
6.0 in Dual paper element
Fuel System
Indirect injection
Common Rail System (CRS)
Alternator
60 A, 12 V
60 A, 12 V
Pump Type
Dual pump
Dual pump
Implement Flow
5 gpm
5.0 gpm
Steering Flow
3.7 gpm
3.7 gpm
Total Hydraulic Flow
8.7 gpm
8.7 gpm
Overall Hydraulic Pump Flow
8.7 gpm
8.7 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
5.0 gpm
Not Published
No. of Standard Remote Valves
1
0
No. of Optional Remote Valves
Not Published
Optional, up to 2
Fuel Tank Capacity
7.3 gal
7.1 gal
Coolant Capacity
4.5 qt
4.5 qt
Crankcase Capacity
5.1 qt
5.0 qt
Transmission / Hydraulic System Capacity
4.0 gal
4.0 gal
Front Axle Fluid Capacity
5.0 qt
5.0 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
2500 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2139 lb
2139 lb
Hitch Lift Capacity (at 24”)
1676 lb
1676 lb
Lift Control Type
Quarter inching valve
Position control valve
Transmission Type
HST (3 ranges)
Hydrostatic transmission
No. of Speeds
3 ranges (HST)
3 ranges
Max Travel Speed (Forward)
14.3 mph
13.6 mph
Max Travel Speed (Reverse)
11.4 mph
10.3 mph
Clutch
N/A (hydrostatic transmission)
Not Published
Differential Lock & Limited Slip Options
Differential lock standard
Differential lock standard
Frame Type
Two-post foldable ROPS
Not Published
Steering
Hydraulic power steering
Hydraulic power steering
Brakes
Multi-plate wet disc
Multi-plate wet disc
Seat Suspension & Adjustability
Coil spring suspension seat
Deluxe high-back suspension seat
Front Axle Type
4WD, selectable (front wheel drive lever)
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Max. drawbar load: 1100 lb
1100 lb
Overall Length with 3-Point Hitch
101.2 in (without 3-point hitch)
101.8 in (without 3-point hitch)
Overall Width
53.7 in
53.7 in
Wheelbase
65.6 in
65.6 in
Ground Clearance
14.6 in
14.6 in
Min. Turn Radius without Brakes
6.9 ft (with brake applied)
6.9 ft (with brake applied)
Height to Top of ROPS
88.4 in
88.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
84.6 in
Tractor Weight (Base)
1874 lb
2072 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R4 Industrial, R14
R1 Agricultural - Front
7-12
7.0-12
R1 Agricultural - Rear
12.4-16
12.4-16
R3 Turf - Front
24x8.50-14
24x8.50-14
R3 Turf - Rear
13.6-16
13.6-16
R4 Industrial - Front
23x8.50-14 or 25x8.50-14
23X8.50-14 / 25X8.50-14
R4 Industrial - Rear
12.4-16 or 15-19.5
12.4-16 / 15-19.5
Quick Attach Loader System
LA534A loader; 2-lever quick coupler optional
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
LA534A
LA535
Loader Lift Height
84.6 in
84 in
Loader Lift Capacity (Full Height)
1146 lb
1067 lb
Loader Breakout Force
2321 lbf
2245 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
