Kubota BX1880 vs Kubota B2301HSD | Side-by-side comparison | ITC Resource Center
Compare Tractors

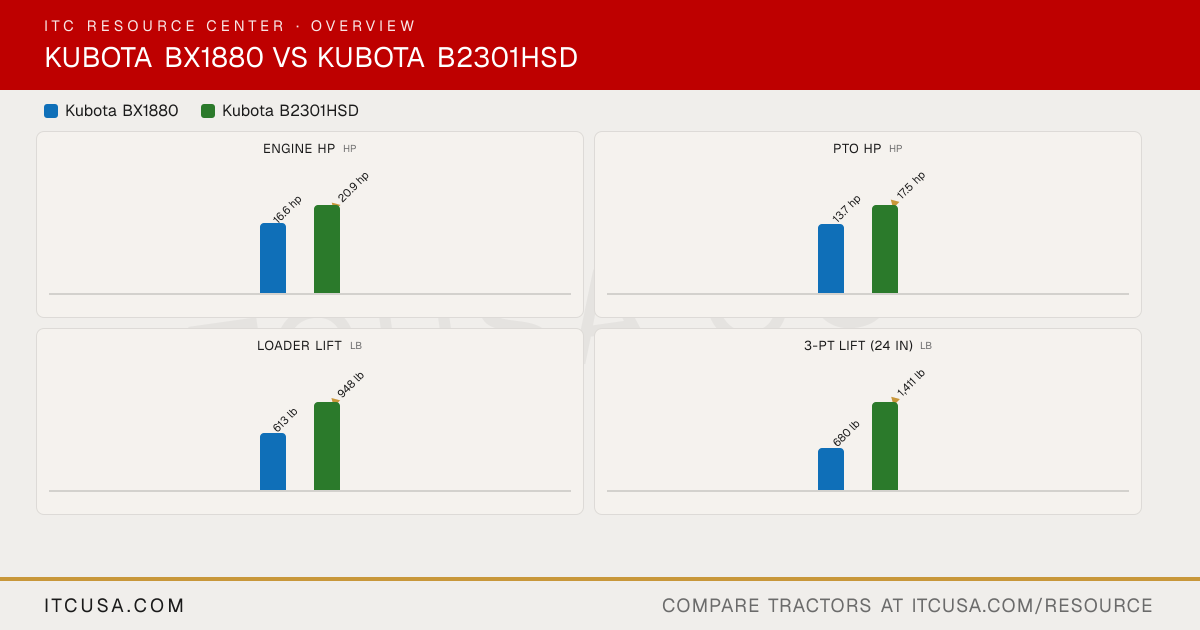

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaBX1880
KubotaB2301HSD
PTO Power
13.7 hp
17.5 hp
Alternator
40 A, 12 V
Not Published
Air Cleaner
Sheet net and replaceable treated paper element, spin on oil filter
Dual paper element
Engine Type
Liquid cooled, 4-cycle, diesel
E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System
Direct injection
Not Published
Displacement
43.9 in³
61.1 in³
No. of Cylinders
3
3
Rated Engine Speed
3200 rpm
2800 rpm
Cooling System Type
Water with pressurized radiator, reverse air-flow design
Pressurized radiator
Engine Manufacturer
Kubota
Kubota
Engine Power (Gross)
16.6 hp
20.9 hp
Engine Emissions Constraints
Not Published
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Open center tandem pump gear type
Dual pump
Steering Flow
1.0 gpm
Not Published
Implement Flow
5.2 gpm
Not Published
Total Hydraulic Flow
6.2 gpm
8.3 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.2 gpm
8.3 gpm
No. of Optional Remote Valves
2 (optional; ISO 7241-1 series A or B)
Not Published
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
STD (540 rpm)
540 rpm
PTO Type
Live independent PTO (with hydraulic clutch)
Independent
Lift Control Type
Not Published
Position control valve
Hitch Lift Capacity
Not Published
1808 lb
Mid-PTO Availability
STD (2500 rpm)
2500 rpm
Category, 3-Point Hitch
SAE Category I Optional
Category I
Hitch Lift Capacity (at 24”)
680 lb
1411 lb
R3 Turf - Rear
24X12-12
Not Published
R3 Turf - Front
16X7.5-8
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf
R1 Agricultural
R4 Industrial - Rear
Not Applicable
Not Published
R4 Industrial - Front
Not Applicable
Not Published
R1 Agricultural - Rear
24X12-12
9.5-16
R1 Agricultural - Front
16X7.5-8
8.0-12
Coolant Capacity
Not Published
4.0 qt
Crankcase Capacity
Not Published
3.3 qt
Fuel Tank Capacity
6.6 gal
6.1 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
4.0 gal
Loader Lift Height
70.7 in
78.5 in
Loader Breakout Force
1,286 lbf (bucket pivot pin)
2146 lb
Quick Attach Loader System
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
