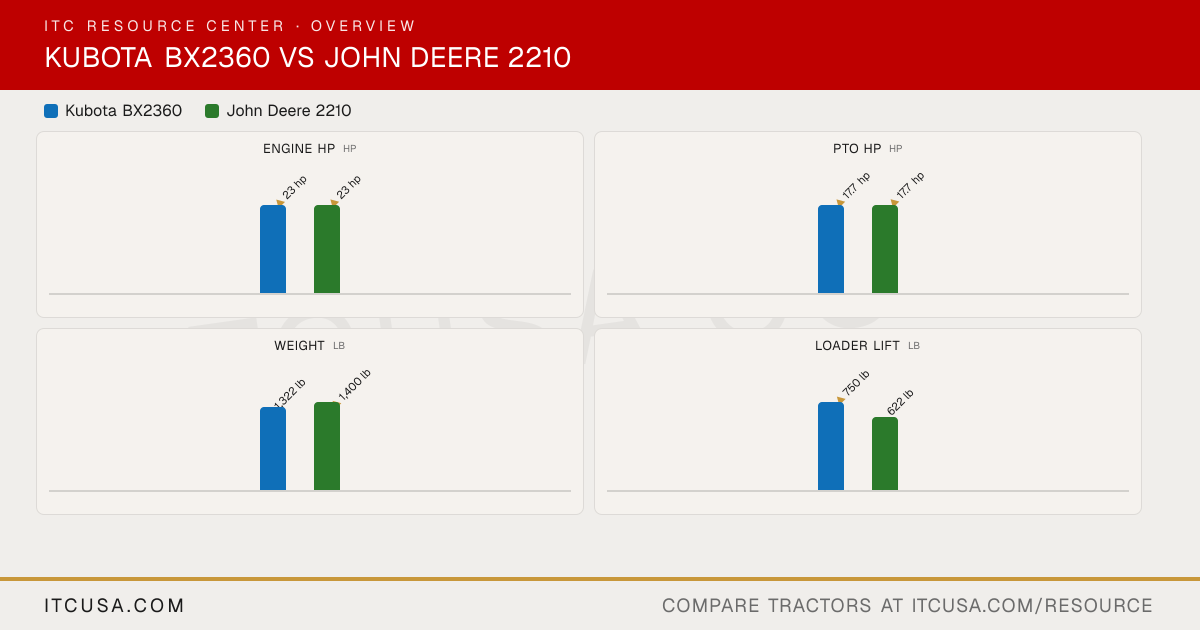

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D902 3TNE74 Engine Type Liquid-cooled, 3-cylinder diesel 3-cylinder liquid-cooled diesel, indirect injection No. of Cylinders 3 3 Displacement 54.8 in³ 61.4 in³ Rated Engine Speed 3200 rpm 3000 rpm Engine Power (Gross) 23 hp 23 hp PTO Power 17.7 hp 17.7 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Dry type with safety element Fuel System Indirect injection Indirect injection, in-line fuel pump with solenoid shutoff Alternator 40 A, 12 V 20 A ▶ HydraulicsPump Type Not Published Not Published Implement Flow Not Published 3 gpm Steering Flow Not Published 2.5 gpm Total Hydraulic Flow 6.3 gpm 5.5 gpm Overall Hydraulic Pump Flow 6.3 gpm 5.5 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 5.0 gal Coolant Capacity 2.8 qt 3.2 qt Crankcase Capacity 3.3 qt 2.2 qt Transmission / Hydraulic System Capacity 3.06 gal 3.4 gal Front Axle Fluid Capacity Not Published 2.6 qt ▶ PTO & HitchPTO Type Live independent, wet hydraulic clutch Independent, wet disk clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Standard mid-PTO, 2500 rpm Standard, 2100 rpm Category, 3-Point Hitch Category I Category 1 Hitch Lift Capacity 1210 lb Not Published Hitch Lift Capacity (at 24”) 670 lb 701 lb Lift Control Type Directional control with auto-return lever Not Published ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission with High-Low gear shift, 2-range 2-range hydrostatic No. of Speeds 2-range Infinite forward and reverse, 2 ranges Max Travel Speed (Forward) 8.4 mph 8.4 mph Max Travel Speed (Reverse) 6.2 mph 6.3 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Rear differential lock standard Not Published ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS (foldable ROPS on BX25 only) Two-post fixed ROPS; four-wheel drive Steering Hydrostatic power steering Power steering Brakes Wet disc Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Selectable 2WD and 4WD Mechanical front wheel drive (MFWD), standard, all ranges, engages on the go Front Axle Rating Not Published 3120 lb Drawbar Capacity Not Published 562 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 95.5 in 104.3 in Overall Width 44.5 in 47.2 in Wheelbase 55.1 in 57.1 in Ground Clearance 8.7 in 7.7 in (front axle) Min. Turn Radius without Brakes 7.5 ft 88.6 in (MFWD off) Height to Top of ROPS 70.4 in 77.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1322 lb 1400 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear 18x8.5-10 front and 26x12.00-12 rear; R1 standard, R3 optional R1 Agricultural - Front 18x8.5-10 18x8.5-10 R1 Agricultural - Rear 26x12-12 26x12.00-12 R3 Turf - Front 18x8.5-10 18x8.5-10 R3 Turf - Rear 26x12-12 26x12.00-12 R4 Industrial - Front 18x8.5-10 18x8.50-10 R4 Industrial - Rear 26x12-12 26x12.00-12 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model LA243 210 Loader Lift Height LA243: 71.3 in 210: 68.5 in Loader Lift Capacity (Full Height) LA243: 750 lb 210: 622 lb (to max height at pivot point) Loader Breakout Force LA243: 1415 lbf 210: 1577 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
