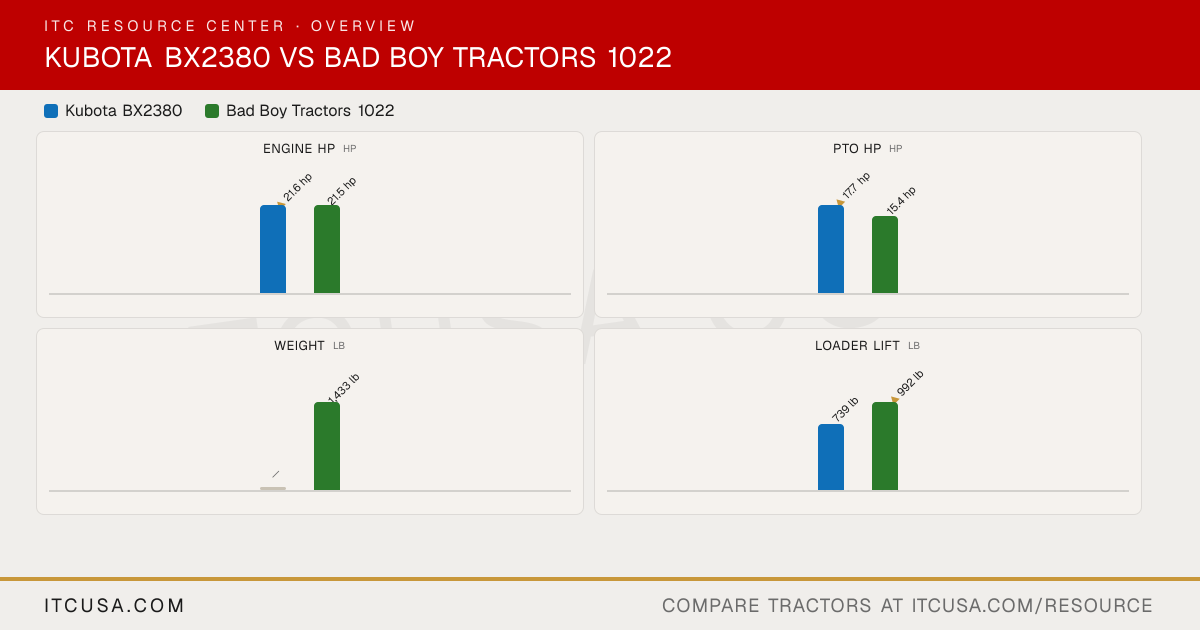

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaBX2380
Bad Boy Tractors1022
PTO Power
17.7 hp
15.4 hp
Alternator
40 A, 12 V
40 A, 12 V
Air Cleaner
Sheet net and replaceable treated paper element, spin on oil filter
Single Dry
Engine Type
Liquid cooled, 4-cycle, diesel
Natural Aspiration
Fuel System
Direct injection
Diesel
Displacement
54.8 in³
60.6 (993)
No. of Cylinders
3
3
Rated Engine Speed
3200 rpm
3,200
Cooling System Type
Water with pressurized radiator, reverse air-flow design
Water cooled
Engine Manufacturer
Kubota
Yanmar
Engine Power (Gross)
21.6 hp
21.5 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
1,433 lb
Weight with Cab and Loader
Not Applicable
Not Published
Tractor Weight (Base)
—
1,433 (650)
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
7-year powertrain warranty
Pump Type
Open center tandem pump gear type
Single Gear Pump with Flow Divider
Steering Flow
1.0 gpm
2.11 gpm
Implement Flow
5.2 gpm
4.17 (15.8)
Total Hydraulic Flow
6.2 gpm
6.97 (26.4)
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.2 gpm
6.97 gpm (max total flow)
No. of Optional Remote Valves
2 (optional; ISO 7241-1 series A or B)
Up to 1
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
STD (540 rpm)
540 rpm
PTO Type
Live independent PTO (with hydraulic clutch)
Independent
Lift Control Type
Not Published
Position
Hitch Lift Capacity
Not Published
1,100 lb
Mid-PTO Availability
STD (2500 rpm)
Optional (2,500 rpm)
Category, 3-Point Hitch
SAE Category I Optional
Category I (N)
Hitch Lift Capacity (at 24”)
680 lb
679 lb
R3 Turf - Rear
26X12-12
TURF R 16X12.00-12
R3 Turf - Front
18X8.5-10
TURF F 16X7.50-8
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 (BAR) / R3 (TURF) / R4 (IND)
R4 Industrial - Rear
26X12-12
26X12-12
R4 Industrial - Front
18X8.5-10
18X8.50-10
R1 Agricultural - Rear
26X12-12
BAR R 24X12.00-12
R1 Agricultural - Front
18X8.5-10
BAR F 16X7.50-9
Coolant Capacity
Not Published
0.9 gal
Crankcase Capacity
Not Published
0.48 gal
Fuel Tank Capacity
6.6 gal
6.6 gal
Front Axle Fluid Capacity
Not Published
2.6 qt
Transmission / Hydraulic System Capacity
Not Published
3.6 gal
Loader Lift Height
71.0 in
72.7 in (under level bucket); 78.5 in (pivot pin)
Loader Breakout Force
1,286 lbf (bucket pivot pin)
1,531 lb (at pivot pin, ground level)
Quick Attach Loader System
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
SSQA
Loader Lift Capacity (Full Height)
739 lb
992 lb (at pivot pin)
Clutch
Dry type single plate - Main clutch 9.45 in.
Dry single plate
No. of Speeds
2 Range (Low-High)
2 Range
Transmission Type
Hydrostatic transmission
Hydrostatic transmission (HST)
Max Travel Speed (Forward)
8.1 mph
7.8 mph
Max Travel Speed (Reverse)
6.2 mph
Not Published
Differential Lock & Limited Slip Options
Rear differential lock standard
Mechanical rear differential lock
Brakes
Mechanical, wet disc type
Wet disc
Steering
Integral power steering
Hydrostatic
Frame Type
Not Published
Sub-compact tractor, 4WD
Front Axle Type
4WD: Bevel gear front axle, non-adjustable tread spacing
