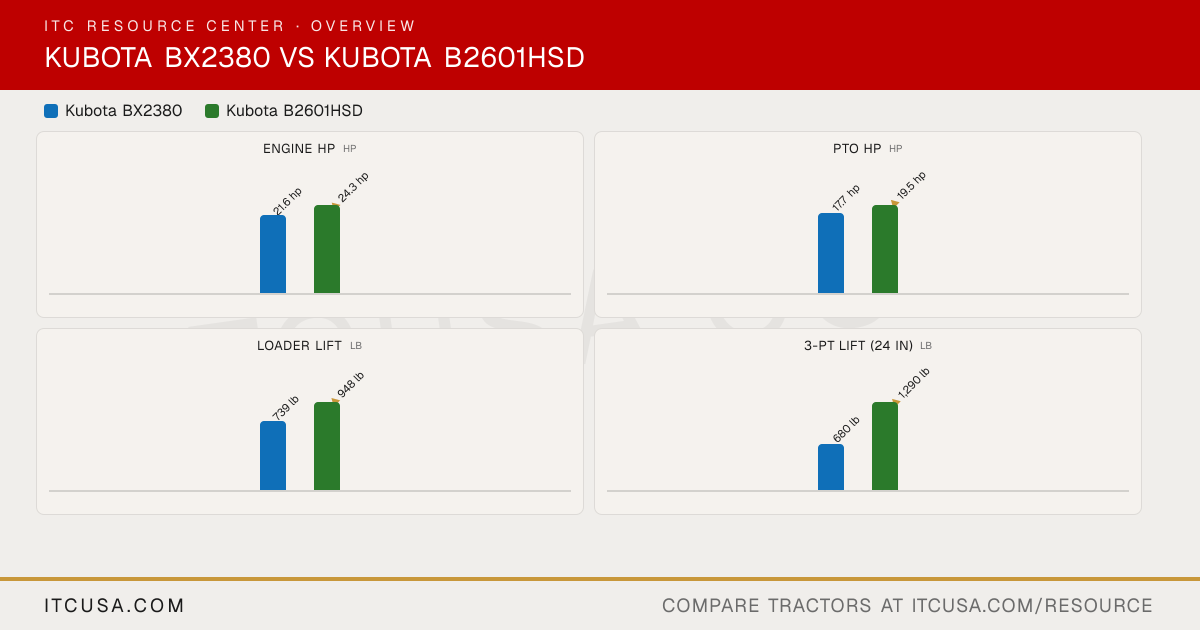

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaBX2380
KubotaB2601HSD
PTO Power
17.7 hp
19.5 hp
Alternator
40 A, 12 V
Not Published
Air Cleaner
Sheet net and replaceable treated paper element, spin on oil filter
Dual paper element
Engine Type
Liquid cooled, 4-cycle, diesel
E-TVCS, liquid cooled, 3-cylinder diesel
Fuel System
Direct injection
diesel
Displacement
54.8 in³
61.1 in³
No. of Cylinders
3
3
Rated Engine Speed
3200 rpm
2800 rpm
Cooling System Type
Water with pressurized radiator, reverse air-flow design
Pressurized radiator
Engine Manufacturer
Kubota
Kubota
Engine Power (Gross)
21.6 hp
24.3 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not explicitly published as a combined ROPS+loader figure in sources found. Tractor-only weight is 1,632 lb (740 kg).
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Open center tandem pump gear type
Dual pump
Steering Flow
1.0 gpm
Not Published
Implement Flow
5.2 gpm
8.3 gal/min total - open center dual pump system shared between steering and implement circuits; individual split not published
Total Hydraulic Flow
6.2 gpm
8.3 gpm 31.4 lpm
Hydraulic System Type
Open center
open center
Rear Remote Hydraulic Flow
Not Published
8.3 gal/min (total system - individual remote valve flow not separately published)
Overall Hydraulic Pump Flow
6.2 gpm
8.3 gpm
No. of Optional Remote Valves
2 (optional; ISO 7241-1 series A or B)
1 (single rear remote is optional)
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
STD (540 rpm)
540
PTO Type
Live independent PTO (with hydraulic clutch)
Independent
Lift Control Type
Not Published
position control
Hitch Lift Capacity
Not Published
1808 lbs.
Mid-PTO Availability
STD (2500 rpm)
independent, 2500
Category, 3-Point Hitch
SAE Category I Optional
I
Hitch Lift Capacity (at 24”)
680 lb
1290 lb
R3 Turf - Rear
26X12-12
22x8.50-12
R3 Turf - Front
18X8.5-10
22x8.50-12
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
Ag (R1): 7-12 front / 11.2-16 rear; Turf (R3): 22x8.50-12 front / 22x8.50-12 rear; Industrial (R4): 23x8.50-12 front / 12-16.5 rear; also Goodyear R14 hybrid multi-purpose tire available
R4 Industrial - Rear
26X12-12
12-16.5
R4 Industrial - Front
18X8.5-10
23x8.50-12
R1 Agricultural - Rear
26X12-12
11.2-16
R1 Agricultural - Front
18X8.5-10
7-12
Coolant Capacity
Not Published
4.0 qts.
Crankcase Capacity
Not Published
3.3 qts.
Fuel Tank Capacity
6.6 gal
6.1 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
4.0 gal
Loader Lift Height
71.0 in
78.5 in.
Loader Breakout Force
1,286 lbf (bucket pivot pin)
2146 lbs.
Quick Attach Loader System
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
LA435 Swift-Tach Loader (1-lever Quick Coupler)
Loader Lift Capacity (Full Height)
739 lb
948 lbs.
Clutch
Dry type single plate - Main clutch 9.45 in.
N/A
No. of Speeds
2 Range (Low-High)
3 ranges (HST)
Transmission Type
Hydrostatic transmission
HST (3 ranges)
Max Travel Speed (Forward)
8.1 mph
0-12.7 mph (0-12.7 mph)
Max Travel Speed (Reverse)
6.2 mph
0-9.5 mph (0-9.5 mph)
Differential Lock & Limited Slip Options
Rear differential lock standard
Standard
Brakes
Mechanical, wet disc type
Wet disc brakes
Steering
Integral power steering
Power steering
Frame Type
Not Published
Not explicitly published in sources found. Tractor uses standard compact utility tractor chassis construction.
Front Axle Type
4WD: Bevel gear front axle, non-adjustable tread spacing
Four-wheel drive
Drawbar Capacity
Max. drawbar load @ hitch: 550 lb.
Drawbar included as standard; rated capacity not published in sources found
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
High-back seat with armrests; adjustable tilt-steering wheel; seat is not described as having mechanical suspension
Wheelbase
55.1 in
61.4 inches 61 in
Overall Width
45.1 in
49 in.
Ground Clearance
6.5 in
12.8 in.
Height to Top of ROPS
83.1 in
85.0 in.
Height to Top of Cab Model
Not Applicable
Not Applicable
Height to Top of ROPS (folded)
Not Published
85 in - this is the standing/unfolded height; folded height not separately published in sources found
