Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaBX23S

—

BadBoy1025

Comparison loaded for 2 tractors.

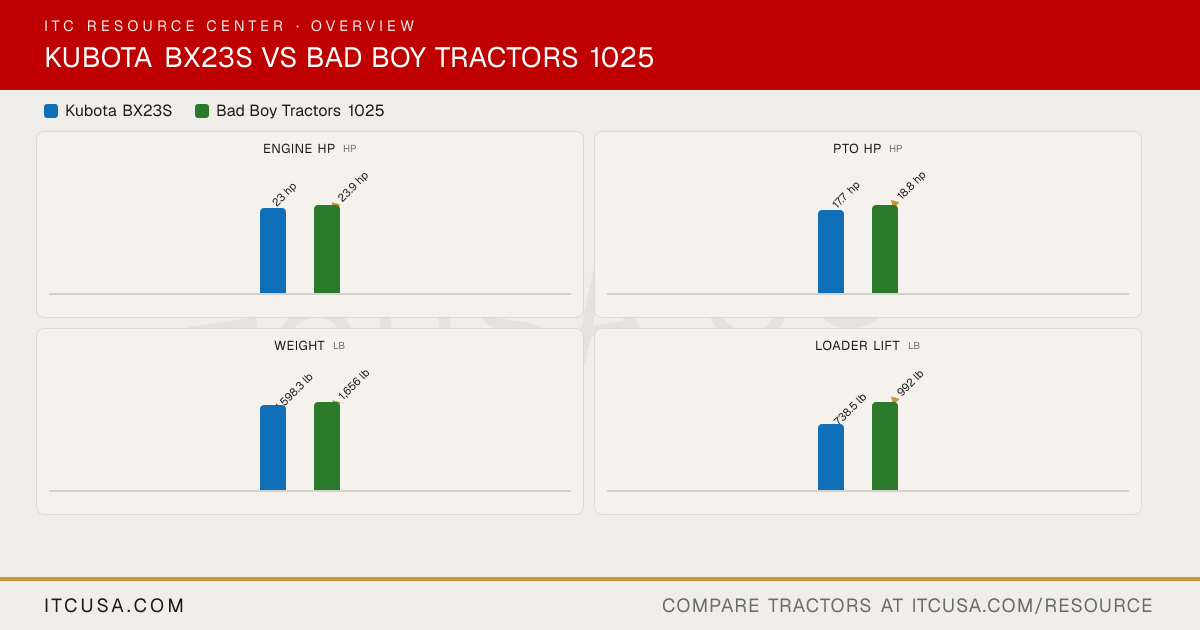

The headline numbers at a glance.

Kubota BX23SBad Boy Tractors 1025

Engine HPhp

23 hp

▲23.9 hp

PTO HPhp

17.7 hp

▲18.8 hp

Weightlb

1,598.3 lb

▲1,656 lb

Loader Liftlb

738.5 lb

▲992 lb

3-Pt Lift (24 in)lb

680 lb

▲1,101 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX23S	Bad Boy Tractors1025


PTO Power	17.7 hp	18.8 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Sheet net and replaceable treated paper element, spin on oil filter	Dry Element
Engine Type	Liquid-cooled, 4-cycle diesel	Water cooled 4 cycle, 3 cylinder diesel
Fuel System	Diesel fuel No.2 [above -10 ℃ (14 ℉)] Diesel fuel No.1 [below -10 ℃ (14 ℉)]	Indirect Injection
Displacement	54.8 in³	77.3 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	3000 rpm
Cooling System Type	Liquid-cooled	Water cooled, Forced circulation
Engine Manufacturer	KUBOTA	YANMAR
Engine Power (Gross)	23 hp	23.9 hp
Engine Emissions Constraints	Not Published	Not Published

Tractor Weight (Base)	1,598.3 lb (1600 lbs.)	1,656 lb
Weight with ROPS and Loader	Not Published	1,610 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.	Engine & Powertrain: 84 months (7 years) or 2,000 hours

Pump Type	Hydrostatic transmission	Gear pump
Steering Flow	1.0 gpm	2.8 gpm
Implement Flow	6.2 gpm (23.5 l/min.)	4.2 gpm
Total Hydraulic Flow	6.2 gpm	7.0 gpm
Hydraulic System Type	Open center tandem pump gear type	Power Assisted Hydro-Static
System Operating Pressure	12.3 MPa to 12.8 MPa	341.7 lbf/cm2
Rear Remote Hydraulic Flow	Not Published	Not Applicable
Overall Hydraulic Pump Flow	6.2 gpm	6.95 gpm
No. of Optional Remote Valves	2 (optional; ISO 7241-1 series A or B)	Not Published
No. of Standard Remote Valves	2 valves	Not Applicable

PTO Rear	STD 540 rpm	540 rpm @ 2,893 engine rpm
PTO Type	Live independent PTO (with hydraulic clutch)	Independent
Lift Control Type	Quarter-inching valve	Position control
Hitch Lift Capacity	1,213 lbs.	1,323 lb
Mid-PTO Availability	STD (2500rpm)	Yes (2,000 rpm @ 2,875 engine rpm)
Category, 3-Point Hitch	SAE Category 1	Category I (N)
Hitch Lift Capacity (at 24”)	680 lb	1,101 lb @ 24 in behind lift point

R3 Turf - Rear	26×12-12	29X12.5-15
R3 Turf - Front	18×8.5-10	20X8-10
Tire Size & Options	Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A	R1 (Ag) / R3 (Turf) / R4 (Industrial)
R4 Industrial - Rear	26×12-12	27X12-16.5
R4 Industrial - Front	18×8.5-10	23X8.5-12
R1 Agricultural - Rear	Not Applicable	9.5-16
R1 Agricultural - Front	Not Applicable	6-12

Coolant Capacity	0.8 gal (3.3 U.S.qts.)	3.8 ℓ (1 US gal)
Crankcase Capacity	0.9 gal (3.4 U.S.qts.)	2.7 ℓ (0.71 US gal)
Fuel Tank Capacity	6.6 gal (6.6 U.S.gals.)	22 ℓ (5.81 US gal)
Front Axle Fluid Capacity	Not Published	0.85 gal
Transmission / Hydraulic System Capacity	2.98 U.S. gals.	3.83 gal

Loader Lift Height	71.0 in	75.5 in (pivot pin)
Loader Breakout Force	6258 N (1407 lbs) [LA340] / 5719 N (1286 lbs) [LA340S]	1,531 lb (pivot pin, ground level)
Quick Attach Loader System	Kubota Swift-Tach (Quick attach)	SSQA
Loader Lift Capacity (Full Height)	738.5 lb (739 lbs) [LA340] / 612.9 lb (613 lbs) [LA340S]	992 lb (pivot pin)

Clutch	Dry type single plate - Main clutch 9.45"	No
No. of Speeds	2 Range (Low-High)	2 range (Low/High)
Transmission Type	Hydrostatic transmission, High-Low gear shift (2 forward, 2 reverse)	Hydraulic + Mechanical H/L with Sliding-mesh MFWD(4WD)
Max Travel Speed (Forward)	0 mph to 8.4 mph	10.5 mph (H range, Ag tires)
Max Travel Speed (Reverse)	0 mph to 6.5 mph	Not Published
Differential Lock & Limited Slip Options	Rear differential lock standard	Differential lock

Brakes	Mechanical, wet disc type	Wet disc, foot-operated
Steering	Hydrostatic Power Steering	Power steering (hydrostatic)
Frame Type	Two-post foldable ROPS	Sub-compact tractor; selectable 4WD
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Not Published
Drawbar Capacity	Maximum tongue weight 550 lb.	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	55.1 in (55.1 in.)	66.1 in
Overall Width	45.1 in (45.1 in.)	50.8 in
Overall Length	87 in (87.0 in.) w / Front guard (without 3P), 99 in (99.0 in.) w / Front guard (with 3P)	92.5 in
Ground Clearance	5.8 in (5.83 in.)	8.2 in
Height to Top of ROPS	86.2 in (86.2 in.)	89.7 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	7.5 feet	Not Published
Overall Length with 3-Point Hitch	99.0 in. w/3-Pt., w/ Front guard	104.0 in
