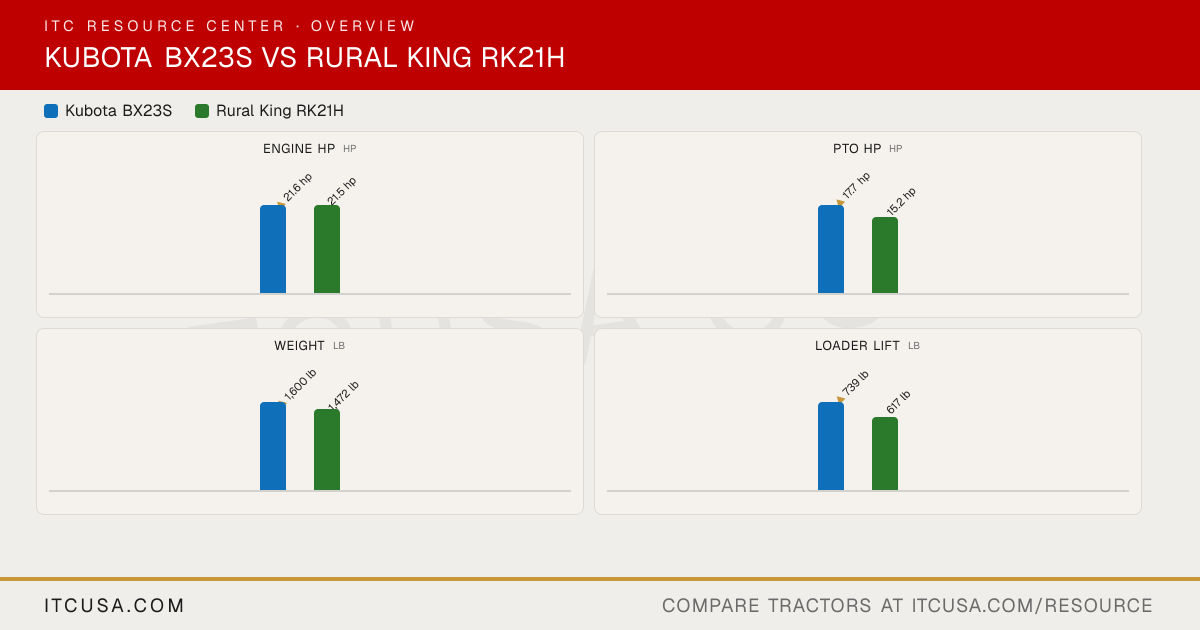

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D902 3TNM74F Engine Type Liquid-cooled, 4-cycle diesel Not Published No. of Cylinders 3 3 Displacement 54.8 in³ 60.6 in³ Rated Engine Speed 3200 rpm 3200 rpm Engine Power (Gross) 21.6 hp 21.5 hp PTO Power 17.7 hp 15.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry element Single dry Fuel System Direct injection Indirect fuel injection Alternator 40 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Open center tandem pump gear type Single gear pump with flow divider Implement Flow 5.2 gpm 4.59 gpm Steering Flow 1.0 gpm 2.11 gpm Total Hydraulic Flow 6.2 gpm 6.71 gpm Overall Hydraulic Pump Flow 6.2 gpm 6.71 gpm Hydraulic System Type Open center tandem pump gear type Live, independent Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None (2-valve rear remote coupler optional) Not Published No. of Optional Remote Valves 2 (optional; ISO 7241-1 series A or B) Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 6.6 gal Coolant Capacity 3.3 qt 3.7 qt Crankcase Capacity 3.4 qt 2.1 qt Transmission / Hydraulic System Capacity 2.98 gal 3.6 gal Front Axle Fluid Capacity 3.8 qt 2.6 qt ▶ PTO & HitchPTO Type Live independent PTO (with hydraulic clutch) Independent PTO Rear STD 540 rpm 540 rpm Mid-PTO Availability USA No.5 (KUBOTA 10-tooth) involute spline, 2500 rpm 2,000 rpm Category, 3-Point Hitch SAE Category I (optional) Category I Hitch Lift Capacity 1,213 lb 1,100 lb Hitch Lift Capacity (at 24”) 680 lb 679 lb Lift Control Type Quarter-inching valve Position ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission, high-low gear shift (2 forward, 2 reverse) 2-range hydrostatic No. of Speeds 2 Range (Low-High) 2 Range Max Travel Speed (Forward) 0 mph to 8.4 mph 8.4 mph Max Travel Speed (Reverse) 0 mph to 6.5 mph Not Published Clutch Dry type single plate - Main clutch 9.45" Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch) Differential Lock & Limited Slip Options Rear differential lock standard 4WD with differential lock ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS Unit frame: engine, transmission and front axle support bolted together into a rigid assembly Steering Hydrostatic Power Steering Hydrostatic power steering Brakes Mechanical, wet disc type Wet disc Seat Suspension & Adjustability High-back reversible seat (rotates for backhoe operation); fore/aft slide and backrest tilt adjustment Suspension seat with armrests & retractable seat belt Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing 4WD, center-pivot reverse Eliot type Front Axle Rating Not Published Not Published Drawbar Capacity Maximum tongue weight 550 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 45.1 in 44.5 in Wheelbase 55.1 in 53.1 in Ground Clearance 6.5 in (front axle) 8.3 in Min. Turn Radius without Brakes 7.5 ft 86.6 in Height to Top of ROPS 86.2 in 86.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 99.0 in (with 3-point hitch, with front guard) 94.2 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,600 lb (with ROPS, front guard and control valve assembly) 1,472 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A Titan: R4 Industrial (Std), R3 Turf (Opt), R14 (Opt) R1 Agricultural - Front Not Published n/a R1 Agricultural - Rear Not Published n/a R3 Turf - Front 18×8.5-10 18x8.5-10 R3 Turf - Rear 26×12-12 Not Published R4 Industrial - Front 18×8.5-10 Not Published R4 Industrial - Rear 26×12-12 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Kubota Swift-Tach (Quick attach) L72: skid-steer compatible quick-attach Loader Model LA340S (standard, quick attach); LA340 (pin-on option) L72 Loader Lift Height 71.0 in (at pivot pin) L72: 72 in (maximum lift height) Loader Lift Capacity (Full Height) 739 lb (LA340 pin-on); 613 lb (LA340S quick attach) L72: 617 lb (to full height) Loader Breakout Force 1,407 lbf (LA340 pin-on); 1,286 lbf (LA340S quick attach) L72: 1,285 lb ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
