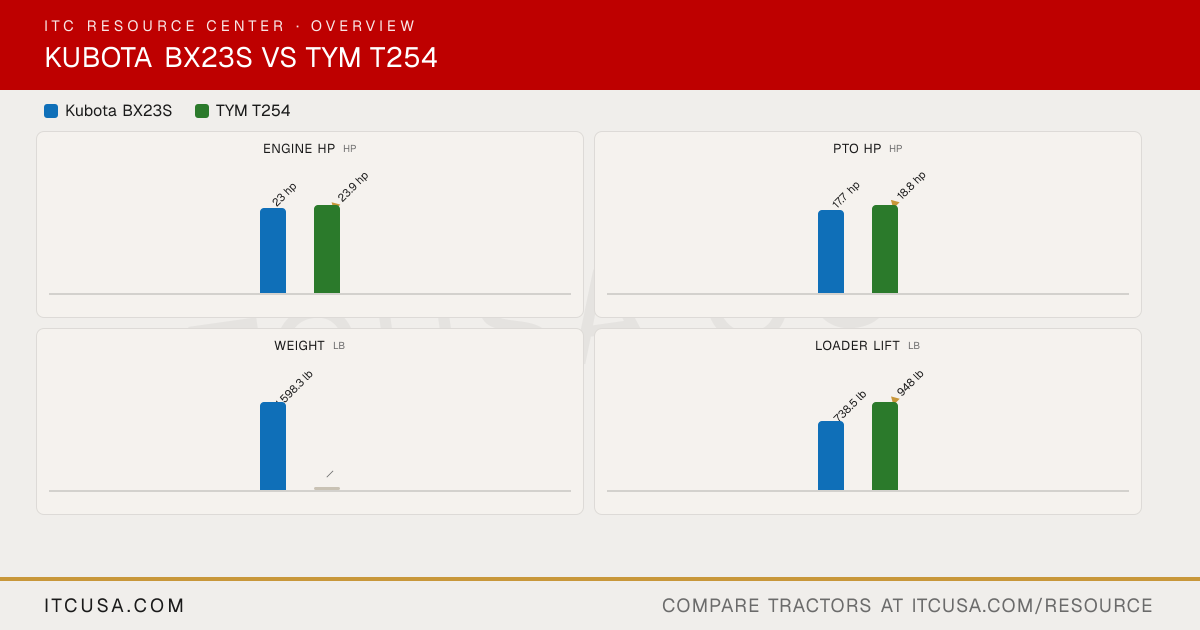

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Hydrostatic transmission
Single gear pump
Steering Flow
1.0 gpm
2.8 gpm
Implement Flow
6.2 gpm (23.5 l/min.)
4.2 gpm
Total Hydraulic Flow
6.2 gpm
6.9 gpm
Hydraulic System Type
Open center tandem pump gear type
Open center
System Operating Pressure
12.3 MPa to 12.8 MPa
—
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.2 gpm
6.9 gpm
No. of Optional Remote Valves
2 (optional; ISO 7241-1 series A or B)
1
No. of Standard Remote Valves
2 valves
0
PTO Rear
STD 540 rpm
540 rpm
PTO Type
Live independent PTO (with hydraulic clutch)
Independent
Lift Control Type
Quarter-inching valve
Position control
Hitch Lift Capacity
1,213 lbs.
1,214 lb
Mid-PTO Availability
STD (2500rpm)
Available
Category, 3-Point Hitch
SAE Category 1
Category I (Narrow)
Hitch Lift Capacity (at 24”)
680 lb
1,101 lb
R3 Turf - Rear
26×12-12
29x12.50-15
R3 Turf - Front
18×8.5-10
20x8.00-10
Tire Size & Options
Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A
R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
R4 Industrial - Rear
26×12-12
27x12.5-15; 12-16.5
R4 Industrial - Front
18×8.5-10
20x8.00-10; 23x8.50-12
R1 Agricultural - Rear
Not Applicable
9.5-16
R1 Agricultural - Front
Not Applicable
6.0-12
Coolant Capacity
0.8 gal (3.3 U.S.qts.)
3.8 qt
Crankcase Capacity
0.9 gal (3.4 U.S.qts.)
2.9 qt
Fuel Tank Capacity
6.6 gal (6.6 U.S.gals.)
5.8 gal
Front Axle Fluid Capacity
Not Published
3.7 qt
Transmission / Hydraulic System Capacity
2.98 U.S. gals.
3.7 gal
Loader Lift Height
71.0 in
75 in
Loader Breakout Force
6258 N (1407 lbs) [LA340] / 5719 N (1286 lbs) [LA340S]
