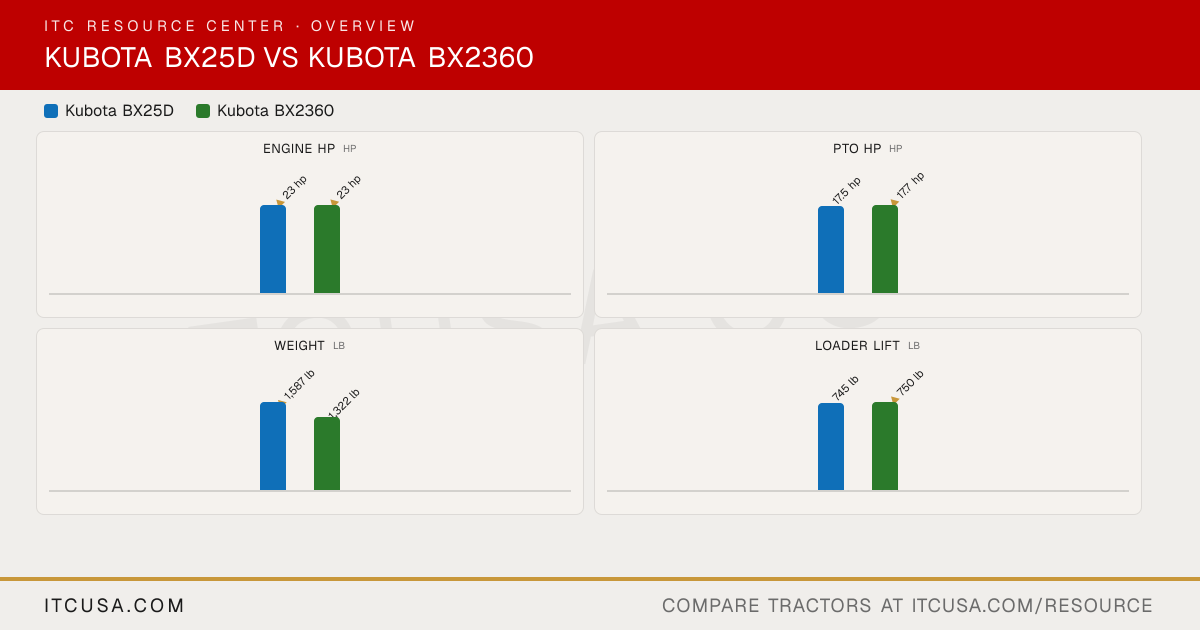

▶ EngineEngine Manufacturer Kubota Kubota Engine Model D902 D902 Engine Type Diesel, 3-cylinder, liquid-cooled inline Liquid-cooled, 3-cylinder diesel No. of Cylinders 3 3 Displacement 54.8 in³ 54.8 in³ Rated Engine Speed 3200 rpm 3200 rpm Engine Power (Gross) 23 hp 23 hp PTO Power 17.5 hp 17.7 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Not Published Indirect injection Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 6.2 gpm Not Published Steering Flow Not Published Not Published Total Hydraulic Flow Not Published 6.3 gpm Overall Hydraulic Pump Flow 6.2 gpm 6.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 6.6 gal Coolant Capacity 2.8 qt 2.8 qt Crankcase Capacity 3.3 qt 3.3 qt Transmission / Hydraulic System Capacity Not Published 3.06 gal Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent (rear); independent (mid) Live independent, wet hydraulic clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Mid-PTO, 2500 rpm Standard mid-PTO, 2500 rpm Category, 3-Point Hitch Category I (optional) Category I Hitch Lift Capacity 992 lb 1210 lb Hitch Lift Capacity (at 24”) 670 lb 670 lb Lift Control Type Position control Directional control with auto-return lever ▶ Transmission & DrivetrainTransmission Type Not Published Hydrostatic transmission with High-Low gear shift, 2-range No. of Speeds Not Published 2-range Max Travel Speed (Forward) Not Published 8.4 mph Max Travel Speed (Reverse) Not Published 6.2 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Two-post folding ROPS (canopy optional) Two-post ROPS (foldable ROPS on BX25 only) Steering Hydrostatic type power steering Hydrostatic power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Selectable 2WD and 4WD Front Axle Rating Not Published Not Published Drawbar Capacity 551 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 95.5 in (tractor alone) 95.5 in Overall Width 44.5 in 44.5 in Wheelbase 55.1 in 55.1 in Ground Clearance 8.7 in (front axle) 8.7 in Min. Turn Radius without Brakes Not Published 7.5 ft Height to Top of ROPS 87.2 in 70.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1587 lb (tractor only) 1322 lb Weight with ROPS and Loader 2475 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18x8.5-10 front, 26x12-12 rear (Turf/Bar/Industrial) Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear R1 Agricultural - Front Not Published 18x8.5-10 R1 Agricultural - Rear Not Published 26x12-12 R3 Turf - Front Not Published 18x8.5-10 R3 Turf - Rear Not Published 26x12-12 R4 Industrial - Front 18x8.5-10 18x8.5-10 R4 Industrial - Rear 26x12-12 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System LA240A quick attach loader Not Published Loader Model LA240A; LA240A AU-SG (spill guard) LA243 Loader Lift Height LA240A: 71.3 in (at pin) LA243: 71.3 in Loader Lift Capacity (Full Height) LA240A: 745 lb (at pin) LA243: 750 lb Loader Breakout Force LA240A: 992 lb (at 19.7 in) (19.7 in forward of pivot pin) LA243: 1415 lbf ▶ WarrantyWarranty Length & Coverage Not Published Not Published
