Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.
No photo
—
KubotaBX2680
No photo
—
KubotaB2601HSD

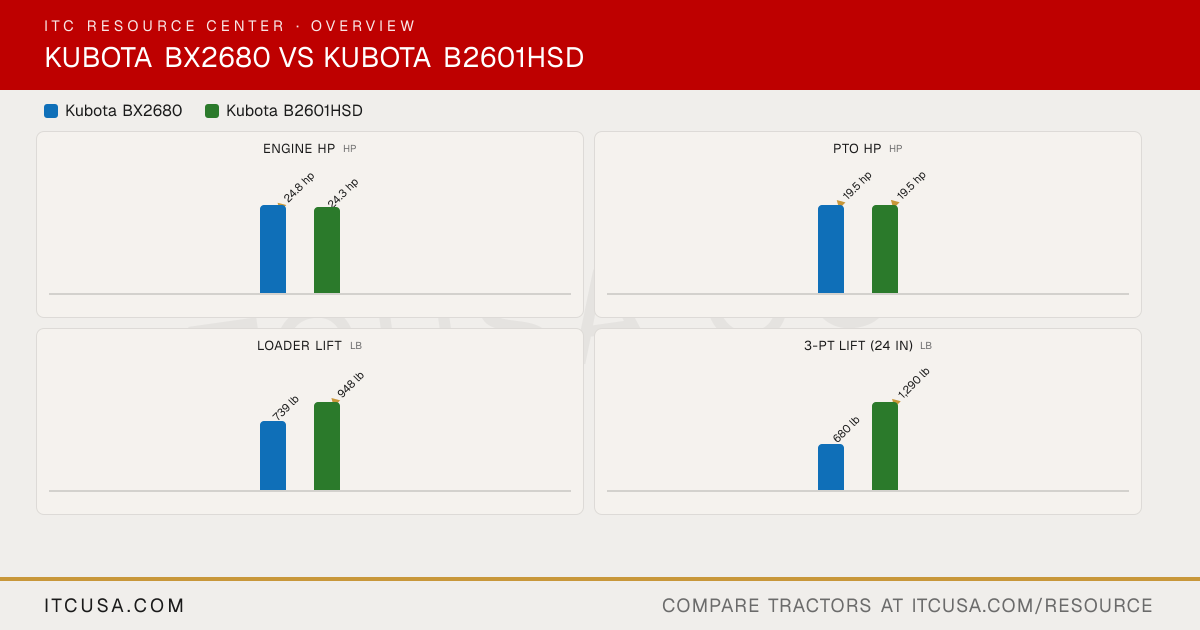

Comparison loaded for 2 tractors.
Spec
KubotaBX2680
KubotaB2601HSD
PTO Power
19.5 hp (14.5 kW)
19.5 hp (14.5 kW)
Alternator
12 V, 40 A
Not Published
Air Cleaner
Sheet net and replaceable treated paper element, spin on oil filter
Dual paper element
Engine Type
Liquid cooled, 4-cycle, diesel
E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System
Direct injection
Not Published
Displacement
61.1 in³ (1001 cc)
68.5 in³ (1123 cc)
No. of Cylinders
3
3
Rated Engine Speed
3200 rpm
2600 rpm
Cooling System Type
Water with pressurized radiator, reverse air-flow design
Pressurized radiator
Engine Manufacturer
Kubota
Kubota
Engine Emissions Constraints
Not Published
Not Published
Engine Power (Gross vs. Net HP)
Gross: 24.8 hp (18.5 kW)
Gross: 24.3 hp (18.1 kW)
Tractor Weight with Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Weight with ROPS and Loader
Not Published
Not Published
Pump Type
Open center tandem pump gear type
Dual pump
Steering Flow
3.8 L/min (1.0 gpm)
Not Published
Implement Flow
19.7 L/min (5.2 gpm)
Not Published
Total Hydraulic Flow
23.5 L/min (6.2 gpm)
26.4 L/min (7.0 gpm)
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
23.5 L/min (6.2 gpm)
26.4 L/min (7.0 gpm)
No. of Optional Remote Valves
2 (optional; ISO 7241-1 series A or B)
Not Published
No. of Standard Remote Valves
Not Published
Not Published
R3 Turf - Rear
26X12-12
Not Published
R3 Turf - Front
18X8.5-10
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural
R4 Industrial - Rear
26X12-12
Not Published
R4 Industrial - Front
18X8.5-10
Not Published
R1 Agricultural - Rear
26X12-12
11.2-16
R1 Agricultural - Front
18X8.5-10
7.0-12
PTO Rear
STD (540 rpm)
540 rpm
PTO Type
Live independent PTO (with hydraulic clutch)
Independent
Lift Control Type
Not Published
Position control valve
Hitch Lift Capacity
Not Published
1653 lb (750 kg)
Mid-PTO Availability
STD (2500 rpm)
2500 rpm
Category, 3-Point Hitch
SAE Category I Optional
Category I
Hitch Lift Capacity (at 24”)
680 lb (310 kg)
1290 lb (585 kg)
Rear 3-Point Hitch Lift Capacity
Not Published
Not Published
Coolant Capacity
Not Published
4.0 qt (3.8 L)
Crankcase Capacity
Not Published
3.3 qt (3.1 L)
Fuel Tank Capacity
6.6 gal (25 L)
6.1 gal (23 L)
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
4.0 gal (15 L)
Loader Lift Height
71.0 in (1804 mm)
78.5 in (1995 mm)
Loader Breakout Force
1,286 lbf (bucket pivot pin)
2146 lb (973 kg)
Price for Backhoe Option
Not Applicable
BH70: $8,463 MSRP
Price for Mid-Mount Mower
Not Applicable
RCK54-32: $2,898 MSRP; RCK60-32: $3,514 MSRP
Quick Attach Loader System
Swift-Tach® Loader (LA344S — Two Lever Quick Attach Bucket)
Non-Commercial Home & Residential Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
