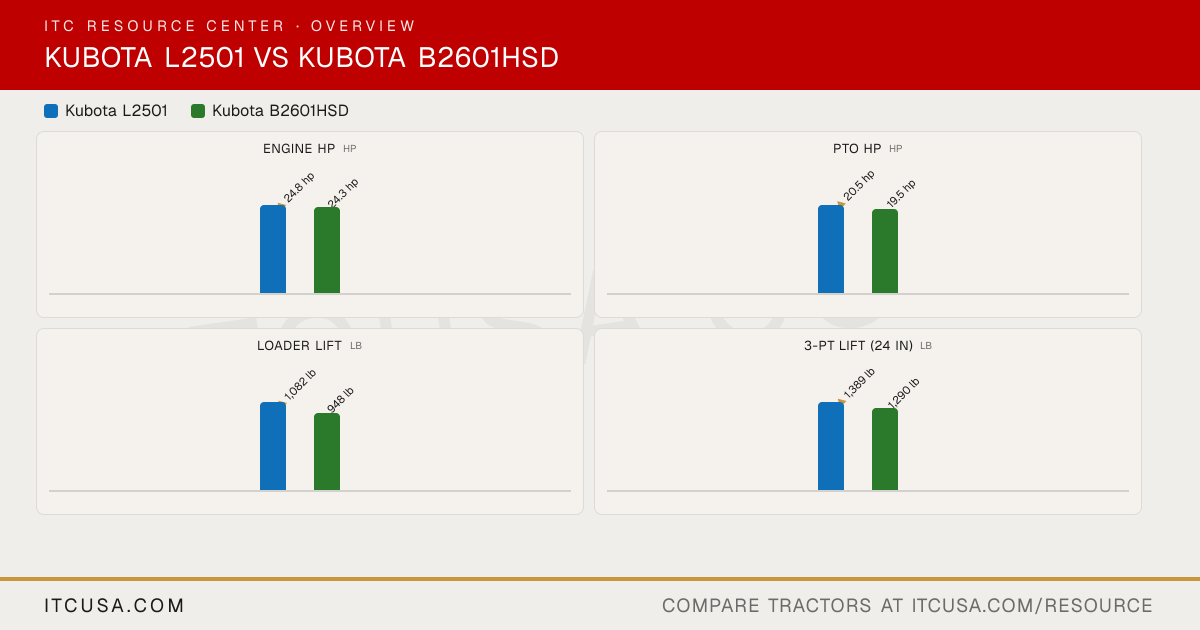

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL2501
KubotaB2601HSD
PTO Power
20.5 hp
19.5 hp
Alternator
40 A, 12 V
Not Published
Air Cleaner
Not Published
Dual paper element
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel
E-TVCS, liquid cooled, 3-cylinder diesel
Fuel System
Direct injection
diesel
Displacement
100.5 in³
61.1 in³
No. of Cylinders
3
3
Rated Engine Speed
2200 rpm
2800 rpm
Cooling System Type
Water-cooled
Pressurized radiator
Engine Manufacturer
Kubota
Kubota
Engine Power (Gross)
24.8 hp
24.3 hp
Engine Emissions Constraints
Tier 4
Tier 4
Weight with ROPS and Loader
Not Published
Not explicitly published as a combined ROPS+loader figure in sources found. Tractor-only weight is 1,632 lb (740 kg).
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Not Published
Dual pump
Steering Flow
3.13 gpm
Not Published
Implement Flow
5.15 gpm
8.3 gal/min total - open center dual pump system shared between steering and implement circuits; individual split not published
Total Hydraulic Flow
8.28 gpm
8.3 gpm 31.4 lpm
Hydraulic System Type
Not Published
open center
Rear Remote Hydraulic Flow
Not Published
8.3 gal/min (total system - individual remote valve flow not separately published)
Ag (R1): 7-12 front / 11.2-16 rear; Turf (R3): 22x8.50-12 front / 22x8.50-12 rear; Industrial (R4): 23x8.50-12 front / 12-16.5 rear; also Goodyear R14 hybrid multi-purpose tire available
R4 Industrial - Rear
DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5
12-16.5
R4 Industrial - Front
DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15
23x8.50-12
R1 Agricultural - Rear
11.2-24
11.2-16
R1 Agricultural - Front
DT (2WD): 5-15; DT (4WD), HST (4WD): 7.2-16
7-12
Coolant Capacity
Not Published
4.0 qts.
Crankcase Capacity
Not Published
3.3 qts.
Fuel Tank Capacity
10.0 gal
6.1 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
4.0 gal
Loader Lift Height
94.3 in
78.5 in.
Loader Breakout Force
2373 lbf
2146 lbs.
Quick Attach Loader System
Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
LA435 Swift-Tach Loader (1-lever Quick Coupler)
Loader Lift Capacity (Full Height)
1082 lb
948 lbs.
Clutch
DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable
