Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

3 of 4 selected

—

KubotaL2501

—

KubotaL3302

—

KubotaL3902

Comparison loaded for 3 tractors.

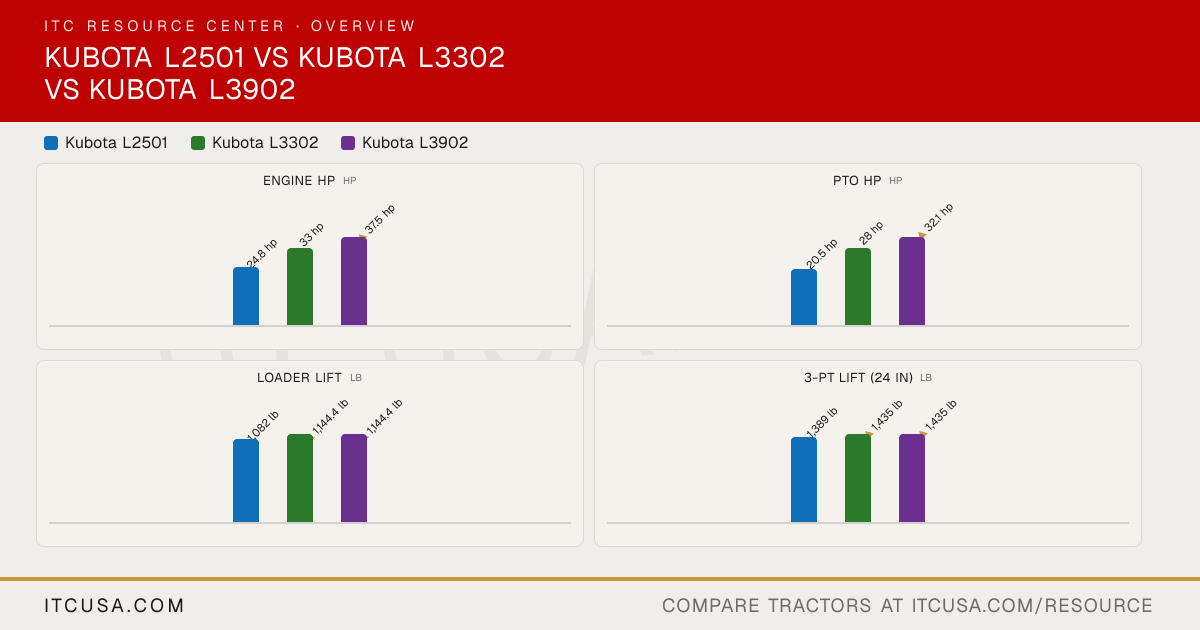

The headline numbers at a glance.

Kubota L2501Kubota L3302Kubota L3902

Engine HPhp

24.8 hp

33 hp

▲37.5 hp

PTO HPhp

20.5 hp

28 hp

▲32.1 hp

Weightlb

—

Loader Liftlb

1,082 lb

▲1,144.4 lb

3-Pt Lift (24 in)lb

1,389 lb

▲1,435 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL2501	KubotaL3302	KubotaL3902


PTO Power	20.5 hp	28 hp	32.1 hp
Alternator	40 A, 12 V	Not Published	Not Published
Air Cleaner	Not Published	Not Published	Not Published
Engine Type	Direct injection, vertical, water-cooled, 4-cycle, diesel	Direct injection, vertical, water-cooled 4-cycle, diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
Fuel System	Direct injection	Direct injection	Direct injection
Displacement	100.5 in³	111.4 in³	111.4 in³
No. of Cylinders	3	3	3
Rated Engine Speed	2200 rpm	2700 rpm	2700 rpm
Cooling System Type	Water-cooled	Water-cooled	Water-cooled
Engine Manufacturer	Kubota	Kubota	Kubota
Engine Power (Gross)	24.8 hp	33 hp	37.5 hp
Engine Emissions Constraints	Tier 4	Not Published	Not Published

Weight with ROPS and Loader	Not Published	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Not Published	Not Published
Steering Flow	3.13 gpm	3.8 gpm	3.8 gpm
Implement Flow	5.15 gpm	6.3 gpm	6.3 gpm
Total Hydraulic Flow	8.28 gpm	10.1 gpm	10.1 gpm
Hydraulic System Type	Not Published	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published	Not Published
Overall Hydraulic Pump Flow	8.28 gpm	10.1 gpm	10.1 gpm
No. of Optional Remote Valves	Not Published	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published	Not Published

PTO Rear	540 rpm	540 rpm	540 rpm
PTO Type	DT (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running	DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch	DT (4WD): Live-continuous running; HST (4WD): Live independent PTO with hydraulic clutch
Lift Control Type	Not Published	Position control	Position control
Hitch Lift Capacity	1918 lb	1998 lb	1998 lb
Mid-PTO Availability	Not Published	Not Published	Not Published
Category, 3-Point Hitch	Not Published	SAE Category I	SAE Category I
Hitch Lift Capacity (at 24”)	1389 lb	1435 lb	1435 lb

R3 Turf - Rear	Not Applicable	13.6-16	13.6-16
R3 Turf - Front	Not Applicable	25X8.50-14	25X8.50-14
Tire Size & Options	R1 Agricultural; R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5	15-19.5	15-19.5
R4 Industrial - Front	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15	27X8.50-15	27X8.50-15
R1 Agricultural - Rear	11.2-24	11.2-24	11.2-24
R1 Agricultural - Front	DT (2WD): 5-15; DT (4WD), HST (4WD): 7.2-16	7.2-16	7.2-16

Coolant Capacity	Not Published	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published	Not Published
Fuel Tank Capacity	10.0 gal	13.5 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published	Not Published

Loader Lift Height	94.3 in	94.3 in	94.3 in
Loader Breakout Force	2373 lbf	Not Published	Not Published
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Lift Capacity (Full Height)	1082 lb	1144.4 lb	1144.4 lb

Clutch	DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable	DT (4WD): Dry type single stage; HST (4WD): Not Applicable	DT (4WD): Dry type dual stage; HST (4WD): Not Applicable
No. of Speeds	DT (2WD), DT (4WD): 8 forward, 4 reverse; HST (4WD): 3-range	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range
Transmission Type	DT (2WD), DT (4WD): Gear shift; HST (4WD): Hydrostatic transmission (3-range)	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)
Max Travel Speed (Forward)	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	DT (2WD), DT (4WD): 3.9 mph; HST (4WD): 10.3 mph	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph
Differential Lock & Limited Slip Options	Not Published	Not Published	Not Published

Brakes	Wet disc type	Mechanical, wet disc type	Mechanical, wet disc type
Steering	Integral type power steering	Integral type power steering	Integral type power steering
Frame Type	Not Published	Not Published	Not Published
Front Axle Type	Not Published	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published	Not Published
Front Axle Rating	Not Published	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published	Not Published

Wheelbase	63.3 in	63.4 in	63.4 in
Overall Width	55.1 in	55.1 in	55.1 in
Ground Clearance	DT (2WD): 13.6 in; DT (4WD), HST (4WD): 13.4 in	13.4 in	13.4 in
Height to Top of ROPS	91.7 in	91.7 in	91.7 in
Height to Top of Cab Model	Not Applicable	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published	Not Published
Overall Length with 3-Point Hitch	DT (2WD): 110.6 in; DT (4WD), HST (4WD): 106.3 in	108.5 in	108.5 in
