Kubota L2501DT vs New Holland Workmaster 25S | Side-by-side comparison | ITC Resource Center
Compare Tractors

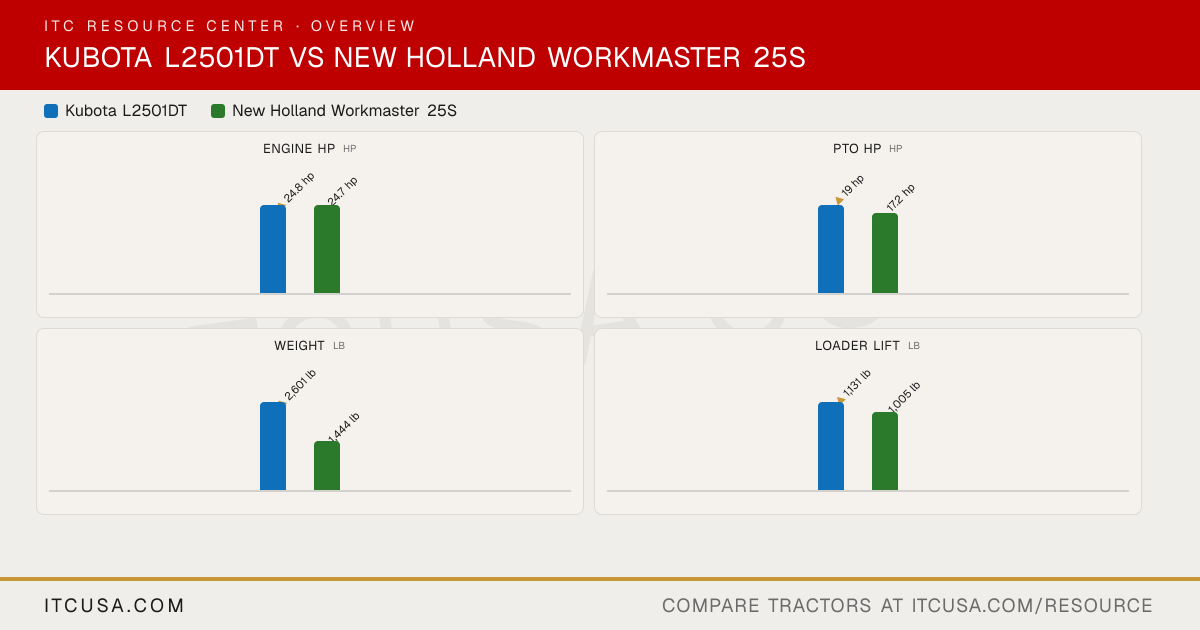

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL2501DT
New HollandWorkmaster 25S
Engine Manufacturer
Kubota
Yanmar
Engine Model
D1703-M-DI-E4
n/a
Engine Type
Direct injection, vertical, water-cooled, 4-cycle diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
100.47 in³
76.9 in³
Rated Engine Speed
2200 rpm
3000 rpm
Engine Power (Gross)
24.8 hp
24.7 hp
PTO Power
19 hp
17.2 hp
Engine Emissions Constraints
Tier 4
Tier 4B Final
Cooling System Type
Water-cooled
Pressurized liquid with recirculating bypass
Air Cleaner
Dry paper single element (dual optional)
Not Published
Fuel System
Direct injection
In-line injection pump
Alternator
40 A, 12 V
40 A, 12 V
Pump Type
Open center tandem pump, gear type
Gear
Implement Flow
5.15 gpm
4.6 gpm
Steering Flow
3.13 gpm
2.1 gpm
Total Hydraulic Flow
8.26 gpm
6.7 gpm
Overall Hydraulic Pump Flow
8.26 gpm
6.7 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
Up to 3 (self canceling detent valve or float detent valve options)
1
Fuel Tank Capacity
10.0 gal
6.6 gal
Coolant Capacity
6.3 qt
3.5 qt
Crankcase Capacity
6.0 qt
3.0 qt
Transmission / Hydraulic System Capacity
7.3 gal
3.0 gal
Front Axle Fluid Capacity
4.8 qt
0.5 gal
PTO Type
Transmission driven with overrunning clutch
Independent, electro-hydraulic engagement
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
No mid-PTO offered
Standard (2,500 rpm)
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
1918 lb
992 lb at ball ends
Hitch Lift Capacity (at 24”)
1389 lb
728 lb
Lift Control Type
Position control
Lift-hold-lower
Transmission Type
Gear shift
2-Range Hydrostatic / Dual Pedal
No. of Speeds
8 forward, 4 reverse
Infinite (2-range)
Max Travel Speed (Forward)
10.7 mph
9.1 mph
Max Travel Speed (Reverse)
3.9 mph
5.5 mph
Clutch
Dry type single stage
Not Applicable
Differential Lock & Limited Slip Options
Rear differential lock standard
Mechanical, foot-operated rear diff lock
Frame Type
Not Published
Not Published
Steering
Integral type power steering
Central support, bevel gear type
Brakes
Wet disc type
Wet, multi-disc
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Not Published
Front Axle Type
Bevel gear front axle, non-adjustable tread spacing
4WD (FWD)
Front Axle Rating
2865 lb (at 43.1 in tread)
Not Published
Drawbar Capacity
730 lb
Not Published
Overall Length with 3-Point Hitch
106.3 in (without 3-point hitch)
97.4 in
Overall Width
55.1 in
46.7 in
Wheelbase
63.3 in
56.1 in
Ground Clearance
13.4 in
12 in
Min. Turn Radius without Brakes
8.2 ft (with brake applied)
94 in
Height to Top of ROPS
91.7 in
90 in
Height to Top of ROPS (folded)
Not Published
64 in
Height to Top of Cab Model
Not Published
87.4 in
Tractor Weight (Base)
2601 lb
n/a
Weight with ROPS and Loader
Not Published
1,444 lb (ROPS tractor only)
Weight with Cab and Loader
Not Published
1,805 lb (Cab tractor only)
Tire Size & Options
R1 Agricultural; R4 Industrial
R3 Turf, R4 Industrial
R1 Agricultural - Front
7.2-16
Not Applicable
R1 Agricultural - Rear
11.2-24
Not Applicable
R3 Turf - Front
Not Published
18X8.50-10
R3 Turf - Rear
Not Published
26X12.0-12
R4 Industrial - Front
27X8.50-15
18X8.50-10
R4 Industrial - Rear
15-19.5
26X12.0-12
Quick Attach Loader System
Front Loader (LA525 - 2 Lever Quick Coupler)
100LC: Quick Mount system (no tools)
Loader Model
LA525
n/a
Loader Lift Height
94.3 in
72 in
Loader Lift Capacity (Full Height)
1131 lb
1,005 lb
Loader Breakout Force
2373 lbf
2,078 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
