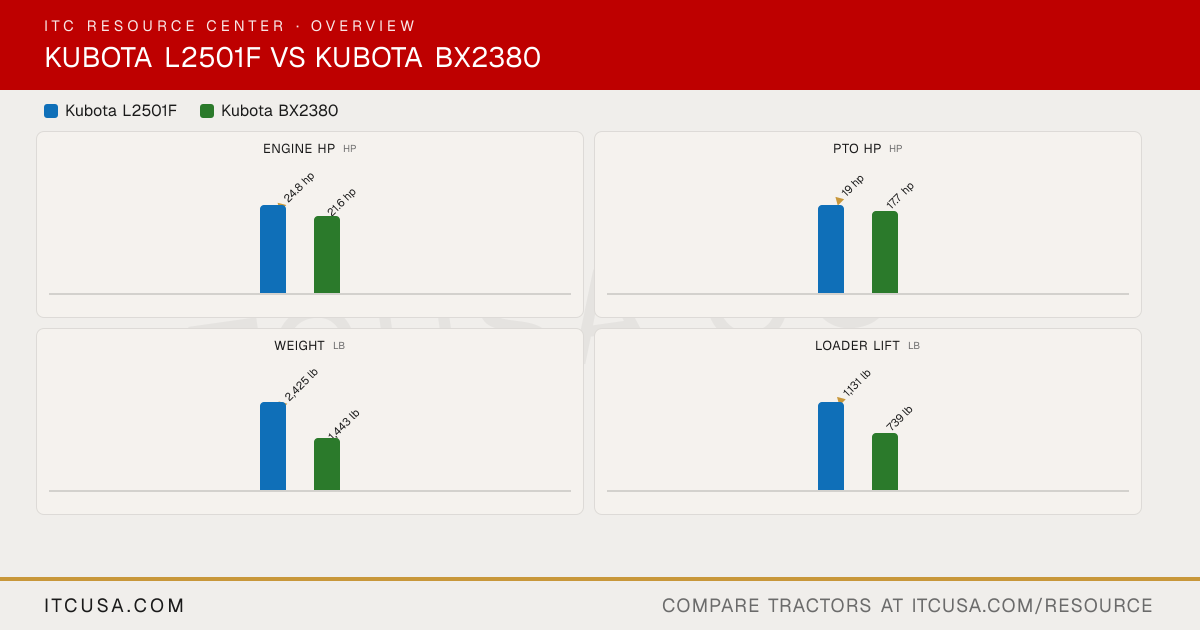

▶ EngineEngine Manufacturer Kubota Kubota Engine Model D1703-M-DI-E4 D902 Engine Type Direct injection, vertical, water-cooled, 4-cycle diesel Liquid cooled, 4-cycle, diesel No. of Cylinders 3 3 Displacement 100.47 in³ 54.8 in³ Rated Engine Speed 2200 rpm 3200 rpm Engine Power (Gross) 24.8 hp 21.6 hp PTO Power 19 hp 17.7 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Water with pressurized radiator, reverse air-flow design Air Cleaner Dry paper single element (dual optional) Dry element Fuel System Direct injection Direct injection Alternator 40 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Open center tandem pump, gear type Open center tandem pump gear type Implement Flow 5.15 gpm 5.2 gpm Steering Flow 3.13 gpm 1.0 gpm Total Hydraulic Flow 8.26 gpm 6.2 gpm Overall Hydraulic Pump Flow 8.26 gpm 6.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 standard (2-valve rear remote coupler optional) No. of Optional Remote Valves Up to 3 (self canceling detent valve or float detent valve options) 2 (optional; ISO 7241-1 series A or B) ▶ Fluid CapacityFuel Tank Capacity 10.0 gal 6.6 gal Coolant Capacity 6.3 qt 3.3 qt Crankcase Capacity 6.0 qt 3.5 qt Transmission / Hydraulic System Capacity 7.1 gal 3.0 gal Front Axle Fluid Capacity Not Published 3.8 qt ▶ PTO & HitchPTO Type Transmission driven with overrunning clutch Live independent PTO (with hydraulic clutch) PTO Rear 540 rpm STD (540 rpm) Mid-PTO Availability No mid-PTO offered STD (2500 rpm) Category, 3-Point Hitch Category I SAE Category I Optional Hitch Lift Capacity 1918 lb 1,213 lb Hitch Lift Capacity (at 24”) 1389 lb 680 lb Lift Control Type Position control Quarter-inching valve ▶ Transmission & DrivetrainTransmission Type Gear shift Hydrostatic transmission No. of Speeds 8 forward, 4 reverse 2 Range (Low-High) Max Travel Speed (Forward) 10.7 mph 8.4 mph Max Travel Speed (Reverse) 3.9 mph 6.5 mph Clutch Dry type single stage Dry type single plate - Main clutch 9.45 in. Differential Lock & Limited Slip Options Rear differential lock standard Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post foldable ROPS Steering Integral type power steering Integral power steering Brakes Wet disc type Mechanical, wet disc type Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment and suspension tension adjustment High-back deluxe seat with armrests; fore/aft slide and backrest tilt adjustment Front Axle Type Tubular steel, non-adjustable tread spacing 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating 2865 lb (at 41.3 in tread) Not Published Drawbar Capacity 730 lb Max. drawbar load @ hitch: 550 lb. ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 110.6 in (without 3-point hitch) 95.5 in Overall Width 55.1 in 45.1 in Wheelbase 63.3 in 55.1 in Ground Clearance 13.6 in 6.5 in (minimum; 8.4 in at front axle) Min. Turn Radius without Brakes 7.9 ft (with brake applied) 7.5 ft Height to Top of ROPS 91.7 in 83.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2425 lb 1443 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 5-15 18X8.5-10 R1 Agricultural - Rear 11.2-24 26X12-12 R3 Turf - Front Not Published 18X8.5-10 R3 Turf - Rear Not Published 26X12-12 R4 Industrial - Front Not Published 18X8.5-10 R4 Industrial - Rear Not Published 26X12-12 ▶ Loader & AttachmentsQuick Attach Loader System Front Loader (LA525 - 2 Lever Quick Coupler) Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket) Loader Model LA525 LA344S (standard, quick attach); LA344 (pin-on option) Loader Lift Height 94.3 in 71.0 in Loader Lift Capacity (Full Height) 1131 lb 739 lb (LA344 pin-on); 613 lb (LA344S quick attach) Loader Breakout Force 2373 lbf 1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach) ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit
