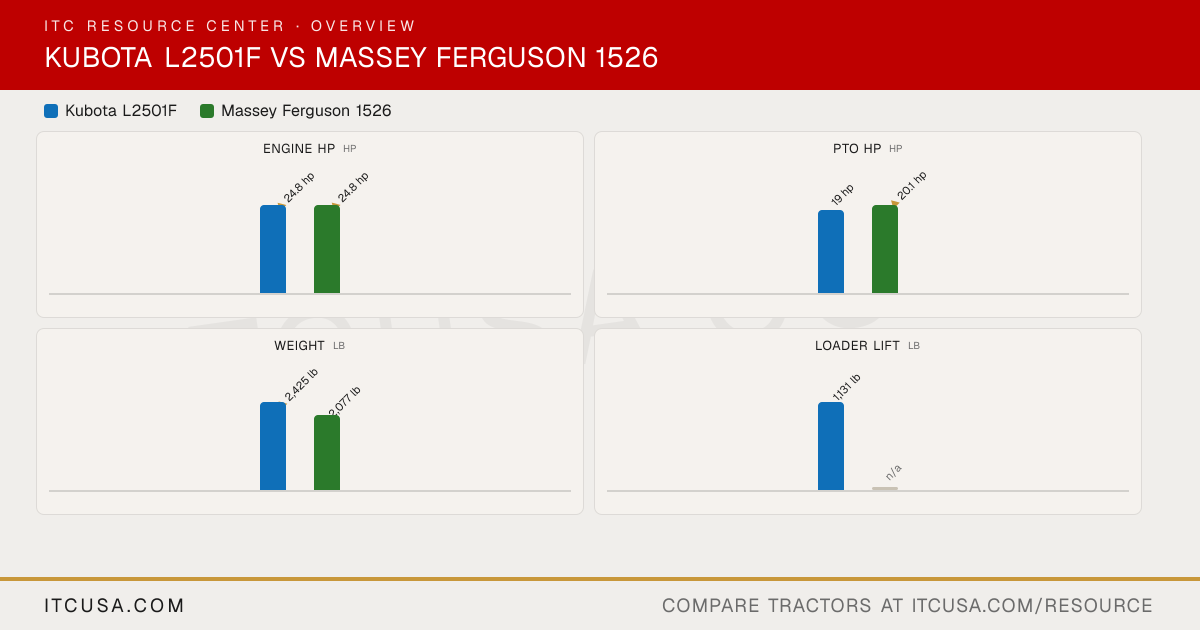

▶ EngineEngine Manufacturer Kubota Iseki Engine Model D1703-M-DI-E4 E3CD Engine Type Direct injection, vertical, water-cooled, 4-cycle diesel 3-cylinder, liquid-cooled diesel No. of Cylinders 3 3 Displacement 100.47 in³ 91.4 in³ Rated Engine Speed 2200 rpm 2600 rpm Engine Power (Gross) 24.8 hp 24.8 hp PTO Power 20.5 hp 20.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid cooled Air Cleaner Dry paper single element (dual optional) Not Published Fuel System Direct injection Not Published Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Open center tandem pump, gear type Not Published Implement Flow 5.15 gpm 5.5 gpm Steering Flow 3.11 gpm 3.2 gpm Total Hydraulic Flow 8.26 gpm 8.7 gpm Overall Hydraulic Pump Flow 8.26 gpm 8.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 5.5 gpm No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 3: self-canceling detent valve or float detent valve 1 ▶ Fluid CapacityFuel Tank Capacity 10.0 gal 7.1 gal Coolant Capacity 6.3 qt Not Published Crankcase Capacity 6.0 qt Not Published Transmission / Hydraulic System Capacity 7.1 gal Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Transmission driven with overrunning clutch Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability No mid-PTO offered Independent, 2000 rpm (optional) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,918 lb 1,322 lb Hitch Lift Capacity (at 24”) 1,389 lb 992 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Gear shift Hydrostatic No. of Speeds 8 forward, 4 reverse 3 hydrostatic ranges with cruise Max Travel Speed (Forward) 10.7 mph Not Published Max Travel Speed (Reverse) 3.9 mph Not Published Clutch Dry type single stage Not Published Differential Lock & Limited Slip Options Rear differential lock standard Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Integral type power steering Power steering Brakes Wet disc type Wet, multiple disc Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment and suspension tension adjustment Adjustable mechanical suspension Front Axle Type Tubular steel, non-adjustable tread spacing Not Published Front Axle Rating 2,865 lb (at 41.3 in tread) Not Published Drawbar Capacity 730 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 55.1 in 55.1 in Wheelbase 63.3 in 61.4 in Ground Clearance 13.6 in 11.6 in Min. Turn Radius without Brakes 7.9 ft (with brake applied) Not Published Height to Top of ROPS 91.7 in 96.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 110.6 in (without 3-point hitch) 111 in ▶ WeightTractor Weight (Base) 2,425 lb 2,077 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 5-15 7-12 R1 Agricultural - Rear 11.2-24 35x12.00-16.5 or 9.5-16 R3 Turf - Front Not Published 25x8.50-14 R3 Turf - Rear Not Published 36x13.50-15 R4 Industrial - Front Not Published 25x8.50-14 R4 Industrial - Rear Not Published 14-17 ▶ Loader & AttachmentsQuick Attach Loader System Front Loader (LA525 - 2 Lever Quick Coupler) Not Published Loader Model LA525 FLx2106 Loader Lift Height 94.3 in (at pivot pin) FLx2106: 83 in (at pivot pin) Loader Lift Capacity (Full Height) 1,082 lb (at pivot pin) FLx2106: 852 lb (to full height, at 19.5 in forward of pivot pin) Loader Breakout Force 2,373 lbf (at pivot pin) FLx2106: 1,282 lb (at 19.5 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
