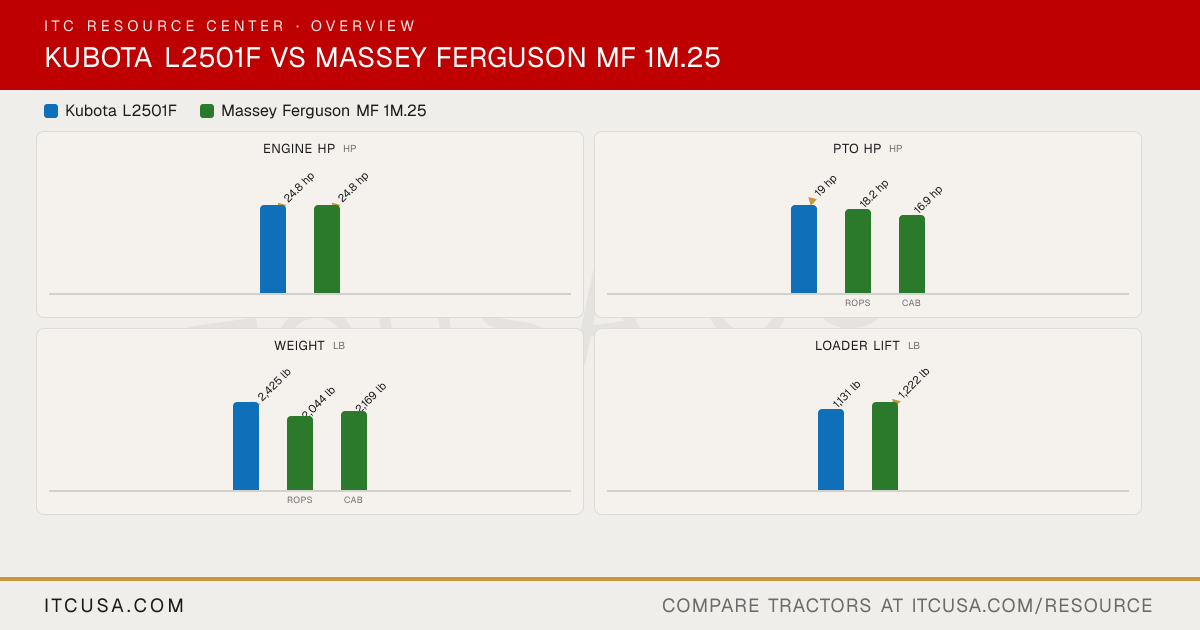

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL2501F
Massey FergusonMF 1M.25
Engine Manufacturer
Kubota
Iseki
Engine Model
D1703-M-DI-E4
Not Published
Engine Type
Direct injection, vertical, water-cooled, 4-cycle diesel
3-cylinder, liquid-cooled diesel
No. of Cylinders
3
3
Displacement
100.47 in³
91.4 in³
Rated Engine Speed
2200 rpm
2600 rpm
Engine Power (Gross)
24.8 hp
24.8 hp
PTO Power
19 hp
ROPS: 18.2 hp; CAB: 16.9 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Water-cooled
Liquid cooled
Air Cleaner
Dry paper single element (dual optional)
Not Published
Fuel System
Direct injection
Not Published
Alternator
40 A, 12 V
Not Published
Pump Type
Open center tandem pump, gear type
Not Published
Implement Flow
5.15 gpm
5.5 gpm
Steering Flow
3.13 gpm
3.2 gpm
Total Hydraulic Flow
8.26 gpm
8.7 gpm (5.5 + 3.2, computed)
Overall Hydraulic Pump Flow
8.26 gpm
8.7 gpm (5.5 + 3.2, computed)
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
2
No. of Optional Remote Valves
Up to 3 (self canceling detent valve or float detent valve options)
Not Published
Fuel Tank Capacity
10.0 gal
7.4 gal
Coolant Capacity
6.3 qt
Not Published
Crankcase Capacity
6.0 qt
Not Published
Transmission / Hydraulic System Capacity
7.1 gal
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Transmission driven with overrunning clutch
Independent
PTO Rear
540 rpm
540 rpm, 1.375 in
Mid-PTO Availability
No mid-PTO offered
Independent, 2000 rpm (optional)
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
1918 lb
1,433 lb
Hitch Lift Capacity (at 24”)
1389 lb
1,091 lb
Lift Control Type
Position control
Not Published
Transmission Type
Gear shift
Hydrostatic
No. of Speeds
8 forward, 4 reverse
Infinite forward and reverse (3-range)
Max Travel Speed (Forward)
10.7 mph
Not Published
Max Travel Speed (Reverse)
3.9 mph
Not Published
Clutch
Dry type single stage
Not Published
Differential Lock & Limited Slip Options
Rear differential lock standard
Differential lock (LHS pedal)
Frame Type
Not Published
Not Published
Steering
Integral type power steering
Power steering
Brakes
Wet disc type
Internal wet disc
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Not Published
Front Axle Type
Tubular steel, non-adjustable tread spacing
Not Published
Front Axle Rating
2865 lb (at 41.3 in tread)
Not Published
Drawbar Capacity
730 lb
Not Published
Overall Length with 3-Point Hitch
110.6 in (without 3-point hitch)
116 in
Overall Width
55.1 in
45.7-52 in
Wheelbase
63.3 in
61.4 in
Ground Clearance
13.6 in
9.9-11 in
Min. Turn Radius without Brakes
7.9 ft (with brake applied)
Not Published
Height to Top of ROPS
91.7 in
95.3-97.5 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
80-82.1 in
Tractor Weight (Base)
2425 lb
ROPS: 2,044 lb; Cab: 2,169 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural
R1 Agricultural, R3 Turf
R1 Agricultural - Front
5-15
6.00-12
R1 Agricultural - Rear
11.2-24
9.5-18
R3 Turf - Front
Not Published
24X8.50-12
R3 Turf - Rear
Not Published
315X75D-15
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
Not Published
Not Published
Quick Attach Loader System
Front Loader (LA525 - 2 Lever Quick Coupler)
Skid Steer
Loader Model
LA525
FL.2106
Loader Lift Height
94.3 in
FL.2106: 83 in
Loader Lift Capacity (Full Height)
1131 lb
FL.2106: 1,222 lb
Loader Breakout Force
2373 lbf
FL.2106: 1,822 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
