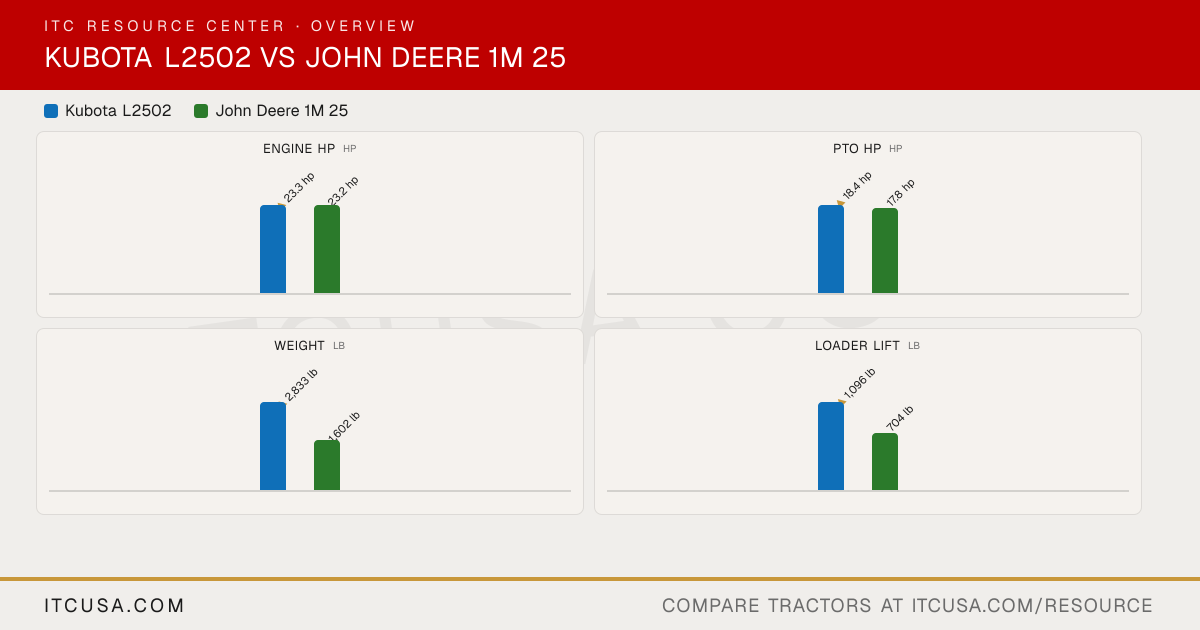

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D1703-M-DI-E4 / D1703-M-DI-E4K 3TNV80F-NCJT Engine Type Direct injection, vertical, water-cooled 4-cycle, diesel Diesel No. of Cylinders 3 3 Displacement 100.5 in³ 77 in³ Rated Engine Speed 2200 rpm 3200 rpm Engine Power (Gross) 23.3 hp 23.2 hp PTO Power 18.4 hp 17.8 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry type, single element Not Published Fuel System Direct injection Not Published Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Gear Implement Flow 5.2 gpm 3.5 gpm Steering Flow 3.1 gpm 3.5 gpm Total Hydraulic Flow 8.28 gpm (5.15 + 3.13, computed) 7 gpm Overall Hydraulic Pump Flow 8.28 gpm (5.15 + 3.13, computed) 7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 11.1 gal 5.57 gal Coolant Capacity 6.3 qt Not Published Crankcase Capacity 6.0 qt Not Published Transmission / Hydraulic System Capacity 6.9 gal Not Published Front Axle Fluid Capacity 4.8 qt Not Published ▶ PTO & HitchPTO Type Live-independent hydraulic PTO with PTO brake, wet Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Standard, 2100 rpm Category, 3-Point Hitch SAE Category I Limited Category I Hitch Lift Capacity 1,874 lb Not Published Hitch Lift Capacity (at 24”) 1,389 lb 758 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission (3-range) Hydrostatic - 2 range No. of Speeds 3-range Infinite (hydrostatic), 2 ranges forward and reverse Max Travel Speed (Forward) 11.5 mph 9.1 mph Max Travel Speed (Reverse) 10.3 mph 9.1 mph Clutch n/a Not Published Differential Lock & Limited Slip Options Rear differential lock, pedal operated Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Foldable ROPS, standard equipment Steering Integral type power steering Power steering Brakes Mechanical, wet disc type Wet disc, left-hand pedal Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment and suspension tension adjustment Suspension seat, high back, adjustable settings; tilt steering Front Axle Type Cast-iron front axle Four-wheel drive Front Axle Rating Not Published Not Published Drawbar Capacity 730 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 55.1 in 47.22 in (R3 tires); 47.32 in (R4 tires) Wheelbase 63.4 in 57.1 in Ground Clearance 13.4 in Not Published Min. Turn Radius without Brakes 8.2 ft (with brake applied) Not Published Height to Top of ROPS 91.7 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 108.5 in (without 3-point hitch) Not Published ▶ WeightTractor Weight (Base) 2,833 lb 1,602 lb open station; 2,019 lb cab (shipping weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural; Turf; Industrial R3 Turf, R3 Hybrid, or R4 R1 Agricultural - Front 7.2-16 Not Published R1 Agricultural - Rear 11.2-24 Not Published R3 Turf - Front 25X8.50-14 18x8.50-10 R3 Turf - Rear 13.6-16 26x12-12 R4 Industrial - Front 27X8.50-15 18x8.5-10 R4 Industrial - Rear 15-19.5 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System Front Loader (LA526 - 2 Lever Quick Coupler (OPT)) Tool-free attach and park Loader Model LA526 120R Loader Lift Height LA526: 94.8 in 120R: 72 in Loader Lift Capacity (Full Height) LA526: 1,096 lb 120R (NSL): 704 lb (at pivot, full height) Loader Breakout Force Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Powertrain 6 years or 2,000 hours, standard at no cost, covers residential and commercial use ▶ ITC Company AccessoriesAccessories that fit None tagged yet
