Kubota L2502F vs Kubota L2501 | Side-by-side comparison | ITC Resource Center
Compare Tractors

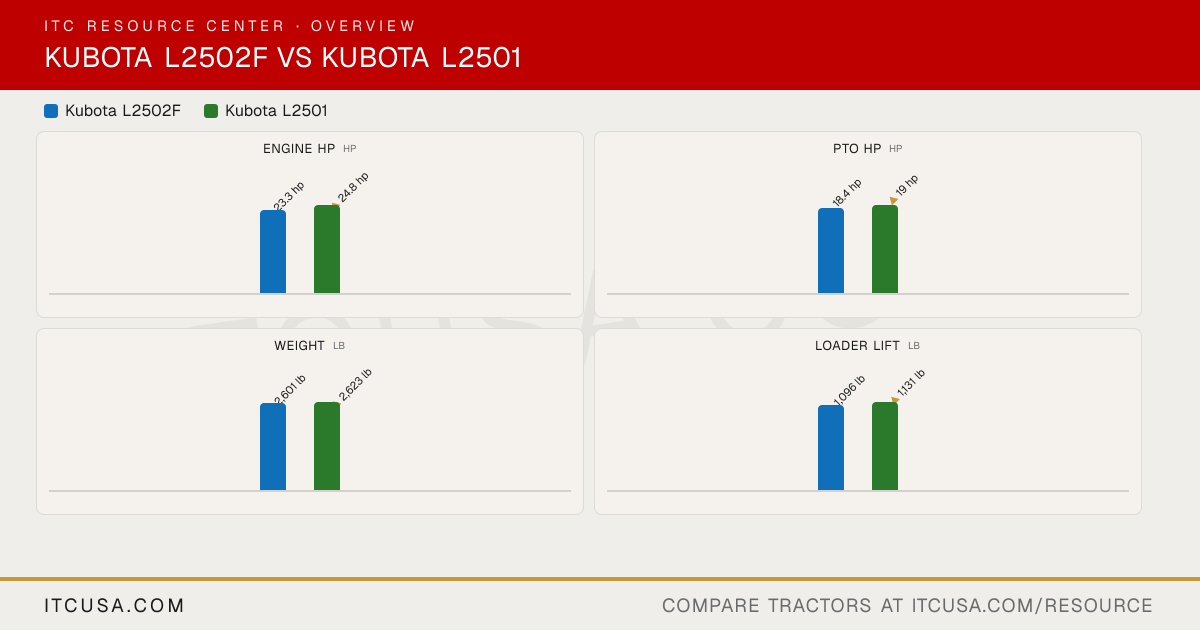

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL2502F
KubotaL2501
Engine Manufacturer
Kubota
Kubota
Engine Model
D1703-M-DI-E4 / D1703-M-DI-E4K
D1703-M-DI-E4
Engine Type
Direct injection, vertical, water-cooled 4-cycle, diesel
Direct injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders
3
3
Displacement
100.5 in³
100.47 in³
Rated Engine Speed
2200 rpm
2200 rpm
Engine Power (Gross)
23.3 hp
24.8 hp
PTO Power
18.4 hp
19 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Water-cooled
Water-cooled
Air Cleaner
Dry type, single element
Dry paper single element (dual optional)
Fuel System
Direct injection
Direct injection
Alternator
40 A, 12 V
40 A, 12 V
Pump Type
Not Published
Open center tandem pump, gear type
Implement Flow
5.2 gpm
5.15 gpm
Steering Flow
3.1 gpm
3.13 gpm
Total Hydraulic Flow
8.28 gpm (5.15 + 3.13, computed)
8.26 gpm
Overall Hydraulic Pump Flow
8.28 gpm (5.15 + 3.13, computed)
8.26 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
Up to 3 (self canceling detent valve or float detent valve options)
Fuel Tank Capacity
11.1 gal
10.0 gal
Coolant Capacity
6.3 qt
6.3 qt
Crankcase Capacity
6.0 qt
6.0 qt
Transmission / Hydraulic System Capacity
7.4 gal
6.2 gal
Front Axle Fluid Capacity
Not Published
4.8 qt
PTO Type
Transmission driven with overrunning clutch
Live-continuous running
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
No mid-PTO offered
Category, 3-Point Hitch
SAE Category I
Category I
Hitch Lift Capacity
1874 lb
1918 lb
Hitch Lift Capacity (at 24”)
1389 lb
1389 lb
Lift Control Type
Position control
Position control
Transmission Type
Constant mesh with synchronized shuttle
Hydrostatic transmission (3-range)
No. of Speeds
8 forward, 8 reverse
3-range
Max Travel Speed (Forward)
10.7 mph
11.5 mph
Max Travel Speed (Reverse)
10.7 mph
10.3 mph
Clutch
Dry type single stage
Not Applicable
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Rear differential lock standard
Frame Type
Not Published
Not Published
Steering
Integral type power steering
Integral type power steering
Brakes
Mechanical, wet disc type
Wet disc type
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type
Cast-iron front axle
Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating
Not Published
2865 lb (at 43.1 in tread)
Drawbar Capacity
730 lb
730 lb
Overall Length with 3-Point Hitch
110.6 in (without 3-point hitch)
106.3 in (without 3-point hitch)
Overall Width
55.1 in
55.1 in
Wheelbase
63.8 in
63.3 in
Ground Clearance
13.6 in
13.4 in
Min. Turn Radius without Brakes
7.9 ft (with brake applied)
8.2 ft (with brake applied)
Height to Top of ROPS
91.7 in
91.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
2601 lb
2623 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf
R1 Agricultural; R4 Industrial
R1 Agricultural - Front
5.0-15
7.2-16
R1 Agricultural - Rear
11.2-24
11.2-24
R3 Turf - Front
23X8.50-12
Not Published
R3 Turf - Rear
13.6-16
Not Published
R4 Industrial - Front
Not Published
27X8.50-15
R4 Industrial - Rear
Not Published
15-19.5
Quick Attach Loader System
Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Front Loader (LA525 - 2 Lever Quick Coupler)
Loader Model
LA526
LA525
Loader Lift Height
94.8 in
94.3 in
Loader Lift Capacity (Full Height)
1096 lb
1131 lb
Loader Breakout Force
Not Published
2373 lbf
Warranty Length & Coverage
Not Published
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
