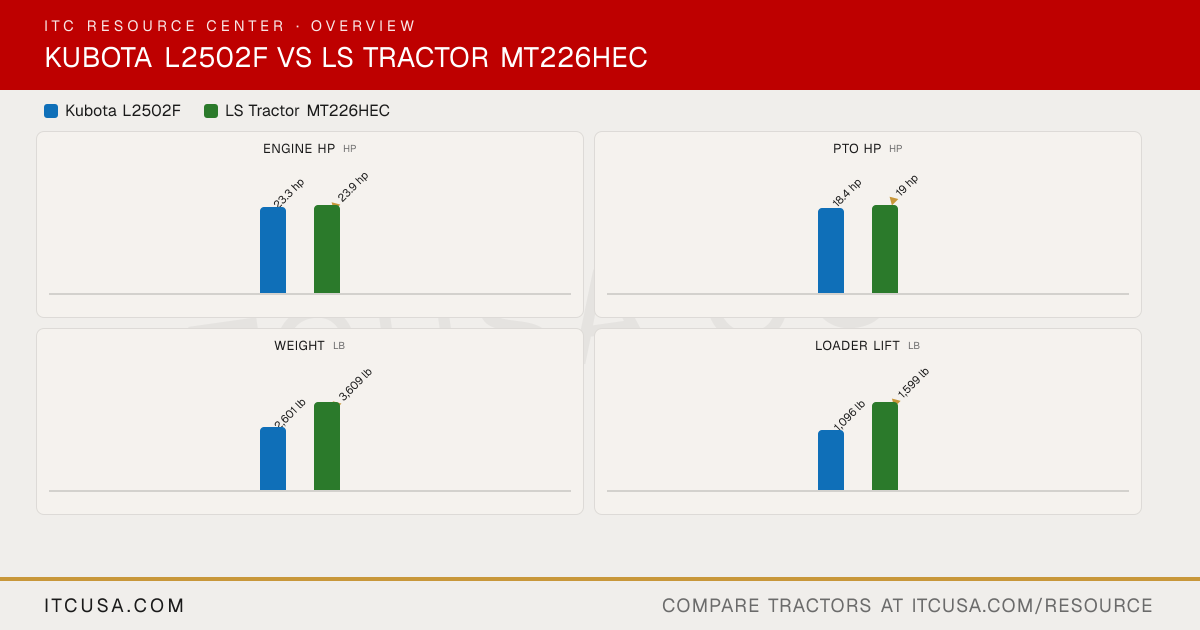

▶ EngineEngine Manufacturer Kubota YANMAR Engine Model D1703-M-DI-E4 / D1703-M-DI-E4K 3TNV88F-EPLST Engine Type Direct injection, vertical, water-cooled 4-cycle, diesel 3-cylinder, liquid-cooled, diesel, naturally aspirated, DI No. of Cylinders 3 3 Displacement 100.5 in³ 100.2 in³ Rated Engine Speed 2200 rpm 2400 rpm Engine Power (Gross) 23.3 hp 23.9 hp PTO Power 18.4 hp 19 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry type, single element Dry Fuel System Direct injection DI (direct injection) Alternator 40 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Not Published Gear pump Implement Flow 5.2 gpm 6.1 gpm Steering Flow 3.1 gpm 4.6 gpm Total Hydraulic Flow 8.28 gpm (5.15 + 3.13, computed) 10.7 gpm Overall Hydraulic Pump Flow 8.28 gpm (5.15 + 3.13, computed) 10.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 1 pair No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 11.1 gal 11.4 gal Coolant Capacity 6.3 qt Not Published Crankcase Capacity 6.0 qt Not Published Transmission / Hydraulic System Capacity 7.4 gal Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Transmission driven with overrunning clutch Independent PTO Rear 540 rpm Standard (540 rpm) Mid-PTO Availability Not Published Available (option) Category, 3-Point Hitch SAE Category I Category I Hitch Lift Capacity 1874 lb 1,808 lb Hitch Lift Capacity (at 24”) 1389 lb 1433 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Constant mesh with synchronized shuttle HST No. of Speeds 8 forward, 8 reverse 3 ranges Max Travel Speed (Forward) 10.7 mph Not Published Max Travel Speed (Reverse) 10.7 mph Not Published Clutch Dry type single stage Not Published Differential Lock & Limited Slip Options Rear differential lock, pedal operated Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Integral type power steering Hydrostatic power steering Brakes Mechanical, wet disc type Wet, multi-disc Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment and suspension tension adjustment Not Published Front Axle Type Cast-iron front axle Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 730 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 110.6 in (without 3-point hitch) 125 in Overall Width 55.1 in 66 in Wheelbase 63.8 in 69 in Ground Clearance 13.6 in Not Published Min. Turn Radius without Brakes 7.9 ft (with brake applied) 11.5 ft (3.5 m) Height to Top of ROPS 91.7 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 90 in ▶ WeightTractor Weight (Base) 2601 lb 3,609 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf R1 agricultural, R4 industrial, R3 turf and VT (versa turf); VT same size as R4 R1 Agricultural - Front 5.0-15 7-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 23X8.50-12 25x8.50-14 R3 Turf - Rear 13.6-16 41x14.00-20 R4 Industrial - Front Not Published 27x8.50-15 R4 Industrial - Rear Not Published 43x16.00-20 ▶ Loader & AttachmentsQuick Attach Loader System Front Loader (LA526 - 2 Lever Quick Coupler (OPT)) LL3001, LL3002: ISO 24410 Quick Attaching Coupler Loader Model LA526 LL3002 Loader Lift Height 94.8 in LL3002: 94.3 in Loader Lift Capacity (Full Height) 1096 lb LL3002: 1,599 lb Loader Breakout Force Not Published LL3002: 2,962 lb ▶ WarrantyWarranty Length & Coverage Not Published 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
