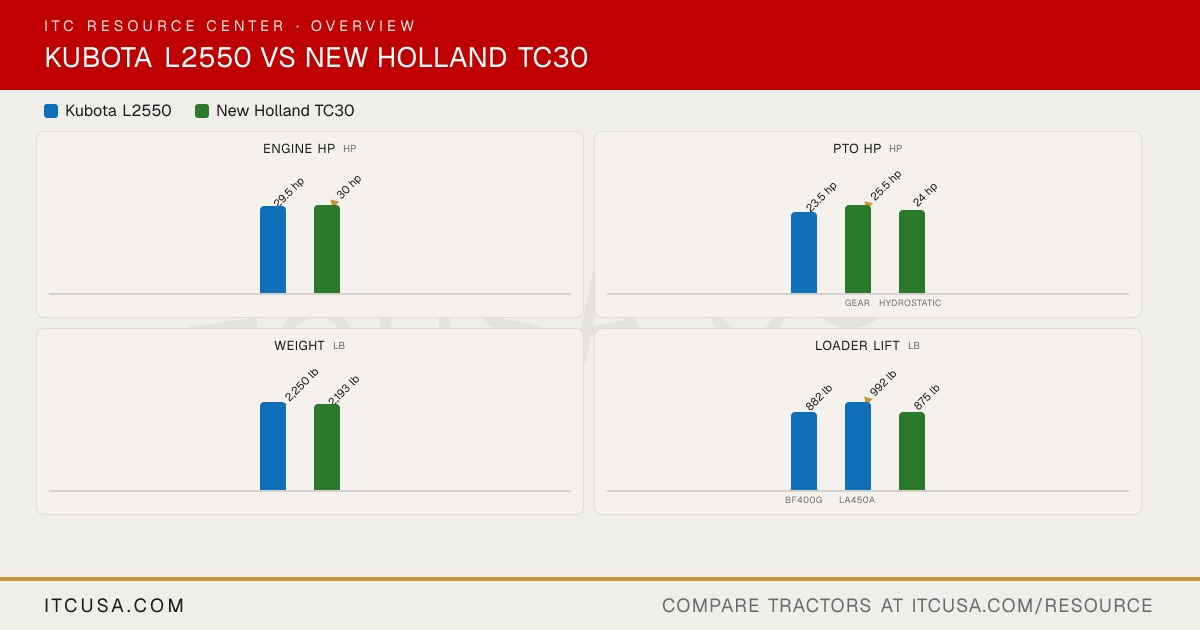

▶ EngineEngine Manufacturer Kubota Shibaura Engine Model F (2WD), DT (4WD): D1402-DI-A; GST (4WD): D1402-DI-AE N843 Engine Type Direct injection, vertical, water-cooled, 4-cycle diesel 3-cylinder naturally aspirated diesel No. of Cylinders 3 3 Displacement 85.1 in³ 91.3 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 29.5 hp 30 hp PTO Power 23.5 hp Gear: 25.5 hp; Hydrostatic: 24 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled, pressurized radiator Liquid-cooled Air Cleaner Paper element Not Published Fuel System Direct injection Not Published Alternator 35 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Gear Implement Flow 6.7 gpm 6.2 gpm Steering Flow 2.8 gpm 3.8 gpm Total Hydraulic Flow Not Published 10.0 gpm (6.2 + 3.8, computed) Overall Hydraulic Pump Flow Not Published 10.0 gpm (6.2 + 3.8, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 3 Not Published ▶ Fluid CapacityFuel Tank Capacity 7.7 gal 7.1 gal Coolant Capacity 4.9 qt Not Published Crankcase Capacity 6.0 qt Not Published Transmission / Hydraulic System Capacity F (2WD), DT (4WD): 7.5 gal; GST (4WD): 7.1 gal Not Published Front Axle Fluid Capacity 6.8 qt (4WD) Not Published ▶ PTO & HitchPTO Type Continuous running (live PTO with dual clutch if equipped) Live (FWD); transmission-driven (2WD gear) PTO Rear 540/1000 rpm Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm Mid-PTO Availability Optional mid-PTO, 1080/2000 rpm (USA No. 5, Kubota 10-tooth) Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2425 lb Not Published Hitch Lift Capacity (at 24”) 1810 lb 1,635 lb Lift Control Type Position control (draft control optional) Not Published ▶ Transmission & DrivetrainTransmission Type F (2WD), DT (4WD): Mechanical shuttle, 8F/8R; GST (4WD): Glide Shift Transmission, 8F/8R Gear: 9x3; Hydrostatic: 3-range (FWD only) No. of Speeds 8F/8R Gear: 9F/3R; Hydrostatic: 3 ranges Max Travel Speed (Forward) F (2WD), DT (4WD): 13.5 mph; GST (4WD): 13.3 mph Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires) Max Travel Speed (Reverse) F (2WD), DT (4WD): 12.2 mph; GST (4WD): 11.9 mph Not Published Clutch F (2WD), DT (4WD): Dry single plate or two plate (live PTO if equipped); GST (4WD): Dry single plate Not Published Differential Lock & Limited Slip Options Rear differential lock (bevel gear differential) Mechanical rear differential lock (heel pedal) ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS Not Published Steering F (2WD), DT (4WD): Recirculating ball manual steering or integral power steering (if equipped); GST (4WD): Integral type power steering Power steering Brakes Wet disc type Wet disc Seat Suspension & Adjustability Not Published Padded contoured seat on an inclined track Front Axle Type Not Published FWD (standard); 2WD (optional) Front Axle Rating Not Published Not Published Drawbar Capacity 1100 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 109.1 in (w/o 3P) (without 3-point hitch) 108.9 in (2006 brochure, 2WD ag-tire specification); 111.4 in (2008 sheet, FWD R4-tire specification); both 3-point raised Overall Width 51.4 in 54.3 in (minimum, ag tires); 62 in (R4 tires) Wheelbase 64.6 in 63.0 in Ground Clearance F (2WD): 14.6 in; DT (4WD), GST (4WD): 13.6 in Not Published Min. Turn Radius without Brakes 7.5 ft Not Published Height to Top of ROPS 79.9 in 82.3 in (R4 tires) Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) F (2WD): 2250 lb; DT (4WD): 2470 lb; GST (4WD): 2557 lb 2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag: 5.00-15 (2WD) or 7-16 (4WD) front, 11.2-24 rear R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5 R1 Agricultural - Front F (2WD): 5.00-15; DT (4WD), GST (4WD): 7-16 Not Published R1 Agricultural - Rear 11.2-24 11.2x24 R3 Turf - Front Not Published 24x8.50-14 R3 Turf - Rear Not Published 13.6x16 R4 Industrial - Front Not Published 25x8.50-14 R4 Industrial - Rear Not Published 15x19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model BF400G; LA450A 7308 Loader Lift Height BF400G: 93.7 in; LA450A: 95 in 7308: 100.5 in Loader Lift Capacity (Full Height) BF400G: 882 lb; LA450A: 992 lb 7308: 875 lb Loader Breakout Force BF400G: 1654 lbf; LA450A: 1863 lbf 7308: 1,602 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
