Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaL2800

n/a

KubotaL3130

Comparison loaded for 2 tractors.

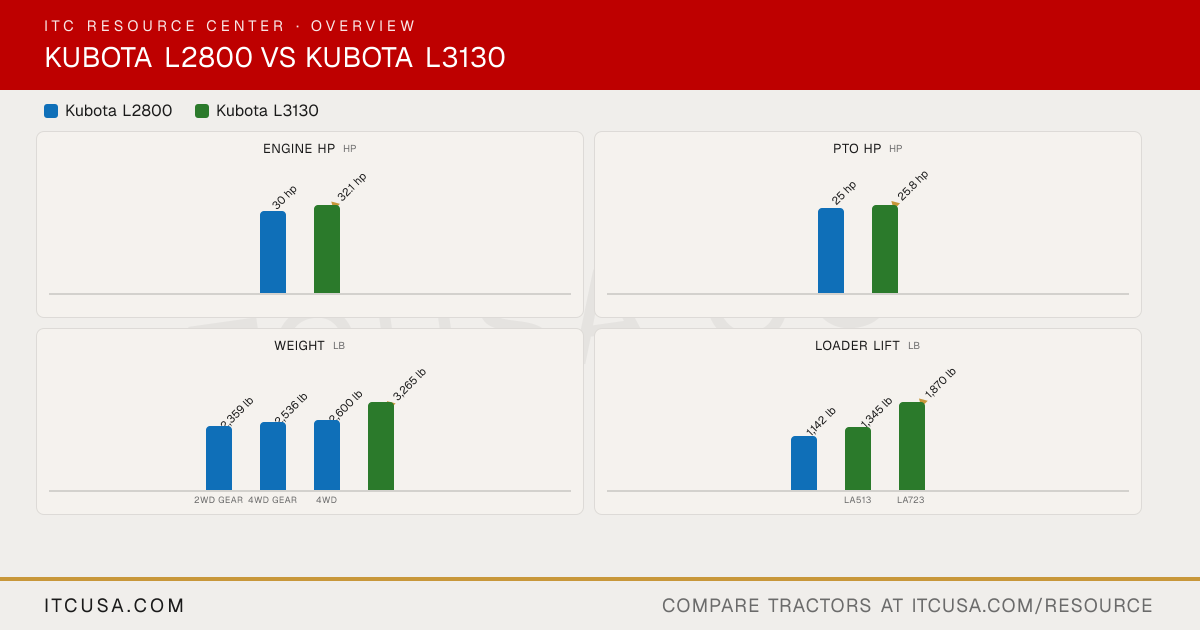

The headline numbers at a glance.

Kubota L2800Kubota L3130

Engine HPhp

30 hp

▲32.1 hp

PTO HPhp

25 hp

▲25.8 hp

Weightlb

2,359 lb

2,536 lb

2,600 lb

▲3,265 lb

2WD gear4WD gear4WD

Loader Liftlb

1,142 lb

1,345 lb

▲1,870 lb

LA513LA723

3-Pt Lift (24 in)lb

1,435 lb

▲2,650 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL2800	KubotaL3130


Engine Manufacturer	Kubota	Kubota
Engine Model	Not Published	Not Published
Engine Type	Not Published	Not Published
No. of Cylinders	3	3
Displacement	91.5 in³	91.5 in³
Rated Engine Speed	2800 rpm	Not Published
Engine Power (Gross)	30 hp	32.1 hp
PTO Power	F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp	25.8 hp
Engine Emissions Constraints	Tier 2	Not Published
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Indirect injection (E-TVCS)	Indirect injection
Alternator	40 A, 12 V	Not Published

Pump Type	Not Published	Single pump (position-control)
Implement Flow	6.5 gpm	8.3 gpm
Steering Flow	4.0 gpm	4.9 gpm
Total Hydraulic Flow	10.5 gpm (6.5 + 4.0, computed)	13.2 gpm
Overall Hydraulic Pump Flow	Not Published	8.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3	3

Fuel Tank Capacity	9.0 gal	10.6 gal
Coolant Capacity	Not Published	6.3 qt
Crankcase Capacity	Not Published	6.0 qt
Transmission / Hydraulic System Capacity	7.3 gal	11.1 gal
Front Axle Fluid Capacity	4.8 qt	Not Published

PTO Type	F (2WD gear), DT (4WD gear): transmission-driven, live-continuous running; HST (4WD): live-continuous with overrunning clutch	Independent, hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional mid-PTO, independent, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1998 lb	3750 lb (at lift points)
Hitch Lift Capacity (at 24”)	1435 lb	2650 lb
Lift Control Type	Position control	Position control (with optional draft control)

Transmission Type	Not Published	F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option)
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range	8F/8R (16F/16R with creep option)
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph	Not Published
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph	Not Published
Clutch	F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock standard	Not Published

Frame Type	Two-post ROPS (foldable ROPS optional)	Not Published
Steering	Integral type power steering	Hydrostatic power steering
Brakes	Wet disc type	Wet disk type
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (w/o 3P) (without 3-point hitch)	119.1 in (without 3P) (without 3-point hitch)
Overall Width	51.4 in	56.3 in (minimum tread)
Wheelbase	F (2WD): 63.4 in; DT (4WD), HST (4WD): 63.3 in	71.1 in
Ground Clearance	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in	14.6 in
Min. Turn Radius without Brakes	F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (w/brake) (with brake applied)	8.9 ft (w/brake) (with brake applied)
Height to Top of ROPS	85.0 in	88.8 in (with ROPS)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	F (2WD gear): 2359 lb; DT (4WD gear): 2536 lb; HST (4WD): 2600 lb	3265 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear	Standard Front: 7-16; Rear: 12.4-24
R1 Agricultural - Front	F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16	7-16
R1 Agricultural - Rear	11.2-24	12.4-24
R3 Turf - Front	2WD: 23x8.50-12; 4WD: 25x8.50-14	Not Published
R3 Turf - Rear	13.6-16	Not Published
R4 Industrial - Front	27x8.50-15 (4WD)	Not Published
R4 Industrial - Rear	15-19.5 R4 (4WD)	Not Published

Quick Attach Loader System	Not Published	LA513 and LA723 loaders offered
Loader Model	LA463	LA513; LA723
Loader Lift Height	LA463: 95.3 in	LA513: 96.5 in; LA723: 102.4 in
Loader Lift Capacity (Full Height)	LA463: 1142 lb	LA513: 1345 lb; LA723: 1870 lb
Loader Breakout Force	LA463: 1858 lbf (at 19.7 in) (19.7 in forward of pivot pin)	LA513: 2160 lbf (at 19.7 in); LA723: 2605 lbf (at 19.7 in) (19.7 in forward of pivot pin)

Warranty Length & Coverage	Not Published	Not Published
