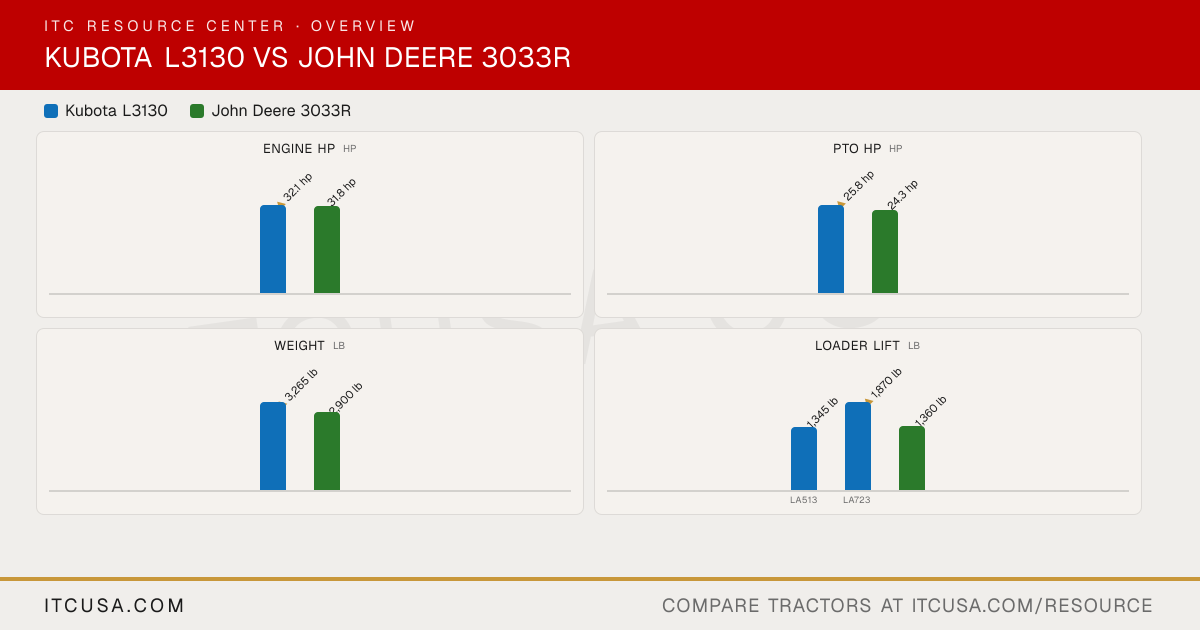

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model Not Published 3TNV88C-MJT Engine Type Not Published Diesel, turbocharged No. of Cylinders 3 3 Displacement 91.5 in³ 97.6 in³ Rated Engine Speed Not Published 2600 rpm Engine Power (Gross) 32.1 hp 31.8 hp PTO Power 25.8 hp 24.3 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Water pump Air Cleaner Not Published Dry type with safety element Fuel System Indirect injection High pressure common rail direct injection (HPCR) Alternator Not Published 75 A, 12 V ▶ HydraulicsPump Type Single pump (position-control) Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston Implement Flow 8.3 gpm 8.6 gpm Steering Flow 4.9 gpm 5.9 gpm Total Hydraulic Flow 13.2 gpm 14.4 gpm Overall Hydraulic Pump Flow 8.3 gpm 14.4 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 3 Up to 6 rear remotes ▶ Fluid CapacityFuel Tank Capacity 10.6 gal Open station: 13.5 gal; Cab: 11.8 gal Coolant Capacity 6.3 qt 1.4 gal Crankcase Capacity 6.0 qt 1.1 gal Transmission / Hydraulic System Capacity 11.1 gal 6.8 gal Front Axle Fluid Capacity Not Published 1.3 gal ▶ PTO & HitchPTO Type Independent, hydraulic clutch Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional mid-PTO, independent, 2000 rpm Optional (2100 rpm) Category, 3-Point Hitch Category I Limited Category I Hitch Lift Capacity 3750 lb (at lift points) 2530 lb at hitch ball Hitch Lift Capacity (at 24”) 2650 lb 2,194 lb at 24 in behind link arms Lift Control Type Position control (with optional draft control) Position control ▶ Transmission & DrivetrainTransmission Type F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option) three-range, infinitely variable No. of Speeds 8F/8R (16F/16R with creep option) infinite in 3 ranges Max Travel Speed (Forward) Not Published 18.50 mph Max Travel Speed (Reverse) Not Published 18.50 mph Clutch Dry type single stage Not Applicable Differential Lock & Limited Slip Options Not Published Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Not Published Foldable ROPS; cab or open station configurations available Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disk type Multi-plate wet disk Seat Suspension & Adjustability Not Published Standard seat: height/level/fore-aft adjustments; Deluxe seat: weight (air pressure) & fore-aft adjustments Front Axle Type Not Published Mechanical front wheel drive (MFWD) Front Axle Rating Not Published 3196 lb Drawbar Capacity Not Published 899 lbf ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 119.1 in (without 3P) (without 3-point hitch) 120.2 in Overall Width 56.3 in (minimum tread) 69.1 in Wheelbase 71.1 in 68.0 in Ground Clearance 14.6 in 12.2 in Min. Turn Radius without Brakes 8.9 ft (w/brake) (with brake applied) 8.8 ft (2.68 m, MFWD off) Height to Top of ROPS 88.8 in (with ROPS) 93.3 in Height to Top of ROPS (folded) Not Published 72.0 in Height to Top of Cab Model Not Published 85.0 in ▶ WeightTractor Weight (Base) 3265 lb (with ROPS) 2900 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard Front: 7-16; Rear: 12.4-24 R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 7-16 7-14 R1 Agricultural - Rear 12.4-24 11.2-24 R3 Turf - Front Not Published 27X8.50-15 R3 Turf - Rear Not Published 41X14-20 R4 Industrial - Front Not Published 25X8.5-14 or 27X8.5-15 R4 Industrial - Rear Not Published 15-19.5 or 43X16-20 ▶ Loader & AttachmentsQuick Attach Loader System LA513 and LA723 loaders offered Quik-Park mounting system Loader Model LA513; LA723 H160 Loader Lift Height LA513: 96.5 in; LA723: 102.4 in 90 in Loader Lift Capacity (Full Height) LA513: 1345 lb; LA723: 1870 lb 1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot Loader Breakout Force LA513: 2160 lbf (at 19.7 in); LA723: 2605 lbf (at 19.7 in) (19.7 in forward of pivot pin) 2,855 lb at pivot; 2,032 lb @ 19.7 in ▶ WarrantyWarranty Length & Coverage Not Published 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
