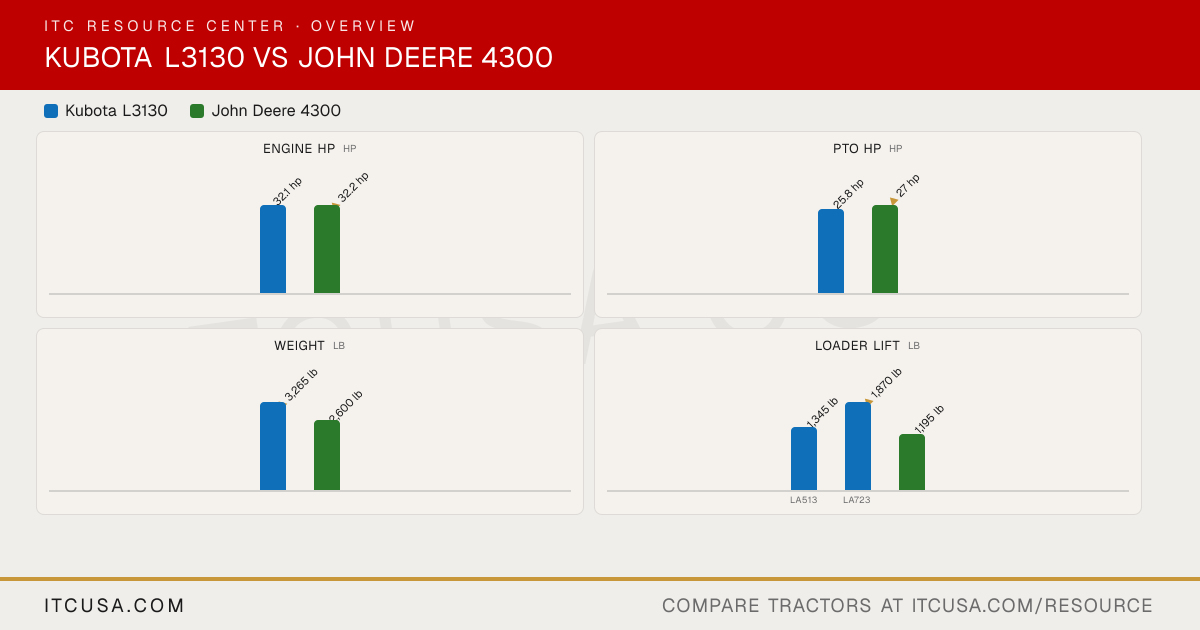

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model Not Published 3TNE84 Engine Type Not Published 3-cylinder liquid-cooled diesel, direct injection No. of Cylinders 3 3 Displacement 91.5 in³ 91.3 in³ Rated Engine Speed Not Published 2700 rpm Engine Power (Gross) 32.1 hp 32.2 hp PTO Power 25.8 hp 27 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Dry type with safety element Fuel System Indirect injection Direct injection, self bleeding, in-line fuel pump with electric shutoff Alternator Not Published 40 A ▶ HydraulicsPump Type Single pump (position-control) Dual gear pump Implement Flow 8.3 gpm 8.3 gpm Steering Flow 4.9 gpm 5.0 gpm Total Hydraulic Flow 13.2 gpm 13.3 gpm Overall Hydraulic Pump Flow 8.3 gpm 13.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves 3 Not Published ▶ Fluid CapacityFuel Tank Capacity 10.6 gal 10.0 gal Coolant Capacity 6.3 qt 6.1 qt Crankcase Capacity 6.0 qt 4.5 qt Transmission / Hydraulic System Capacity 11.1 gal 6.3 gal (gear); 6.8 gal (hydrostatic) Front Axle Fluid Capacity Not Published 4.7 qt ▶ PTO & HitchPTO Type Independent, hydraulic clutch Independent, wet disk clutch and brake PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional mid-PTO, independent, 2000 rpm Available, 2100 rpm Category, 3-Point Hitch Category I Category 1 Hitch Lift Capacity 3750 lb (at lift points) Not Published Hitch Lift Capacity (at 24”) 2650 lb 2200 lb Lift Control Type Position control (with optional draft control) Not Published ▶ Transmission & DrivetrainTransmission Type F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option) SyncShift 9F/3R gear (2WD and 4WD); SyncReverser 12F/12R (4WD only); hydrostatic 3-range (2WD and 4WD) No. of Speeds 8F/8R (16F/16R with creep option) 9 forward, 3 reverse (SyncShift); 12 forward, 12 reverse (SyncReverser); infinite forward and reverse, 3 ranges (hydrostatic) Max Travel Speed (Forward) Not Published 15.6 mph (SyncShift); 15.6 mph (SyncReverser); 15.5 mph (hydrostatic) Max Travel Speed (Reverse) Not Published 7.7 mph (SyncShift); 15.5 mph (hydrostatic) Clutch Dry type single stage One multi-disk wet clutch, 4.88 in (SyncShift); two multi-disk wet clutches, 4.88 in (SyncReverser) Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post fixed ROPS standard, folding ROPS optional; two- or four-wheel drive Steering Hydrostatic power steering Power steering, cylinder-assisted Brakes Wet disk type Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published 2WD standard; mechanical front wheel drive (MFWD) optional, all ranges Front Axle Rating Not Published 1588 to 3197 lb Drawbar Capacity Not Published 562 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 119.1 in (without 3P) (without 3-point hitch) 117 in Overall Width 56.3 in (minimum tread) 50.0 in (minimum); 66.7 in (maximum) Wheelbase 71.1 in 68.0 in Ground Clearance 14.6 in 13.4 in (rear axle) Min. Turn Radius without Brakes 8.9 ft (w/brake) (with brake applied) Not Published Height to Top of ROPS 88.8 in (with ROPS) 84.0 in (standard ROPS); 90.0 in (folding ROPS) Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3265 lb (with ROPS) 2600 lb (2WD); 2900 lb (MFWD) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard Front: 7-16; Rear: 12.4-24 Front: 5.00-15 F2 (2WD), 7.00-14 or 7.00-16 R1, 25x8.50-14 R4, 27x8.50-15 R3, 25-10.50LLx15 golf; rear: 11.2-24 or 12.4-24 R1, 11.2-24 or 41x14.00-20 R3, 15.00-19.5 R4, 41LLx18.00-16 golf R1 Agricultural - Front 7-16 5.00-15 (2WD, F2); 7.00-14 or 7.00-16 (MFWD) R1 Agricultural - Rear 12.4-24 11.2-24 or 12.4-24 R3 Turf - Front Not Published 27x8.50-15 (2WD); 7.00-14 (MFWD) R3 Turf - Rear Not Published 41x14.00-20 or 11.2-24 R4 Industrial - Front Not Published 25x8.50-14 R4 Industrial - Rear Not Published 15.00-19.5 ▶ Loader & AttachmentsQuick Attach Loader System LA513 and LA723 loaders offered Not Published Loader Model LA513; LA723 420; 430 Loader Lift Height LA513: 96.5 in; LA723: 102.4 in 420: 87.6 in; 430: 101.4 in Loader Lift Capacity (Full Height) LA513: 1345 lb; LA723: 1870 lb 420: 1195 lb; 430: 1258 lb (to max height at pivot point) Loader Breakout Force LA513: 2160 lbf (at 19.7 in); LA723: 2605 lbf (at 19.7 in) (19.7 in forward of pivot pin) 420: 2693 lbf; 430: 3299 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
