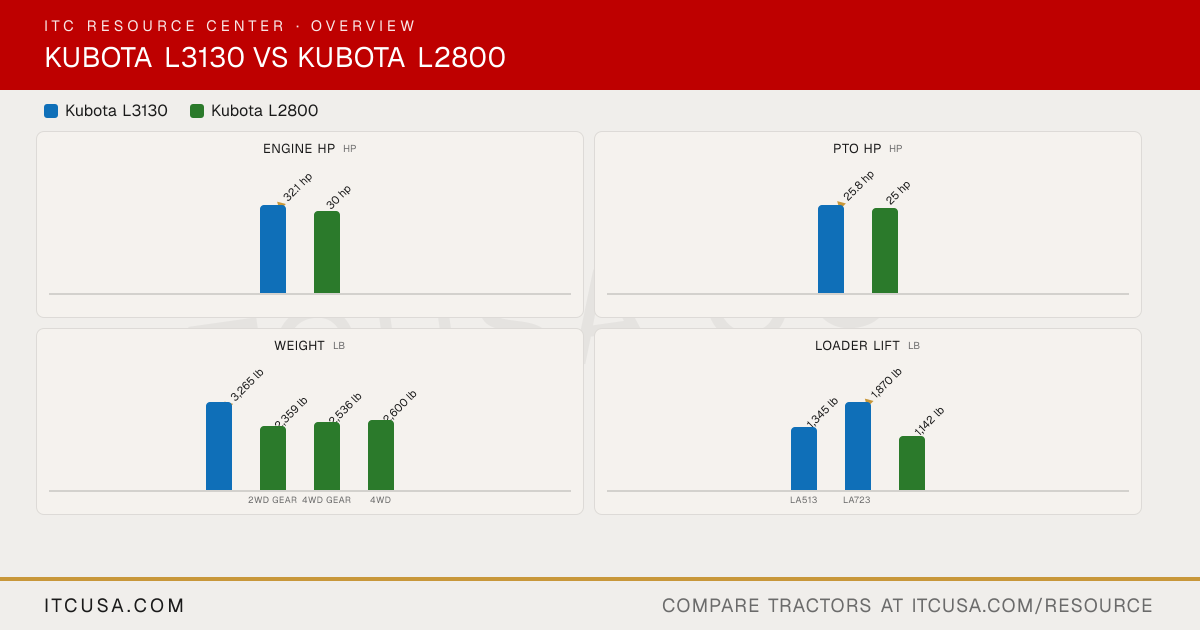

▶ EngineEngine Manufacturer Kubota Kubota Engine Model Not Published Not Published Engine Type Not Published Not Published No. of Cylinders 3 3 Displacement 91.5 in³ 91.5 in³ Rated Engine Speed Not Published 2800 rpm Engine Power (Gross) 32.1 hp 30 hp PTO Power 25.8 hp F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Not Published Fuel System Indirect injection Indirect injection Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Single pump (position-control) Not Published Implement Flow 8.3 gpm 6.5 gpm Steering Flow 4.9 gpm 4.0 gpm Total Hydraulic Flow 13.2 gpm 10.5 gpm (6.5 + 4.0, computed) Overall Hydraulic Pump Flow 13.2 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 3 Up to 3 ▶ Fluid CapacityFuel Tank Capacity 10.6 gal 9.0 gal Coolant Capacity 6.3 qt Not Published Crankcase Capacity 6.0 qt Not Published Transmission / Hydraulic System Capacity 11.1 gal F (2WD): 7.1 gal; DT (4WD): 7.3 gal; HST (4WD): 6.2 gal Front Axle Fluid Capacity Not Published 4.8 qt ▶ PTO & HitchPTO Type Independent, hydraulic clutch F (2WD gear), DT (4WD gear): transmission-driven with overrunning clutch; HST (4WD): live-continuous with overrunning clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional mid-PTO, independent, 2000 rpm Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,750 lb (at lift points) 1,998 lb Hitch Lift Capacity (at 24”) 2,650 lb 1,435 lb Lift Control Type Position control (with optional draft control) Position control ▶ Transmission & DrivetrainTransmission Type F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option) Not Published No. of Speeds 8F/8R (16F/16R with creep option) F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range Max Travel Speed (Forward) Not Published F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph Max Travel Speed (Reverse) Not Published F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph Clutch Dry type single stage F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage Differential Lock & Limited Slip Options Not Published Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Foldable ROPS (standard on all models) Steering Hydrostatic power steering Integral type power steering Brakes Wet disk type Wet disc type Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 56.3 in (minimum tread) 51.4 in Wheelbase 71.1 in 63.3 in Ground Clearance 14.6 in F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (with brake applied) Height to Top of ROPS 88.8 in (with ROPS) 85.0 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 119.1 in (without 3-point hitch) F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 3,265 lb (with ROPS) F (2WD gear): 2,359 lb; DT (4WD gear): 2,536 lb; HST (4WD): 2,600 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard Front: 7-16; Rear: 12.4-24 F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear R1 Agricultural - Front 7-16 F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16 R1 Agricultural - Rear 12.4-24 11.2-24 R3 Turf - Front Not Published 2WD: 23x8.50-12; 4WD: 25x8.50-14 R3 Turf - Rear Not Published 13.6-16 R4 Industrial - Front Not Published 27x8.50-15 (4WD) R4 Industrial - Rear Not Published 15-19.5 R4 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System LA513 and LA723 loaders offered Not Published Loader Model LA513; LA723 LA463 Loader Lift Height LA513: 96.5 in; LA723: 102.4 in LA463: 95.3 in (at pivot pin) Loader Lift Capacity (Full Height) LA513: 1,345 lb; LA723: 1,870 lb LA463: 1,142 lb (at pivot pin) Loader Breakout Force LA513: 2,160 lbf (at 19.7 in); LA723: 2,605 lbf (at 19.7 in) (19.7 in forward of pivot pin) LA463: 1,858 lbf (at 19.7 in) (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
