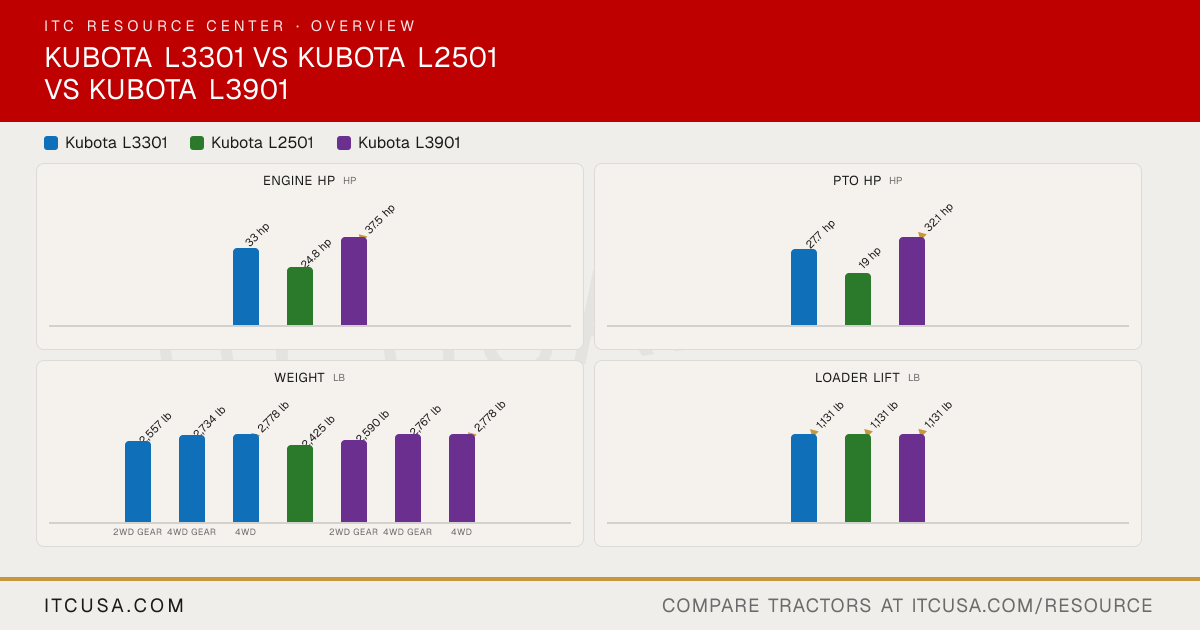

▶ EngineEngine Manufacturer Kubota Kubota Kubota Engine Model F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2 D1703-M-DI-E4 F (2WD gear), DT (4WD gear): D1803-CR-E4-LB3; HST (4WD): D1803-CR-E4-LB4 Engine Type Liquid-cooled, 3-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection Direct injection, vertical, water-cooled, 4-cycle diesel Liquid-cooled, 3-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection No. of Cylinders 3 3 3 Displacement 111.4 in³ 100.47 in³ 111.4 in³ Rated Engine Speed 2700 rpm 2200 rpm 2700 rpm Engine Power (Gross) 33 hp 24.8 hp 37.5 hp PTO Power F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp 19 hp F (2WD gear), DT (4WD gear): 32.1 hp; HST (4WD): 30.6 hp Engine Emissions Constraints Tier 4 Tier 4 Tier 4 Cooling System Type Liquid-cooled, water with pressurized radiator Water-cooled Liquid-cooled, water with pressurized radiator Air Cleaner Dry paper single element Dry paper single element (dual optional) Dry paper single element Fuel System Common rail (CRS) direct injection, electronic fuel injection Direct injection Common rail (CRS) direct injection, electronic fuel injection Alternator 40 A, 12 V 40 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Open center tandem pump, gear type Open center tandem pump, gear type Open center tandem pump, gear type Implement Flow 6.3 gpm 5.15 gpm 6.3 gpm Steering Flow 3.8 gpm 3.13 gpm 3.8 gpm Total Hydraulic Flow 10.1 gpm 8.26 gpm 10.1 gpm Overall Hydraulic Pump Flow 10.1 gpm 8.26 gpm 10.1 gpm Hydraulic System Type Open center Open center Open center Rear Remote Hydraulic Flow Not Published Not Published Not Published No. of Standard Remote Valves Not Published Not Published Not Published No. of Optional Remote Valves Up to 3 (self canceling detent valve or float detent valve options) Up to 3 (self canceling detent valve or float detent valve options) Up to 3 (self canceling detent valve or float detent valve options) ▶ Fluid CapacityFuel Tank Capacity 11.1 gal 10.0 gal 11.1 gal Coolant Capacity 6.3 qt 6.3 qt 6.3 qt Crankcase Capacity 7.1 qt 6.0 qt 7.1 qt Transmission / Hydraulic System Capacity F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal HST (4WD): 6.2 gal; DT (2WD): 7.1 gal; DT (4WD): 7.3 gal F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal Front Axle Fluid Capacity 4.8 qt 4.8 qt 4.8 qt ▶ PTO & HitchPTO Type Live independent PTO with hydraulic clutch Live-continuous running Live independent PTO with hydraulic clutch PTO Rear 540 rpm 540 rpm 540 rpm Mid-PTO Availability No mid-PTO offered No mid-PTO offered No mid-PTO offered Category, 3-Point Hitch Category I Category I Category I Hitch Lift Capacity 1,998 lb 1,918 lb 1,998 lb Hitch Lift Capacity (at 24”) 1,433 lb 1,389 lb 1,433 lb Lift Control Type Position control Position control Position control ▶ Transmission & DrivetrainTransmission Type F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range Hydrostatic transmission (3-range) F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range No. of Speeds F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range 3-range F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range Max Travel Speed (Forward) F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph Max Travel Speed (Reverse) F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph DT (2WD), DT (4WD): 3.9 mph; HST (4WD): 10.3 mph F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph Clutch Dry type single stage Not Applicable F (2WD gear), DT (4WD gear): Dry type dual stage; HST (4WD): Dry type single stage Differential Lock & Limited Slip Options Rear differential lock standard Rear differential lock standard Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS (factory certified) with retractable seat belt Not Published Two-post foldable ROPS (factory certified) with retractable seat belt Steering Integral power steering Integral type power steering Integral power steering Brakes Mechanical wet disc type, pedals can be locked together Wet disc type Mechanical wet disc type, pedals can be locked together Seat Suspension & Adjustability Not Published Suspension seat with fore/aft travel adjustment and suspension tension adjustment Not Published Front Axle Type F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing Bevel gear front axle, non-adjustable tread spacing F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing Front Axle Rating 2,865 lb (at 41.3 in tread, 2WD and 4WD models) Not Published 2,865 lb (at 41.3 in tread, 2WD and 4WD models) Drawbar Capacity 730 lb 730 lb 730 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in Not Published F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in Overall Width 55.1 in 55.1 in 55.1 in Wheelbase 63.3 in 63.3 in 63.3 in Ground Clearance F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in 13.4 in F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in Min. Turn Radius without Brakes F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft 8.2 ft (with brake applied) F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft Height to Top of ROPS 91.7 in 91.7 in 91.7 in Height to Top of ROPS (folded) Not Published Not Published Not Published Height to Top of Cab Model Not Published Not Published Not Published ▶ WeightTractor Weight (Base) F (2WD gear): 2,557 lb; DT (4WD gear): 2,734 lb; HST (4WD): 2,778 lb 2,425 lb (2WD gear); 2,601 lb (4WD gear); 2,623 lb (4WD HST) F (2WD gear): 2,590 lb; DT (4WD gear): 2,767 lb; HST (4WD): 2,778 lb Weight with ROPS and Loader Not Published Not Published Not Published Weight with Cab and Loader Not Published Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) R1 Agricultural; R4 Industrial R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) R1 Agricultural - Front F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16 7.2-16 F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16 R1 Agricultural - Rear 11.2-24 11.2-24 11.2-24 R3 Turf - Front F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14 Not Published F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14 R3 Turf - Rear 13.6-16 Not Published 13.6-16 R4 Industrial - Front 27x8.5-15 (4WD) 27X8.50-15 27x8.5-15 (4WD) R4 Industrial - Rear 15-19.5 (4WD) 15-19.5 15-19.5 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System LA525: 2-Lever Quick Coupler, no tools required to attach and detach loader Front Loader (LA525 - 2 Lever Quick Coupler) LA525: 2-Lever Quick Coupler, no tools required to attach and detach loader Loader Model LA525 LA525 LA525 Loader Lift Height LA525: 94.3 in 94.3 in LA525: 94.3 in Loader Lift Capacity (Full Height) LA525: 1,131 lb 1,131 lb LA525: 1,131 lb Loader Breakout Force LA525: 2,462 lbf 2,373 lbf LA525: 2,462 lbf ▶ WarrantyWarranty Length & Coverage 24 months or 1500 hours (general) Basic: 24 months or 1,500 hours; limited powertrain: 72 months or 2,000 hours; commercial use limited powertrain: 36 months or 2,000 hours 24 months or 1500 hours (general) ▶ ITC Company AccessoriesAccessories that fit None tagged yet None tagged yet
