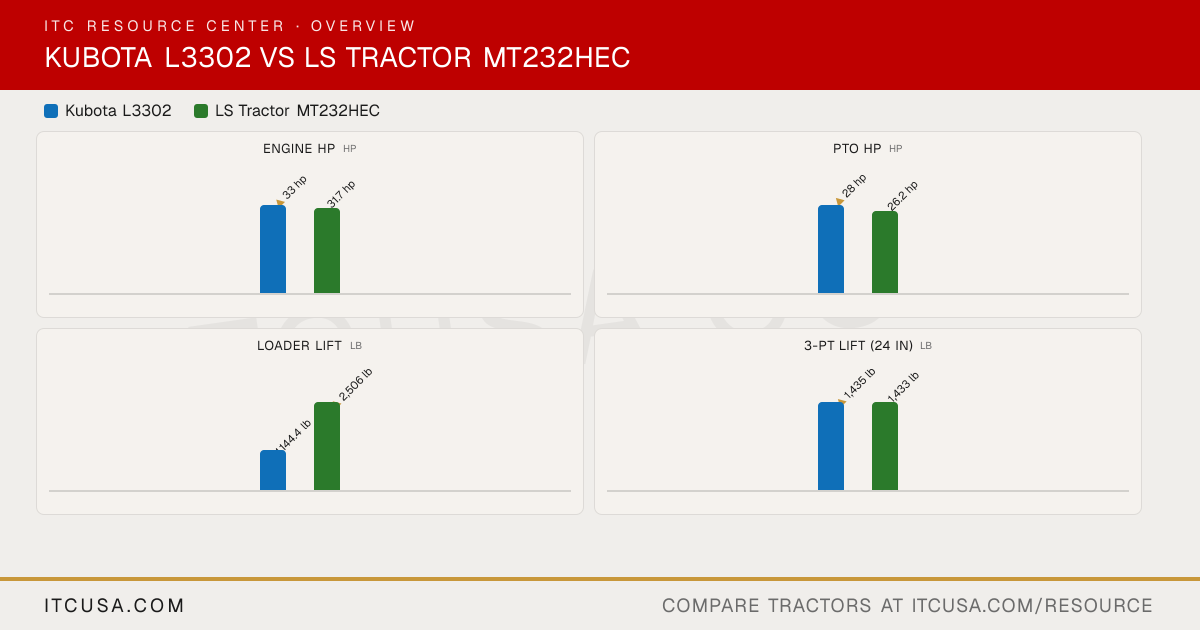

Kubota L3302 vs LS Tractor MT232HEC | Side-by-side comparison

ITC Company

Good things come to those who wait.


PTO Power	DT (4WD): 28.0 hp (20.9 kW); HST (4WD): 26.1 hp (19.5 kW)	26.2 hp (19.5 kW)
Alternator	Not Published	12 V, 55 A
Air Cleaner	Not Published	Dry
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	3-cylinder, Liquid-cooled, Diesel, NA, IDI
Fuel System	Direct injection	IDI
Displacement	111.4 in³ (1826 cc)	100.2 in³ (1642 cc)
No. of Cylinders	3	3
Rated Engine Speed	2700 rpm	2,600 rpm
Cooling System Type	Water-cooled	Liquid-cooled
Engine Manufacturer	Kubota	YANMAR
Engine Emissions Constraints	Not Published	Tier 4
Engine Power (Gross vs. Net HP)	Gross: 33.0 hp (24.6 kW); Net: 31.8 hp (23.7 kW)	Gross: 31.7 hp (23.6 kW)

Tractor Weight with Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
Weight with ROPS and Loader	Not Published	Not Published

Pump Type	Not Published	Gear pump
Steering Flow	14.5 L/min (3.8 gpm)	18.9 L/min (5.0 gpm)
Implement Flow	23.9 L/min (6.3 gpm)	25.4 L/min (6.7 gpm)
Total Hydraulic Flow	38.4 L/min (10.1 gpm)	44.3 L/min (11.7 gpm)
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	38.4 L/min (10.1 gpm)	44.3 L/min (11.7 gpm)
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1

R3 Turf - Rear	13.6-16	41X14.00-20
R3 Turf - Front	25X8.50-14	25X8.50-14
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	43X16.00-20
R4 Industrial - Front	27X8.50-15	27X8.50-15
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7.2-16	7-14

PTO Rear	540 rpm	540 rpm
PTO Type	DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1998 lb (906 kg)	1808 lb (820 kg)
Mid-PTO Availability	Not Published	Available (option)
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity (at 24”)	1435 lb (651 kg)	1433 lb (650 kg)
Rear 3-Point Hitch Lift Capacity	1998 lb (906 kg)	1808 lb (820 kg)

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	13.5 gal (51 L)	11.4 gal (43.2 L)
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	94.3 in (2394 mm)	94.3 in (2395 mm)
Loader Breakout Force	Not Published	3,723 lb
Price for Backhoe Option	BH77: $9,803 MSRP	Not Published
Price for Mid-Mount Mower	Not Applicable	Not Published
Quick Attach Loader System	Front Loader (LA526 — 2 Lever Quick Coupler (OPT))	LL3003: ISO 24410 Quick Attaching Coupler
Loader Lift Capacity (Full Height)	1144.4 lb (519 kg)	2,506 lb

Clutch	DT (4WD): Dry type single stage; HST (4WD): Not Applicable	Not Applicable
No. of Speeds	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	3 ranges
Transmission Type	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	Hydrostatic Drive
Max Travel Speed (Forward)	DT (4WD): 13.2 mph (21.2 km/h); HST (4WD): 14.1 mph (22.7 km/h)	Not Published
Max Travel Speed (Reverse)	DT (4WD): 13.2 mph (21.2 km/h); HST (4WD): 12.7 mph (20.5 km/h)	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical differential lock (pedal)

Brakes	Mechanical, wet disc type	Wet, Multi-disc
Steering	Integral type power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	63.4 in (1610 mm)	69 in (1753 mm)
Overall Width	55.1 in (1400 mm)	66 in (1676 mm)
Ground Clearance	13.4 in (340 mm)	Not Published
Height to Top of ROPS	91.7 in (2330 mm)	Not Applicable
Height to Top of Cab Model	Not Applicable	90 in (2286 mm)
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	11.5 ft (3.5 m)
Overall Length with 3-Point Hitch	108.5 in (2755 mm)	125 in (3175 mm)

Financing Options	Check with your local dealer for the best offer.	0% financing up to 96 months on select models; cash rebate incentive (offers vary)
Base Price with Loader	DT (4WD): Tractor Starting MSRP $23,941 + LA526 $6,227 = $30,168 MSRP; HST (4WD): Tractor Starting MSRP $25,298 + LA526 $6,227 = $31,525 MSRP	Not Published
Warranty Length & Coverage	Non-Commercial Home & Residential Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty
Base Price with Loader + Cab	Not Applicable	Not Published

Spec sheet sources	[1] kubotausa.com [2] kubotausa.com [3] kubotausa.com	[1] lstractorusa.com [2] lstractorusa.com [3] lstractorusa.com [4] lstractorusa.com [5] lstractorusa.com [6] lstractorusa.com [7] lstractorusa.com

PTO Power

DT (4WD): 28.0 hp (20.9 kW); HST (4WD): 26.1 hp (19.5 kW)

26.2 hp (19.5 kW)

Alternator

Not Published

12 V, 55 A

Air Cleaner

Not Published

Dry

Engine Type

Direct injection, vertical, water-cooled 4-cycle, diesel

3-cylinder, Liquid-cooled, Diesel, NA, IDI

Fuel System

Direct injection

IDI

Displacement

111.4 in³ (1826 cc)

100.2 in³ (1642 cc)

No. of Cylinders

Rated Engine Speed

2700 rpm

2,600 rpm

Cooling System Type

Water-cooled

Liquid-cooled

Engine Manufacturer

Kubota

YANMAR

Engine Emissions Constraints

Not Published

Tier 4

Engine Power (Gross vs. Net HP)

Gross: 33.0 hp (24.6 kW); Net: 31.8 hp (23.7 kW)

Gross: 31.7 hp (23.6 kW)

Tractor Weight with Loader

Not Published

Weight with Cab and Loader

Not Applicable

Not Published

Weight with ROPS and Loader

Not Published

Pump Type

Not Published

Gear pump

Steering Flow

14.5 L/min (3.8 gpm)

18.9 L/min (5.0 gpm)

Implement Flow

23.9 L/min (6.3 gpm)

25.4 L/min (6.7 gpm)

Total Hydraulic Flow

38.4 L/min (10.1 gpm)

44.3 L/min (11.7 gpm)

Hydraulic System Type

Not Published

Open center

Rear Remote Hydraulic Flow

Not Published

Overall Hydraulic Pump Flow

38.4 L/min (10.1 gpm)

44.3 L/min (11.7 gpm)

No. of Optional Remote Valves

Not Published

No. of Standard Remote Valves

Not Published

R3 Turf - Rear

13.6-16

41X14.00-20

R3 Turf - Front

25X8.50-14

Tire Size & Options

R1 Agricultural; R3 Turf; R4 Industrial

R1 Agricultural, R3 Turf, R4 Industrial

R4 Industrial - Rear

15-19.5

43X16.00-20

R4 Industrial - Front

27X8.50-15

R1 Agricultural - Rear

11.2-24

R1 Agricultural - Front

7.2-16

7-14

PTO Rear

540 rpm

PTO Type

DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch

Independent

Lift Control Type

Position control

Hitch Lift Capacity

1998 lb (906 kg)

1808 lb (820 kg)

Mid-PTO Availability

Not Published

Available (option)

Category, 3-Point Hitch

SAE Category I

Category I

Hitch Lift Capacity (at 24”)

1435 lb (651 kg)

1433 lb (650 kg)

Rear 3-Point Hitch Lift Capacity

1998 lb (906 kg)

1808 lb (820 kg)

Coolant Capacity

Not Published

Crankcase Capacity

Not Published

Fuel Tank Capacity

13.5 gal (51 L)

11.4 gal (43.2 L)

Front Axle Fluid Capacity

Not Published

Transmission / Hydraulic System Capacity

Not Published

Loader Lift Height

94.3 in (2394 mm)

94.3 in (2395 mm)

Loader Breakout Force

Not Published

3,723 lb

Price for Backhoe Option

BH77: $9,803 MSRP

Not Published

Price for Mid-Mount Mower

Not Applicable

Not Published

Quick Attach Loader System

Front Loader (LA526 — 2 Lever Quick Coupler (OPT))

LL3003: ISO 24410 Quick Attaching Coupler

Loader Lift Capacity (Full Height)

1144.4 lb (519 kg)

2,506 lb

Clutch

DT (4WD): Dry type single stage; HST (4WD): Not Applicable

Not Applicable

No. of Speeds

DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range

3 ranges

Transmission Type

DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)

Hydrostatic Drive

Max Travel Speed (Forward)

DT (4WD): 13.2 mph (21.2 km/h); HST (4WD): 14.1 mph (22.7 km/h)

Not Published

Max Travel Speed (Reverse)

DT (4WD): 13.2 mph (21.2 km/h); HST (4WD): 12.7 mph (20.5 km/h)

Not Published

Differential Lock & Limited Slip Options

Not Published

Mechanical differential lock (pedal)

Brakes

Mechanical, wet disc type

Wet, Multi-disc

Steering

Integral type power steering

Hydrostatic power steering

Frame Type

Not Published

Front Axle Type

Not Published

Drawbar Capacity

Not Published

Front Axle Rating

Not Published

Seat Suspension & Adjustability

Not Published

Wheelbase

63.4 in (1610 mm)

69 in (1753 mm)

Overall Width

55.1 in (1400 mm)

66 in (1676 mm)

Ground Clearance

13.4 in (340 mm)

Not Published

Height to Top of ROPS

91.7 in (2330 mm)

Not Applicable

Height to Top of Cab Model

Not Applicable

90 in (2286 mm)

Height to Top of ROPS (folded)

Not Published

Not Applicable

Min. Turn Radius without Brakes

Not Published

11.5 ft (3.5 m)

Overall Length with 3-Point Hitch

108.5 in (2755 mm)

125 in (3175 mm)

Financing Options

Check with your local dealer for the best offer.

0% financing up to 96 months on select models; cash rebate incentive (offers vary)

Base Price with Loader

DT (4WD): Tractor Starting MSRP $23,941 + LA526 $6,227 = $30,168 MSRP; HST (4WD): Tractor Starting MSRP $25,298 + LA526 $6,227 = $31,525 MSRP

Not Published

Warranty Length & Coverage

Non-Commercial Home & Residential Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Base Price with Loader + Cab

Not Applicable

Not Published

Spec sheet sources

[1] kubotausa.com [2] kubotausa.com [3] kubotausa.com

[1] lstractorusa.com [2] lstractorusa.com [3] lstractorusa.com [4] lstractorusa.com [5] lstractorusa.com [6] lstractorusa.com [7] lstractorusa.com
