Compare Tractors

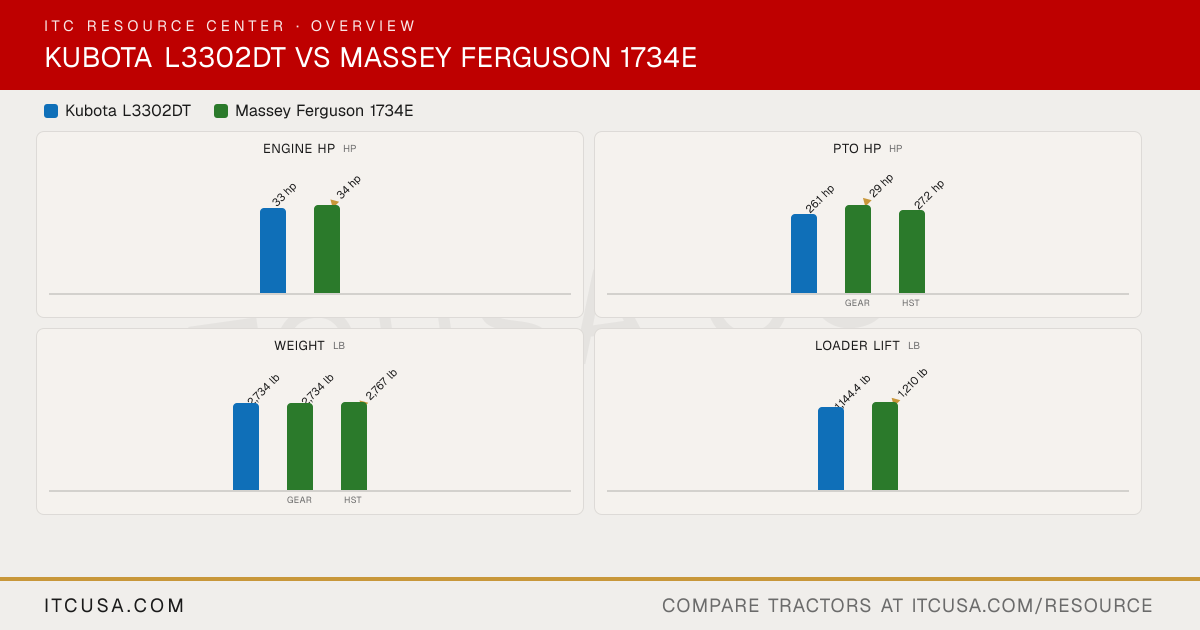

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL3302DT
Massey Ferguson1734E
Engine Manufacturer
Kubota
Shibaura
Engine Model
D1803-CR-E5
Shibaura N843T-F
Engine Type
Direct injection, vertical, water-cooled 4-cycle, diesel
3-cylinder diesel, liquid-cooled, turbocharged
No. of Cylinders
3
3
Displacement
111.4 in³
91.5 in³
Rated Engine Speed
2700 rpm
2600 rpm
Engine Power (Gross)
33 hp
34 hp
PTO Power
26.1 hp
Gear: 29 hp; HST: 27.2 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Water-cooled
Liquid-cooled
Air Cleaner
Dry type, single element
Not Published
Fuel System
Direct injection
Turbocharged, indirect low-pressure injection
Alternator
45 A, 12 V
Not Published
Pump Type
Not Published
Gear-type pump
Implement Flow
6.3 gpm
Not Published
Steering Flow
3.8 gpm
3.8 gpm
Total Hydraulic Flow
10.1 gpm (6.3 + 3.8, computed)
10.5 gpm
Overall Hydraulic Pump Flow
10.1 gpm (6.3 + 3.8, computed)
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
6.7 gpm
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
Up to 2
Fuel Tank Capacity
11.1 gal
10.0 gal
Coolant Capacity
6.3 qt
1.32 gal
Crankcase Capacity
7.1 qt
1.22 gal
Transmission / Hydraulic System Capacity
7.5 gal
10.04 gal
Front Axle Fluid Capacity
4.8 qt
1.48 gal
PTO Type
Transmission driven with overrunning clutch
Not Published
PTO Rear
540 rpm
540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
SAE Category I
Category I
Hitch Lift Capacity
1998 lb
2,205 lb
Hitch Lift Capacity (at 24”)
1435 lb
1,600 lb
Lift Control Type
Position control
Not Published
Transmission Type
Gear shift with synchronized shuttle
9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds
8 forward, 8 reverse
Gear: 9F / 3R; HST: 3-range infinite
Max Travel Speed (Forward)
13.2 mph
Not Published
Max Travel Speed (Reverse)
13.2 mph
Not Published
Clutch
Dry type single stage
Gear: dry single disc
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Mechanical engagement via heel pedal
Frame Type
Not Published
Not Published
Steering
Integral type power steering
Power steering
Brakes
Mechanical, wet disc type
Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type
Cast-iron front axle
Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
730 lb
Not Published
Overall Length with 3-Point Hitch
108.5 in (without 3-point hitch)
116.0 in (w/o 3-point linkage) (without 3-point hitch)
Overall Width
55.1 in
52.4 in
Wheelbase
63.4 in
65.9 in
Ground Clearance
13.4 in
Not Published
Min. Turn Radius without Brakes
8.2 ft (with brake applied)
Not Published
Height to Top of ROPS
91.7 in
97.6 in
Height to Top of ROPS (folded)
Not Published
63.8 in
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
2734 lb
Gear: 2,734 lb; HST: 2,767 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R3 Turf, R4 Industrial
R1 Agricultural - Front
7.2-16
Not Published
R1 Agricultural - Rear
11.2-24
Not Published
R3 Turf - Front
25X8.50-14
27x8.50-15
R3 Turf - Rear
13.6-16
38x14.00-20
R4 Industrial - Front
27X8.50-15
27x8.50-15
R4 Industrial - Rear
15-19.5
15x19.5
Quick Attach Loader System
Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
L105E: skid steer or pin-type implement attachments
Loader Model
LA526
L105E
Loader Lift Height
94.8 in
L105E: 95.7 in
Loader Lift Capacity (Full Height)
1144.4 lb
L105E: 1,210 lb
Loader Breakout Force
Not Published
L105E: 1,460 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
