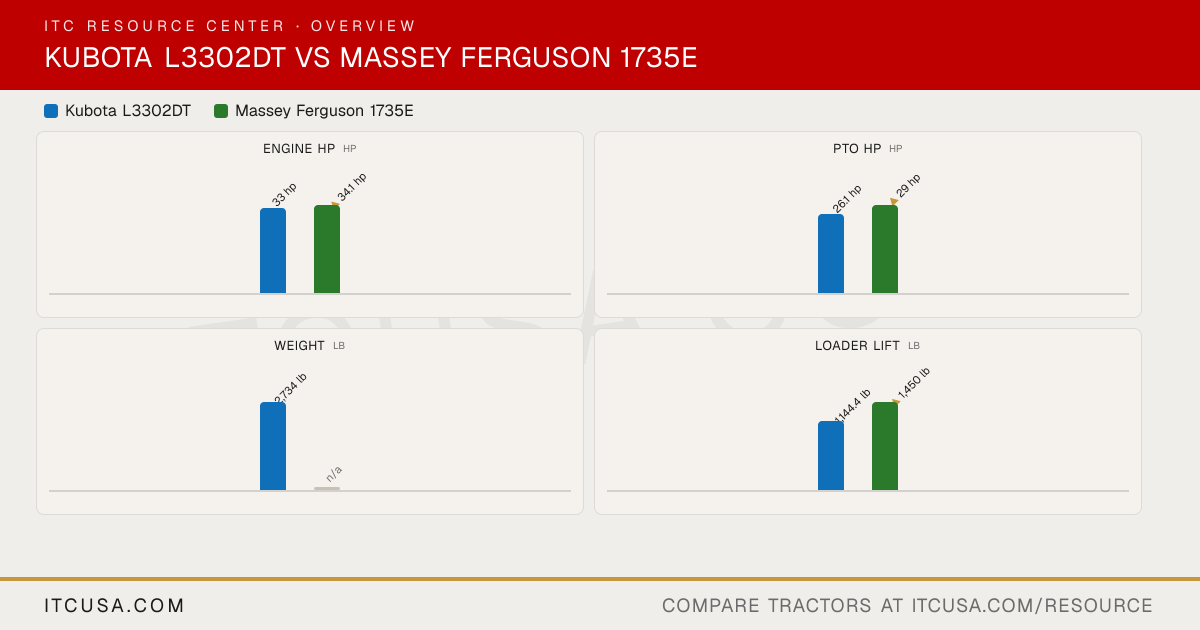

▶ EngineEngine Manufacturer Kubota Shibaura Engine Model D1803-CR-E5 Not Published Engine Type Direct injection, vertical, water-cooled 4-cycle, diesel 3-cylinder turbocharged diesel, liquid-cooled No. of Cylinders 3 3 Displacement 111.4 in³ 91.3 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 33 hp 34.1 hp PTO Power 26.1 hp 29 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry type, single element Dry Fuel System Direct injection Indirect injection Alternator 45 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Dual engine-driven gear pumps Implement Flow 6.3 gpm Not Published Steering Flow 3.8 gpm Not Published Total Hydraulic Flow 10.1 gpm (6.3 + 3.8, computed) 9.7 gpm Overall Hydraulic Pump Flow 10.1 gpm (6.3 + 3.8, computed) Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published 2 ▶ Fluid CapacityFuel Tank Capacity 11.1 gal Not Published Coolant Capacity 6.3 qt Not Published Crankcase Capacity 7.1 qt Not Published Transmission / Hydraulic System Capacity 7.5 gal Not Published Front Axle Fluid Capacity 4.8 qt Not Published ▶ PTO & HitchPTO Type Transmission driven with overrunning clutch 8x8 Synchro Shuttle: independent; HST: transmission driven PTO Rear 540 rpm 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch SAE Category I Category I Hitch Lift Capacity 1998 lb Not Published Hitch Lift Capacity (at 24”) 1435 lb 1,598 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Gear shift with synchronized shuttle 8 x 8 synchro shuttle or 3-range hydrostatic No. of Speeds 8 forward, 8 reverse 8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite Max Travel Speed (Forward) 13.2 mph Not Published Max Travel Speed (Reverse) 13.2 mph Not Published Clutch Dry type single stage Not Published Differential Lock & Limited Slip Options Rear differential lock, pedal operated Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Integral type power steering Power steering Brakes Mechanical, wet disc type Wet disc Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment and suspension tension adjustment Not Published Front Axle Type Cast-iron front axle Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 730 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 108.5 in (without 3-point hitch) Not Published Overall Width 55.1 in Not Published Wheelbase 63.4 in Not Published Ground Clearance 13.4 in Not Published Min. Turn Radius without Brakes 8.2 ft (with brake applied) Not Published Height to Top of ROPS 91.7 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2734 lb Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural, R4 Industrial R1 Agricultural - Front 7.2-16 7-16 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 25X8.50-14 Not Published R3 Turf - Rear 13.6-16 Not Published R4 Industrial - Front 27X8.50-15 27x8.50-15 R4 Industrial - Rear 15-19.5 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Front Loader (LA526 - 2 Lever Quick Coupler (OPT)) FLx2407: pin-on (skid steer quick attach optional) Loader Model LA526 FLx2407 Loader Lift Height 94.8 in FLx2407: 94.3 in Loader Lift Capacity (Full Height) 1144.4 lb FLx2407: 1,450 lb Loader Breakout Force Not Published FLx2407: 2,288 lb ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. 5-year powertrain warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
